+86 17858478788
 |
| Quantity: | |
|---|---|
12"-12",Dn10-Dn300.12.7mm-304.8mm
FOGO

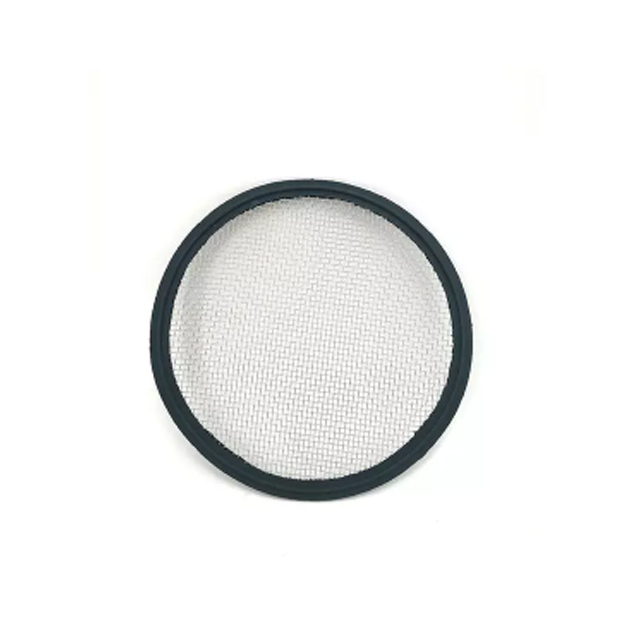

FKM Clamp 10 Mesh Screened Gasket
Tri Clamp Ferrule
PIFE
| Model No. | FG-Gasket 00025 | Performance | Corrosion |
| Shape | O-Ring | Standard | Standard,Nonstandard |
| Application Range | Milk,Juice,Beer,Pharmacy,Dairy,Ect | Availabe Color | White,Black,Blue,Grey,Ect |
| Type of Sealing Ring | Tri Clamp Ferrule,Butterfly Valve,Union | Type of Mesh Stainless Steel | 30mesh,40mesh,50mesh,60mesh |
| Pressure Range | 0-10bar,OMPa-1.0MPa | Temperature Range | -55celsius Degree~250 Celsius Degree |
| EPDM Gasket | Withstand High Acid and Alkali | Availabe Standard | SMS, DIN, 3A, Idf, ISO |
| Size | 1/2"-12",DN10-DN300, 12.7mm-304.8mm | Material Quality | EPDM, Silicone, PTFE, NBR |
| Transport Package | Shrink Wrap-Carton Case-Exporting Plywood Case | Specification | ISO, 3A, SGS, CE |
| Trademark | FOGO | Origin | Made in China |
| HS Code | 40169310 | Production Capacity | 10000pieces/Month |
The Funtions for Sanitary Silicone Gasket
| 1. | Has excellent heat resistance,cold resistance,ozone resistance,aging resistance |
| 2. | Has very good insulation performance |
| 3. | The tensile strength is poor and it is not resistant to oil. |
| 4. | -55Celsius Degree~250 Celsius Degree |
The Funtions for Sanitary EPDM Gasket
| 1. | Has good weather resistance,ozone resistance,water resistance and chemical resistance |
| 2. | Used for high temperature water vapor seal |
| 3. | -55Celsius Degree~150Celsius Degree |
The Funtions for Sanitary FKM Gasket
| 1. | High temperature resistance than silicone rubber,has excellent weather resistance, ozone resistance and chemical resistance |
| 2. | For most oil and solvent resistance |
| 3. | -20Celsius Degree~250Celsius Degree |
The Funtions for Sanitary NBR Gasket
| 1. | Suitable for oil system hydraulic oil,glycol system of hydraulic oil,two ester series lubricating oil gasoline,water,silicone grease,silicone oil and other media use |
| 2. | The most widely used,the lowest cost of rubber seals |
| 3. | -40Celsius Degree~120Celsius Degree |
Sealing ring also pays attention to the following conditions
| 1. | Flexibility and elasticity |
| 2. | Appropriate mechanical strength,including tensile strength,elongation and tensile strength etc. |
| 3. | Stable performance,easy to swelling in the medium,heat shrinkage (Joule effect)small |
| 4. | Easy processing,and can keep the precision dimension |
| 5. | No corrosion no pollution to medium contact surface,etc. |
Advantage of Sanitary Gasket
| 1. | The sealing ring in the work pressure and temperature range,good sealing performance,and with the increase of pressure can improve the sealing performance |
| 2. | The friction between the sealing ring and the moving parts of the device must be small,stable friction coefficient |
| 3. | The corrosion resistance of the sealing ring is strong,not easy to aging,long service life,good resistance to abrasion,wear can automatically compensate to some extent |
| 4. | Has the advantages of simple structure,convenient use and maintenance,the sealing ring has a longer life |
| Model No. | FG-Gasket 00025 | Performance | Corrosion |
| Shape | O-Ring | Standard | Standard,Nonstandard |
| Application Range | Milk,Juice,Beer,Pharmacy,Dairy,Ect | Availabe Color | White,Black,Blue,Grey,Ect |
| Type of Sealing Ring | Tri Clamp Ferrule,Butterfly Valve,Union | Type of Mesh Stainless Steel | 30mesh,40mesh,50mesh,60mesh |
| Pressure Range | 0-10bar,OMPa-1.0MPa | Temperature Range | -55celsius Degree~250 Celsius Degree |
| EPDM Gasket | Withstand High Acid and Alkali | Availabe Standard | SMS, DIN, 3A, Idf, ISO |
| Size | 1/2"-12",DN10-DN300, 12.7mm-304.8mm | Material Quality | EPDM, Silicone, PTFE, NBR |
| Transport Package | Shrink Wrap-Carton Case-Exporting Plywood Case | Specification | ISO, 3A, SGS, CE |
| Trademark | FOGO | Origin | Made in China |
| HS Code | 40169310 | Production Capacity | 10000pieces/Month |
The Funtions for Sanitary Silicone Gasket
| 1. | Has excellent heat resistance,cold resistance,ozone resistance,aging resistance |
| 2. | Has very good insulation performance |
| 3. | The tensile strength is poor and it is not resistant to oil. |
| 4. | -55Celsius Degree~250 Celsius Degree |
The Funtions for Sanitary EPDM Gasket
| 1. | Has good weather resistance,ozone resistance,water resistance and chemical resistance |
| 2. | Used for high temperature water vapor seal |
| 3. | -55Celsius Degree~150Celsius Degree |
The Funtions for Sanitary FKM Gasket
| 1. | High temperature resistance than silicone rubber,has excellent weather resistance, ozone resistance and chemical resistance |
| 2. | For most oil and solvent resistance |
| 3. | -20Celsius Degree~250Celsius Degree |
The Funtions for Sanitary NBR Gasket
| 1. | Suitable for oil system hydraulic oil,glycol system of hydraulic oil,two ester series lubricating oil gasoline,water,silicone grease,silicone oil and other media use |
| 2. | The most widely used,the lowest cost of rubber seals |
| 3. | -40Celsius Degree~120Celsius Degree |
Sealing ring also pays attention to the following conditions
| 1. | Flexibility and elasticity |
| 2. | Appropriate mechanical strength,including tensile strength,elongation and tensile strength etc. |
| 3. | Stable performance,easy to swelling in the medium,heat shrinkage (Joule effect)small |
| 4. | Easy processing,and can keep the precision dimension |
| 5. | No corrosion no pollution to medium contact surface,etc. |
Advantage of Sanitary Gasket
| 1. | The sealing ring in the work pressure and temperature range,good sealing performance,and with the increase of pressure can improve the sealing performance |
| 2. | The friction between the sealing ring and the moving parts of the device must be small,stable friction coefficient |
| 3. | The corrosion resistance of the sealing ring is strong,not easy to aging,long service life,good resistance to abrasion,wear can automatically compensate to some extent |
| 4. | Has the advantages of simple structure,convenient use and maintenance,the sealing ring has a longer life |
