Butterfly Valve Column

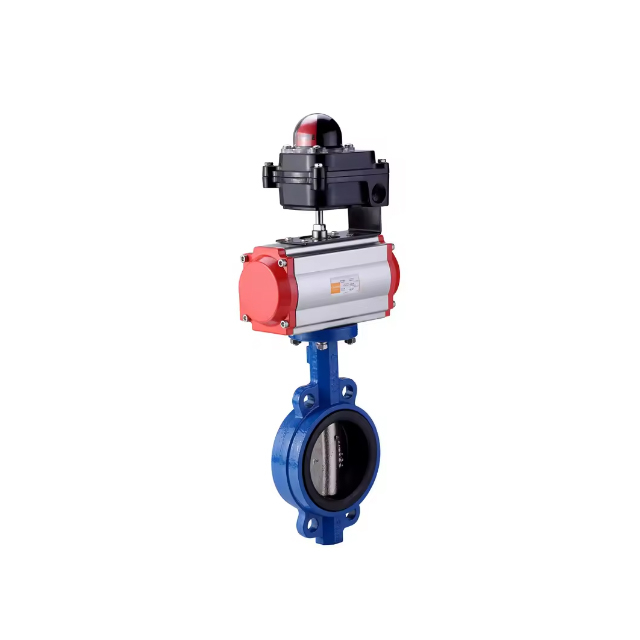

About Butterfly Valve

A butterfly valve, also known as a disc valve, is a simple regulating valve used for switch control in low-pressure pipelines. It consists of a disc that rotates around the valve axis for opening and closing. These valves are versatile, suitable for controlling various fluids like air, water, steam, and corrosive substances. They are commonly used for cutoff and throttling in pipelines.

Application Range

Butterfly valves find extensive application in industries such as petroleum, natural gas, chemical engineering, and water treatment, as well as in cooling water systems of thermal power plants. They are particularly suitable for large-diameter valves used in flow control.

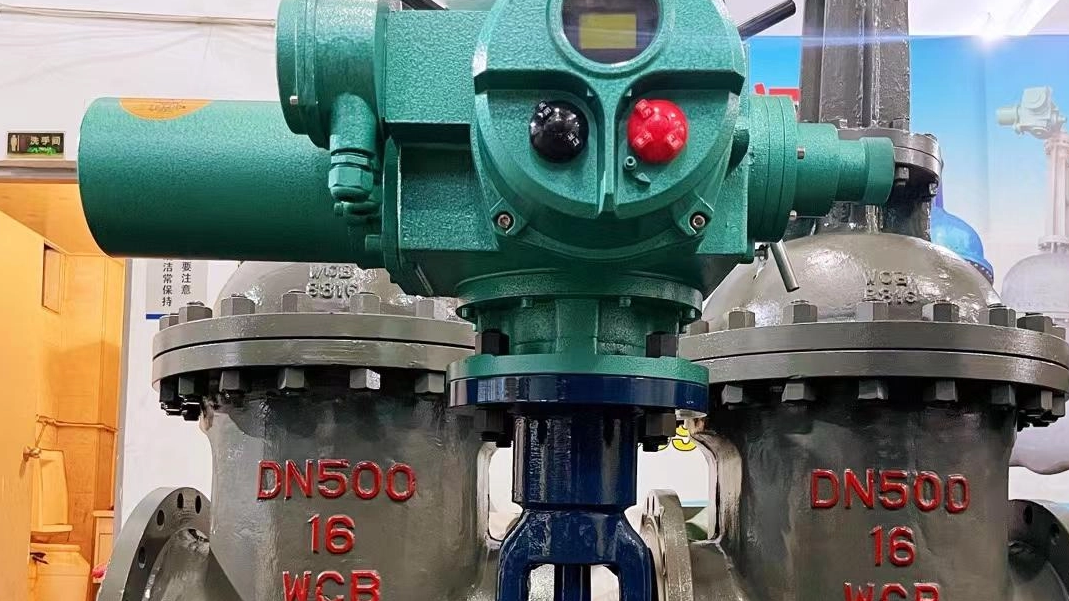

Butterfly Valve Video

Application

Petroleum

Ball valves control oil flow accurately in the petroleum

Chemical

Ball valves regulate fluid flow efficiently in chemical plants.

Power Plants

Ball valves control fluid flow effectively in power stations.

Water Resources

Ball valves regulate water flow efficiently in hydraulic systems.

Metallurgy

Ball valves control fluid flow effectively in metallurgical processes.

Renewable Energy

Ball valves regulate fluid flow efficiently in renewable energy systems.

Featured Butterfly Valve

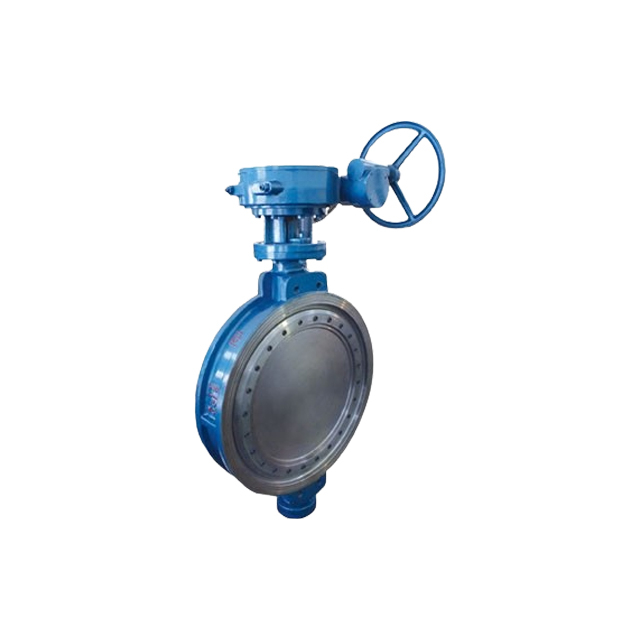

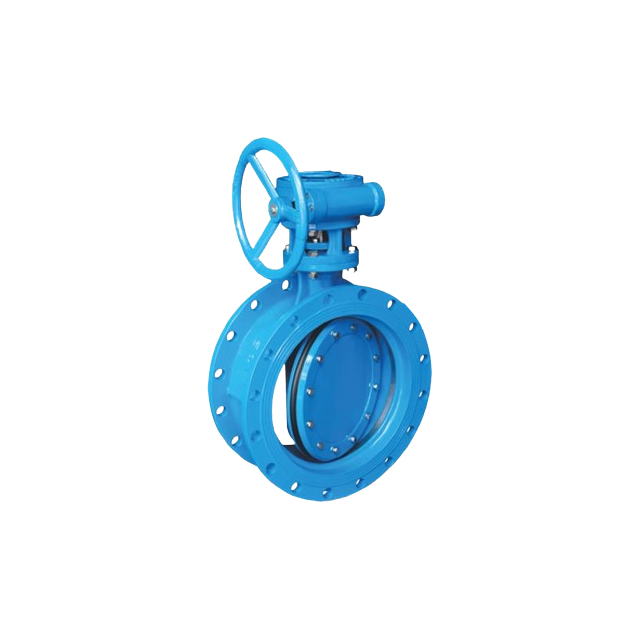

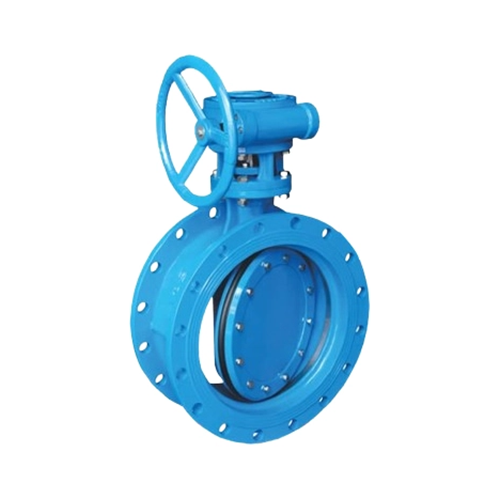

Flange Type Two Eccentric Soft Seal Butterfly Valve

D343X Ductile Iron/Cast Steel Worm Gear Flange Type Two Eccentric Soft Seal Butterfly Valve Factory

-Specifications: DN50-DN3000
-Temperature: less than or equal to 120℃
-Pressure: 0.25mpa-2.5mpa
-Valve stem material: medium carbon steel, stainless steel (2Cr12), 1Cr18Ni9Ti

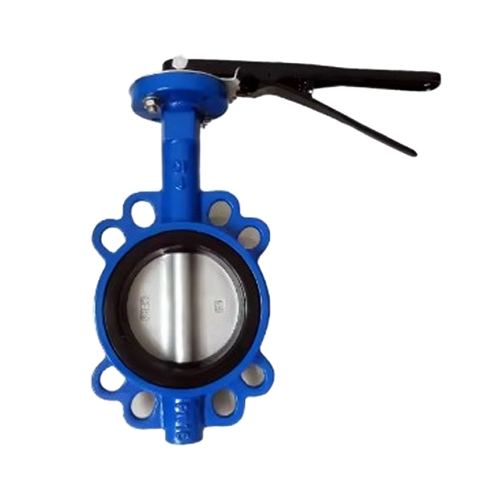

Wafer Type Centerline Butterfly Valve

D3 (6/9) 71X 1.0mpa 1.6mpa Ductile Iron Wafer Centerline Butterfly Valve Manufacturers Good Price

-Specifications: DN40-DN600
-Temperature: less than or equal to 120℃
-Pressure:1.0mpa/1.6mpa
-Applicable media: fresh water, sewage, sea water, air, steam, acid and alkali, etc.
-Valve stem material: medium carbon steel, stainless steel (2Cr12), 1Cr18Ni9Ti

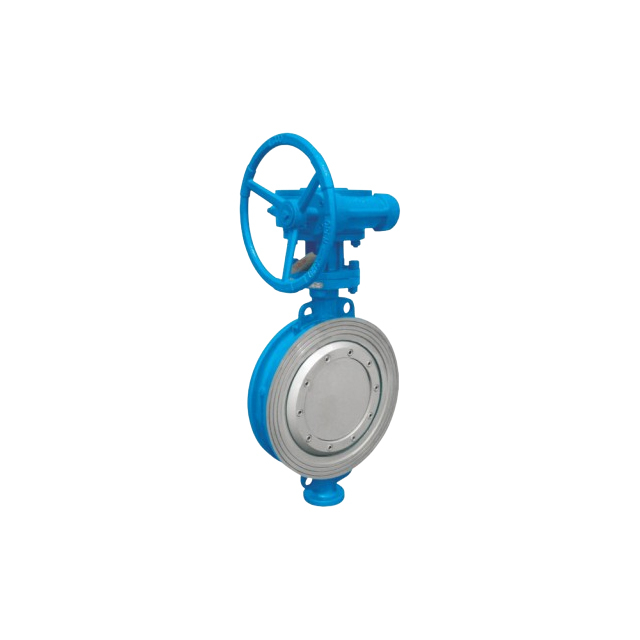

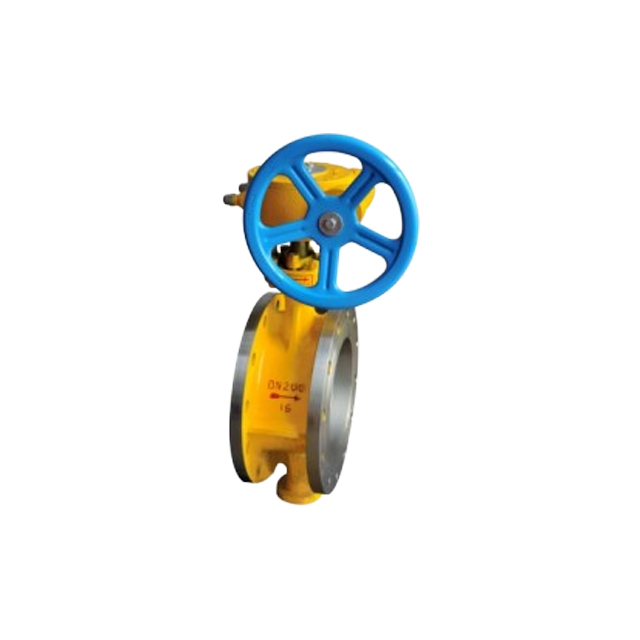

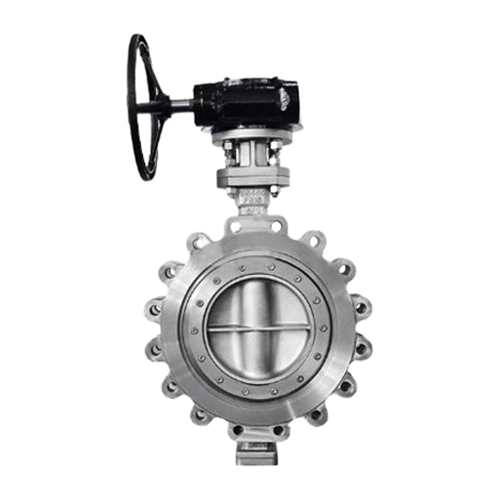

American Standard Lug Triple Eccentric Butterfly Valve

LTD73H(W/F) Manual, Pneumatic, Electric American Standard Lug Triple Eccentric Butterfly Valve by Factory price

-Valve body material: CF8,CF8M,CF3,CF3M
-Caliber size: DN50~DN1200
-Working temperature: high temperaturestressful environment
- Stressful Environment: normal pressure
-Valve function:turn off, cut off, open and close, switch, throttle
-Connection Type: Flange
-Pressure Class: 150LB,300LB,600LB

PROVIDE MORE BALL VALVE SOLUTIONS FOR CUSTOMERS IN NEED

+86 17858478788
Other ways to get in touch

Related Butterfly Valve

1
2
»

Butterfly Valve

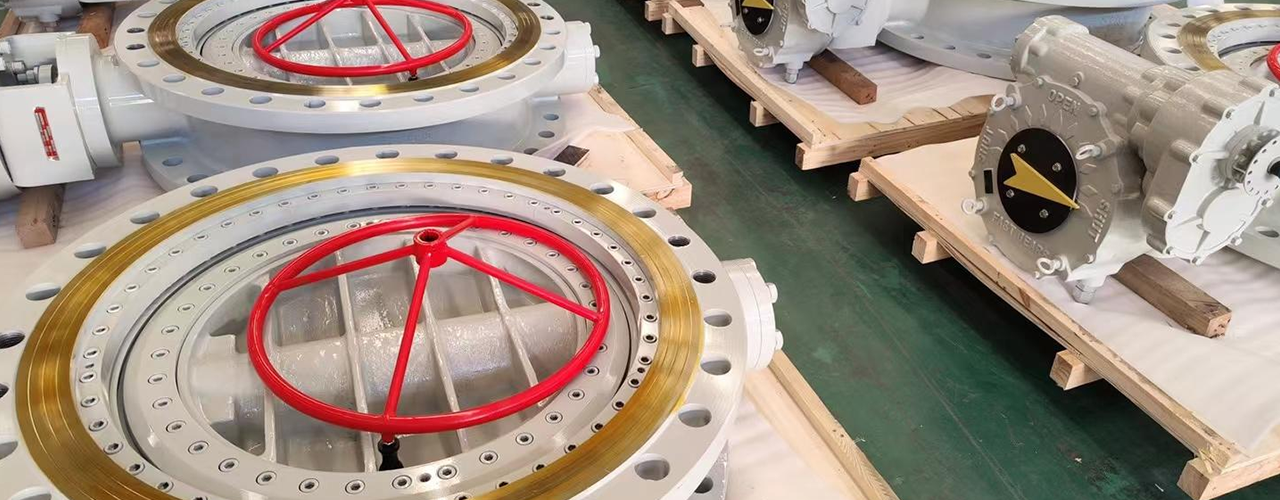

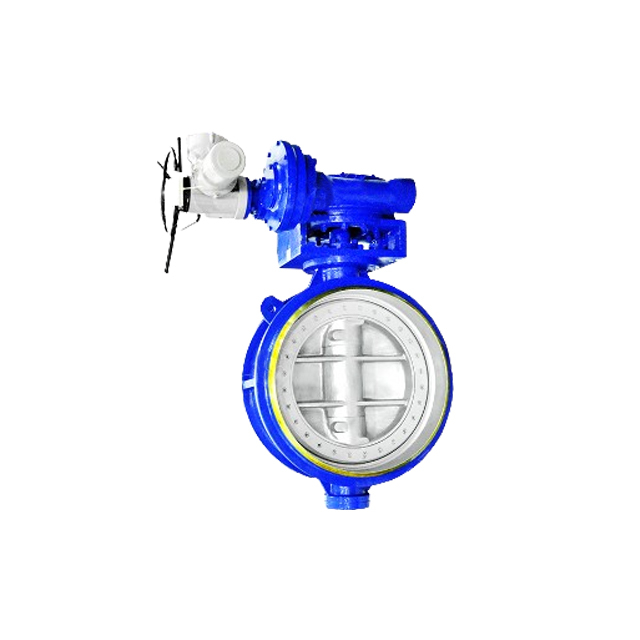

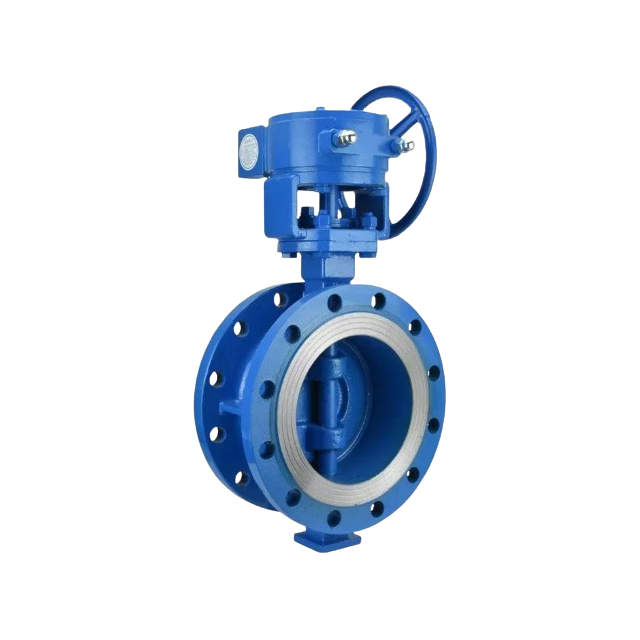

Turbine flanged triple eccentric butterfly valve

Turbine flanged triple eccentric butterfly valves are widely used for flow control in various industries. They handle temperatures up to 425°C and are made of materials like cast iron, cast steel, and stainless steel.

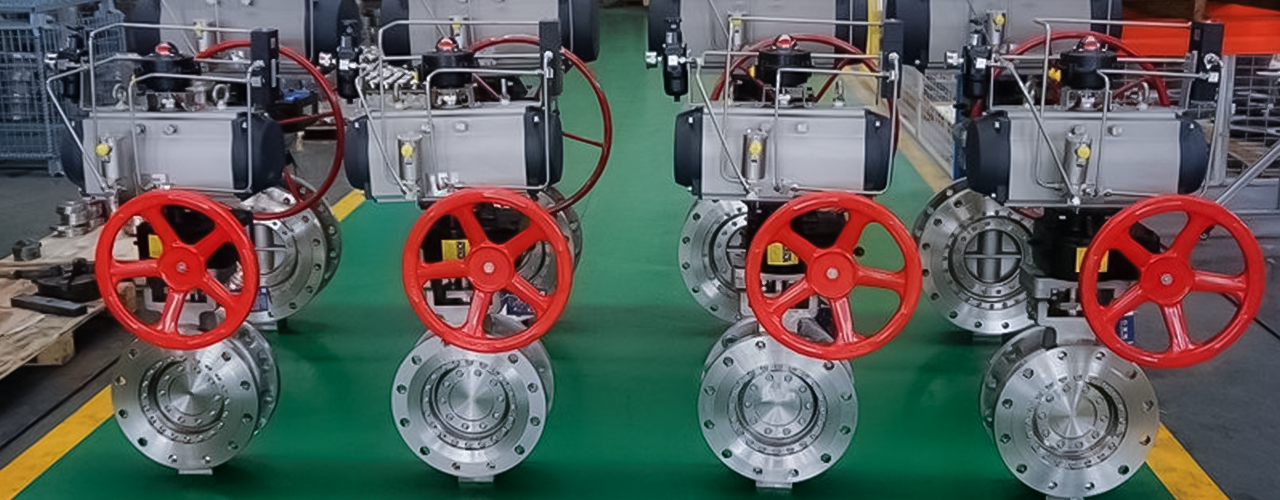

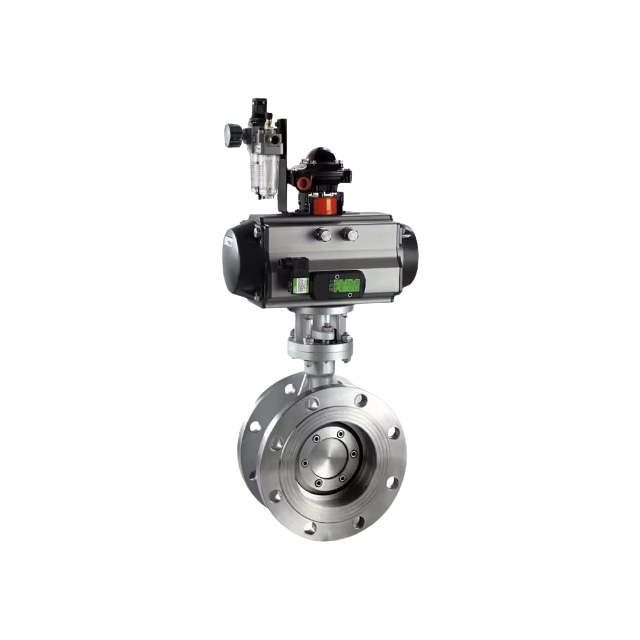

Pneumatic hard-seal butterfly valves

To address the contradiction between requiring high-temperature resistance with hard seals, which often result in significant leakage, and needing zero leakage with soft seals, which lack high-temperature resistance, a third eccentricity has been introduced to butterfly valves.

Butterfly Valve FAQ

Q How about the installation and start-up?
A Technician will be assigned to coordinate installation, commissioning and training, cost for flight ticket, suitable accommodation, visa cost and labor cost will be covered by buyer.

Q Do you have some videos to show the line producing?
A Yes, we can provide some videos for reference.

Q If you will test all machines before delivery?
A Yes, we have 100% test before delivery.

Q Can you produce according to the samples?
A Yes, we can manufacture mould by your samples or 3D drawings.

Q How long is the Warranty period?
A 12 months limited warranty starting from date of shipping excluding wear parts.

Q How about the delivery time?
A Normally, 45-60 days after receipt of advance payment and confirmed drawings. The specific delivery time depends on the items and the quantity of your order.

Q What is your terms of delivery?
A EXW, FOB, CIF.

Q What is your terms of payment?
A 50% advance payment by T/T upon signing the contract, and 50% balance payment covered by T/T before delivery. If you need, we'll show you the photos of the machines before you pay the balance. Other payment terms can also be negotiated.

Things You Should Know about Butterfly Valve

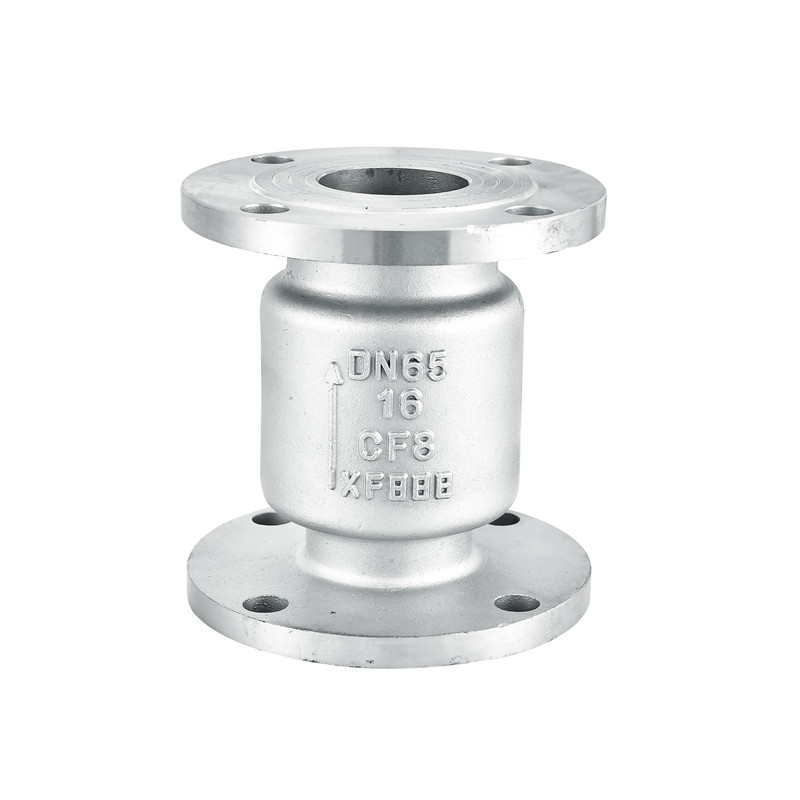

Stainless Steel Flanged Vertical Check Valve: The Vertical Guardian Against Backflow in Pipeline Systems
2025-11-21

In the intricate web of industrial piping networks, preventing fluid backflow is not merely a convenience but a fundamental requirement for ensuring overall system safety, protecting expensive critical equipment, and maintaining uninterrupted process stability. The stainless steel flanged vert Read More

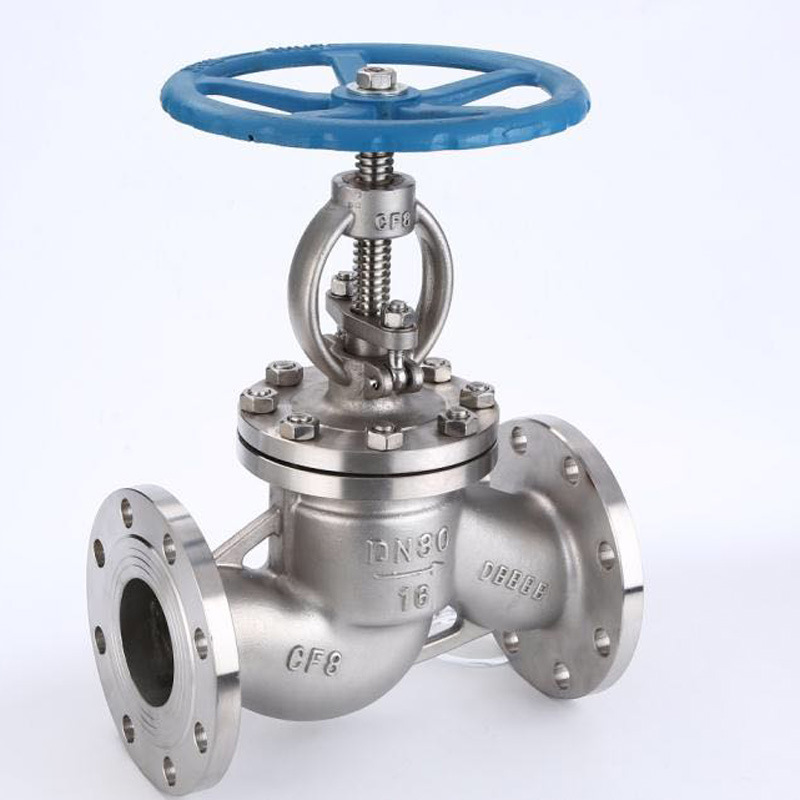

The Role of Stainless Steel Globe Valves: Precision Control in Critical Applications
