LTD73H(W/F)
FOGO

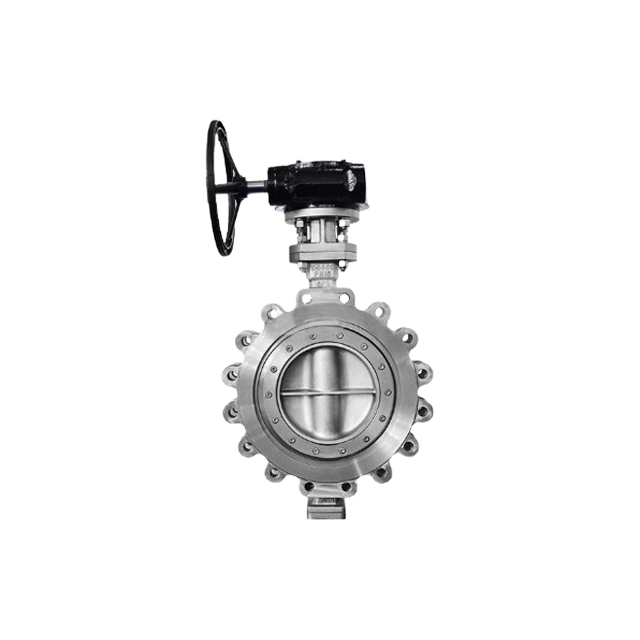

American Standard Lug Triple Eccentric Butterfly Valve
wafer
Q235A, SS304,ss316
1 year
Purpose and functions:
The application range of the triple eccentric butterfly valve can withstand pressures up to 2500 pounds, temperature resistance as low as -196 ℃ and as high as 850 ℃, sealing can reach 0 leakage, and the control ratio can be as high as 100:1 or more. That is to say, in various harsh and critical process control pipelines, whether it is an on-off valve or a control valve, as long as the type is properly selected, butterfly valves can now be used with confidence and at low cost. The so-called triple eccentricity refers to adding an angular eccentricity on the basis of the double eccentric structure, even if the sealing surface of the butterfly valve is inclined and tapered. The characteristic of this structure is that the outer periphery of the butterfly plate is processed into an outer inclined cone surface, and the inner side of the sealing valve seat is processed into an inner inclined cone surface.
Features:
Good sealing performance improves system reliability;
Small friction resistance, labor-saving and flexible opening and closing;
Long service life, can be switched on and off repeatedly;
It has strong pressure-bearing and high-temperature resistance capabilities and a wide range of applications.
Standard Design
Design standard: GB/T12238 API 609
Structure length: GB/T12221 API 609
Flange connection size: GB/T9113 JB/T79&HG20592 ASME B16.5ASME B16.47 JIS DIN EN
Inspection and testing: GB/T13927&JB/T9092 API 598
Specification
| Item | American Standard Lug Triple Eccentric Butterfly Valve |
| Product name | American Standard Lug Triple Eccentric Butterfly Valve |
| Material | Q235A, WCB, CF8,CF8M |
| Size | DN50 to DN1200 |
| End Connection | Flanged |
| Pressure range | 150LB,300LB,600LB |
| Drive mode | Turbine, Manual, Pneumatic, |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | For use in harsh oil and gas fields |

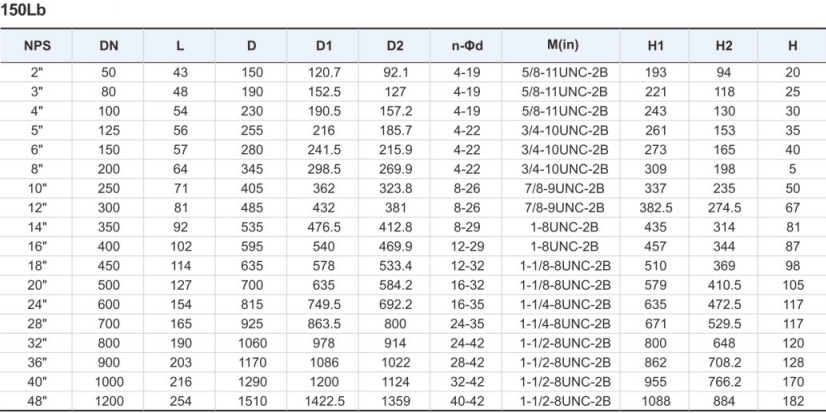

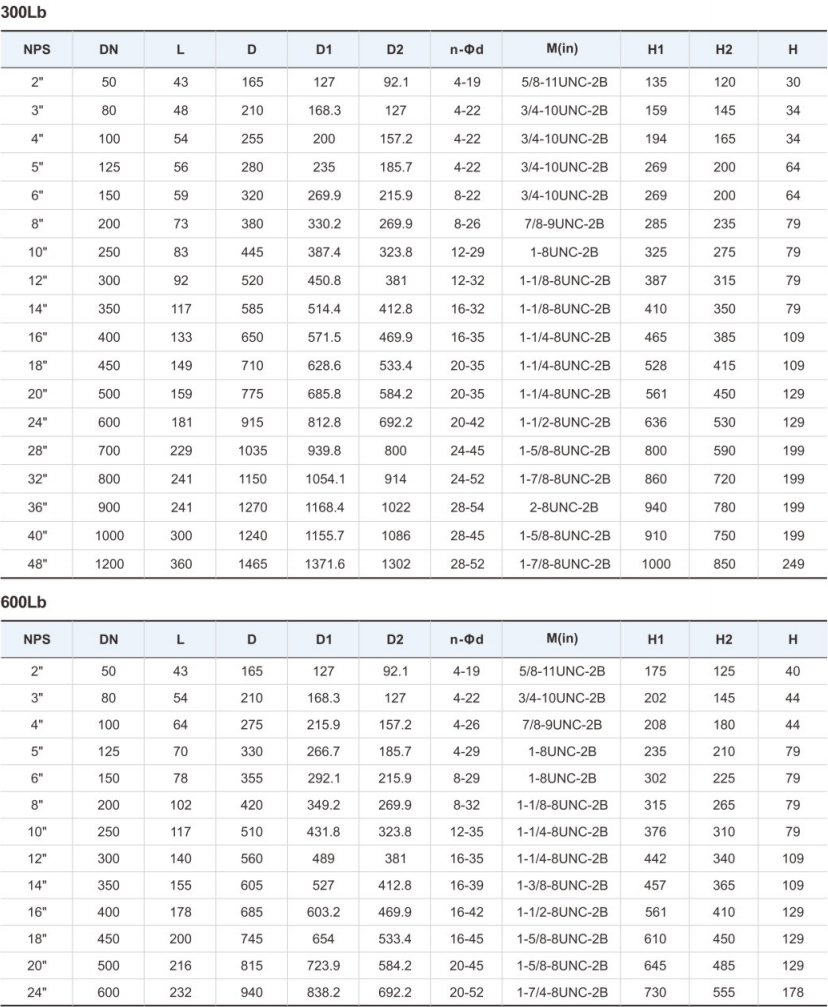

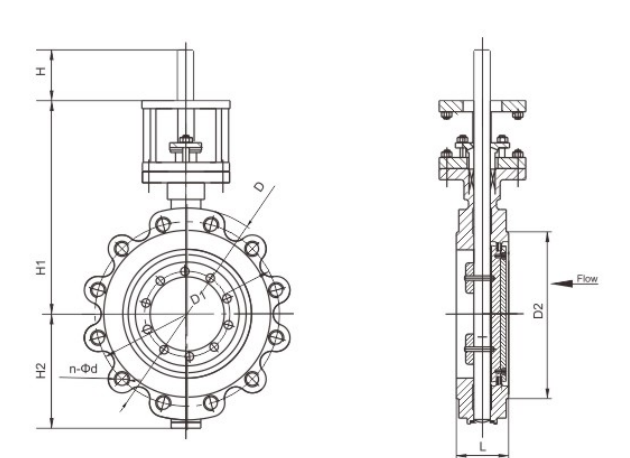

Body Type

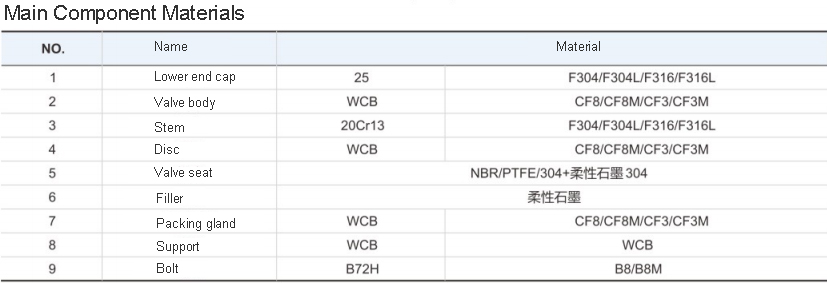

Materials of Main parts
About Delivery
About Application
