Clamp Butterfly Valves Oem

Operating Principles

• Pneumatic weld butterfly valve can be automatically operated by actuator

• The actuator push piston of axial movement into 90 degree so that it controls butterfly valve

• The butterfly valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields.

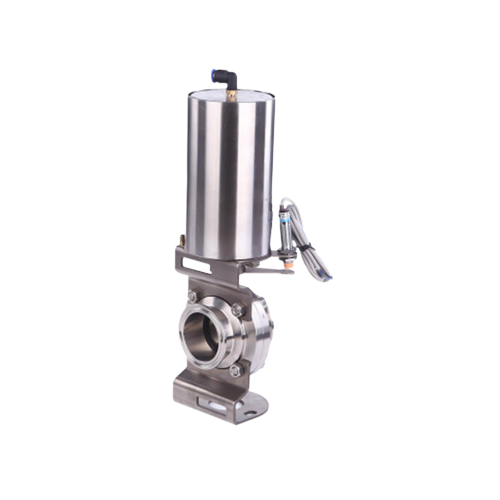

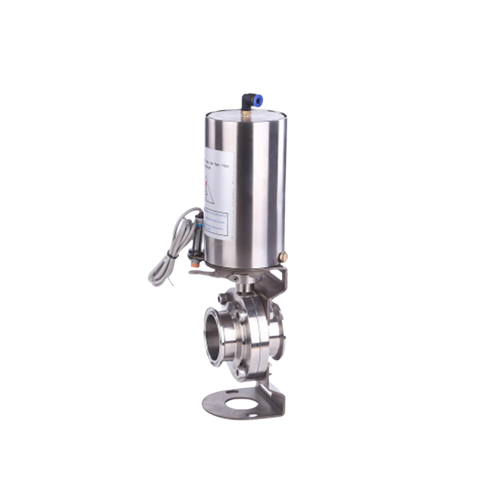

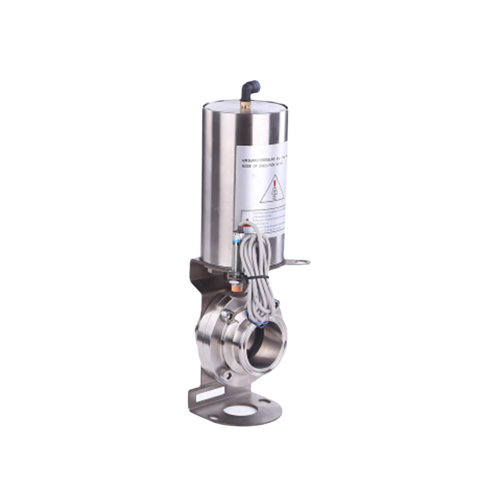

Stainless Steel Pneumatic Sanitary Clamp Butterfly Valves

• Our Butterfly valve body could be offered with Weld end,Male end,female end,and Clamp end.Our butterfly valves can

• be installing with different type handles like 4 position pull handle,12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.

• The Butterfly valve body and disk are all made from full CNC machined,high grade level polish.

• All of the products have been 100%press tested before shipping.

• It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.

• EPDM,Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications

• in such as food,dairy,beverage,meat processing,chemical,and many other industries.

Standard Design

• Available in sizes from DN15   1/2" to  DN100   3"

• Standard Avaliable:DIN,SMS,ISO,IDF.RJT,IDF,3A

• Connection:weld,clamp,thread,single weld single thread,flange

• Actuator:pneumatic stainless steel actuator,pneumatic aluminum actuator,electric actuator

• Control:position sensor,C-TOP controller,C-TOP controller(AS-1)

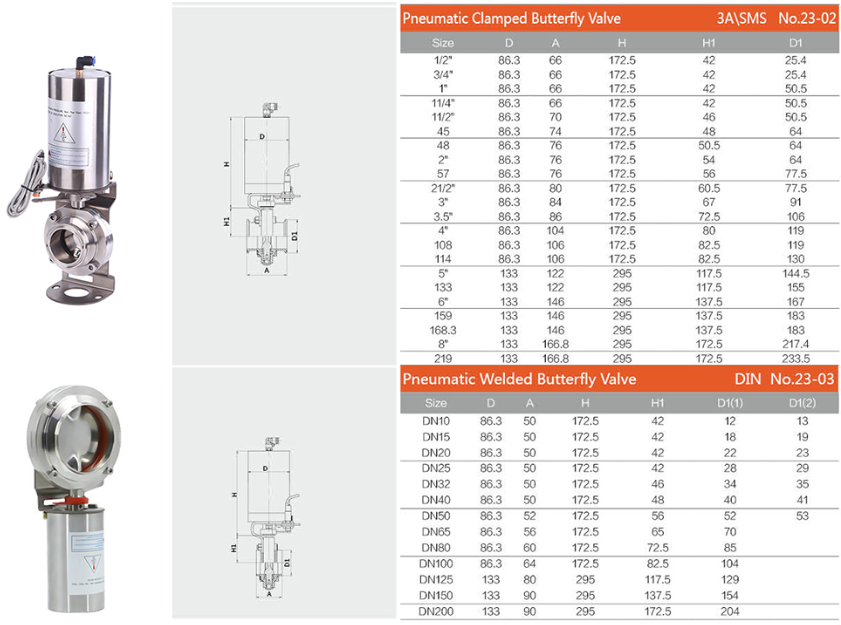

Specification

Body Type

Exploded view of Butterfly Valve

About Delivery

About Application
