Sanitary Stainless Steel Thread Butterfly Valve with Pull Handle Factory Produce

Operating Principles

• The male butterfly valves can be operated automatically through actuator or manually with the handle.

• The handle blocks the valve in the "open"or "closed"position,certainly there are the other position available

• The actuator push piston of axial movement into 90 degree so that it controls butterfly valve.

• The butterfly valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields.

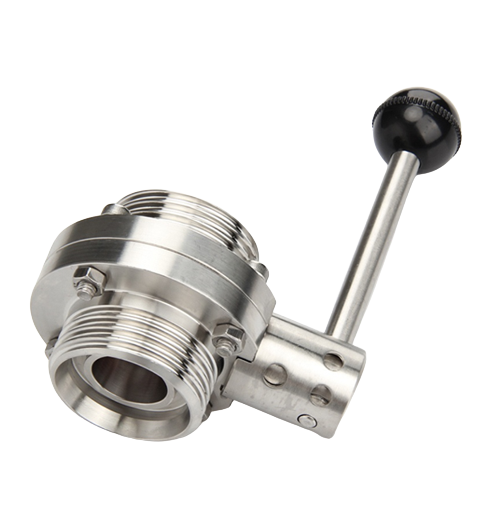

Sanitary Stainless Steel Thread Butterfly Valve with Pull Handle

• Sanitary Butterfly Valve including Sanitary Butt-Weld Butterfly Valve,Sanitary Tri-Clamp Butterfly Valve,Hygienic

• Male Thread Butterfly Valve,Sanitary Pneumatic Butterfly Valve,Hygienic Electric Butterfly Valve.For the manual handle,we have Stainless Steel Pull Handle,Plastic Multi Position Gripper Handle and Stainless Steel Multi Position Handle.

• The Butterfly valve body and disk are all made from full CNC machined,high grade level polish.

• All of the products have been 100%press tested before shipping.

• It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.

• EPDM,Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food,dairy,beverage,meat processing,chemical,and many other industries.

Tri Clamp Hygenic Butterfly Valve with handle

• Novel design,reasonable,unique structure,light weight

• Sealing materials are resistant to aging,corrosion and long service life

• Widely used in process control occasions such as food,pharmaceuticals,cosmetics,clean steam,alcohol,

• Beverages,biochemical industrial processes

• The butterfly valve can be operated automatically through an actuator or manually with a handle.




Specification

Body Type

Exploded view of Butterfly Valve

About Delivery

About Application
