| Size: | |
|---|---|
| Material: | |
| Connection type: | |
| Quantity: | |
FOGO
Sanitary butterfly valve
tri-clamped
ss304, ss316L
1 year

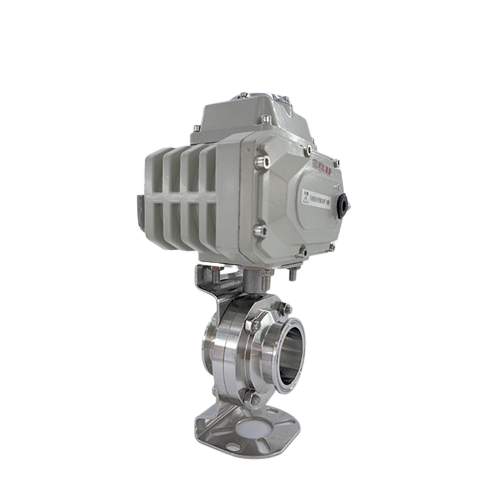

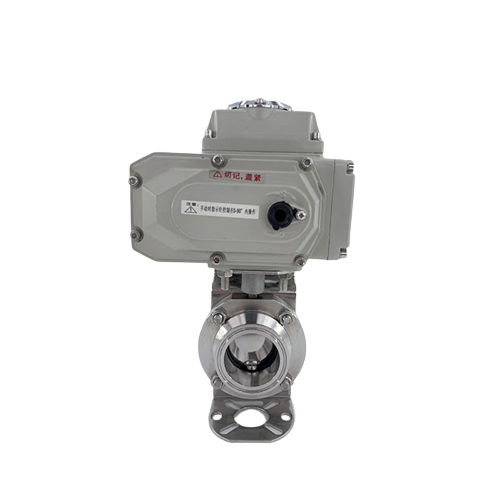

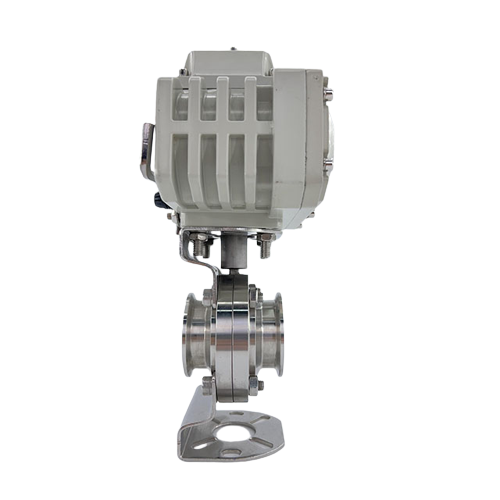

Tri-clamp Butterfly Valve with Electric Actuator
Novel design,reasonable,unique structure,light weight,quick opening and closing
The operating forque is small,the operation is convenient,and the labor-saving and dexterous
It can be installed in any position,easy maintenance
Sealing materials are resistant to aging,corrosion and long service life Widely used in process control occasions such as food,pharmaceuticals,cosmetics,clean steam,alcohol, beverages,biochemical industrial processes
The specification of FOGO manual handle as follows:
Pulling handle,we can supply two kinds of specification
Multi-position stainless steel handle can be used on the specification as follows: DN10DN100/3A3/4"~4"/SMS19~102/DS1"~4"/IS0,IDFφ19-φ1083
Multi-position plastic handle can be used on the specification are the same as
the stainless steel multi-position handle. The handle is fixed by a bolt.
Standard Design
Standards of valves can be provided to clients:DIN,3A,SMS,ISO/IDF,BS/RJT,ASME/BPE etc.
The parts of valve usually include:two pieces body of valve,disc,gasket of valvedisc,gasket,and the entire valve is assemble together with bolts and nuts.3piece butterfly valve also include two flanges and two gaskets of flange.
The series of FOGO butterfly valve:welded,clamp,male,weld/male,union/male,three pieces ect.

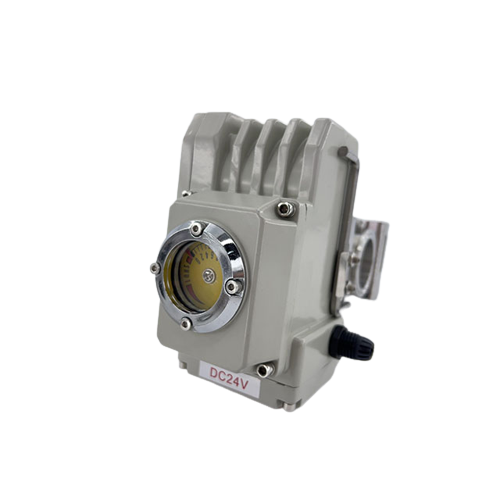

The series of actuator:1.stainless steel pneumatic actuators specification:85,108 and 133;2.Aluminum pneumatic actuators,specification:ZT050D,ZT063D,ZT075D,ZT088D,ZT100D,ZT115D;3.Electric actuators,specification:HL-05,HL-10,HL-20. Actuator is fixed in the valve(by a bracket and bolts.)
Specification
| Item | Sanitary Electric Butterfly Valve |
| Product name | Sanitary Electric Butterfly Valve |
| Material | SS304, SS316L |
| Size | 1/2"-10" |
| End Connection | Clamp, Welding, Threaded, etc. |
| Pressure range | 0~10Bar |
| Surface | Inner Ra.0.8um or specified |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air, Liquid, Petroleum |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |

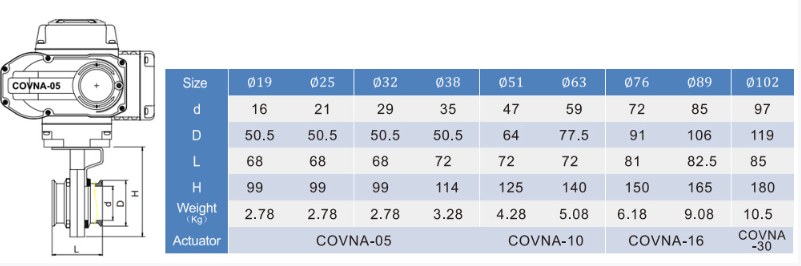

Body Type
Exploded view of Butterfly Valve
About Delivery
About Application
