FOGO
Stainless Steel Hygienic Sanitary Manual Ends Butterfly Valves
tri-clamped
ss304, ss316L
1 year
Operating Principles
Stainless steel sanitary butterfly valves can be opened automatically through actuator or manually with handle
The handle blocks hygienic butterfly valves in the open or closed postion,certainly there are the other postion available.
The actuator push piston of axial movement into 90 degree so that it controls sanitation butterfly valves.
Stainless Steel Sanitary Male Threading Nut Butterfly Valves

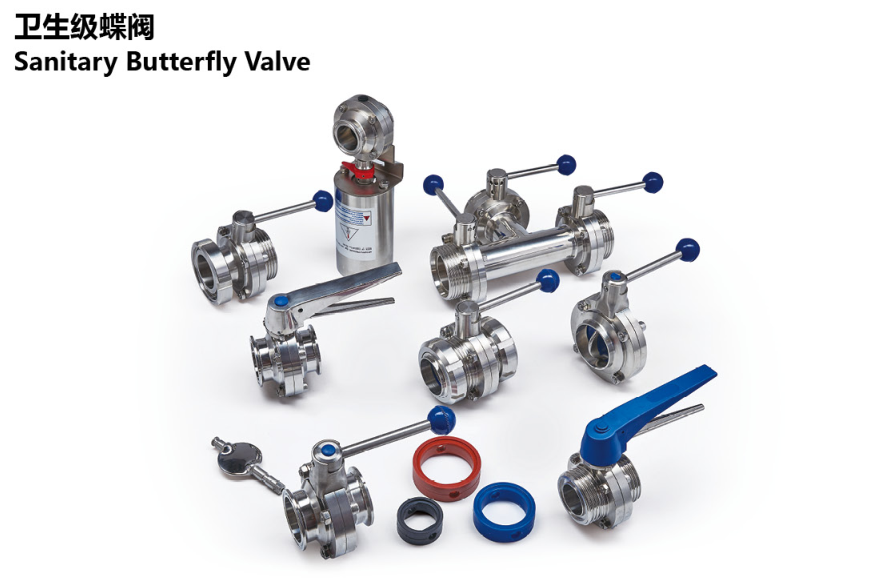

We can supply Sanitary Butt-Weld Butterfly Valve,Sanitary Tri-Clamp Butterfly Valve,Hygienic Male Thread Butterfly Valve,Sanitary Pneumatic Butterfly Valve,Hygienic Electric Butterfly Valve.For the manual handle,we have Stainless Steel Pull Handle,Plastic Multi Position Gripper Handle and Stainless Steel Multi Position Handle.
The Butterfly valve body and disk are all made from full CNC machined,high grade level polish.
All of the products have been 100%press tested before shipping.
It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
EPDM,Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food,dairy,beverage,meat processing.chemical,and many other industries.
Technical Specifications:
Max.pressure:10bar(DN25 DN100),8bar(DN125/DN150)
Min.pressure:0.2bar
Temperature range:-5 266F(-15~130C)with EPDM seat,-31 ~392F(-35~200C)with silicone seat, 10~392F(-10 ~200C)with silicone seat
Specification
| Item | Stainless Steel Sanitary Male Threading Nut Butterfly Valves |
| Product name | Stainless Steel Sanitary Male Threading Nut Butterfly Valves |
| Material | SS304, SS316L |
| Size | 1/2"-12",DN15-DN300 |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 10Bar |
| Contriol | Sensor,C-TOP,C-top controller(AS-1) |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Seal Material | EPDM(standard)FPM/SILICON/NBR,FDA177.2600 |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |

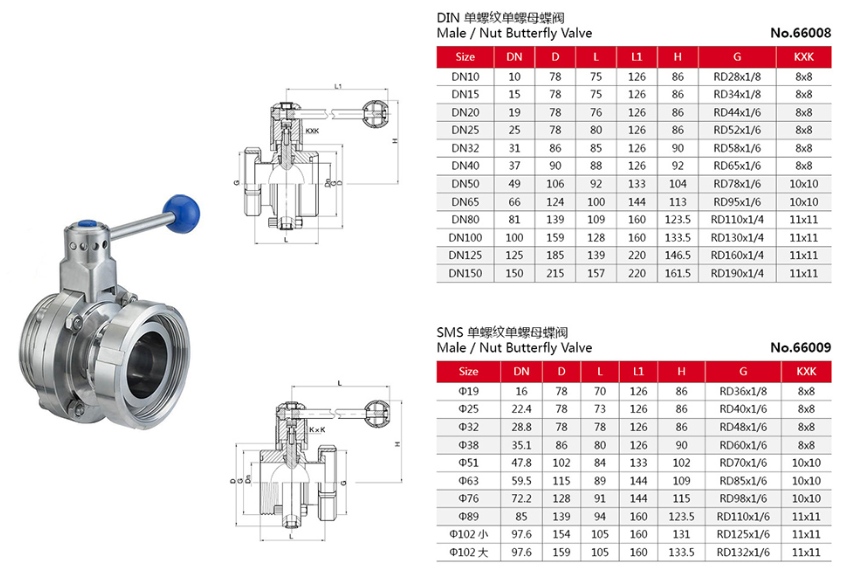

Body Type

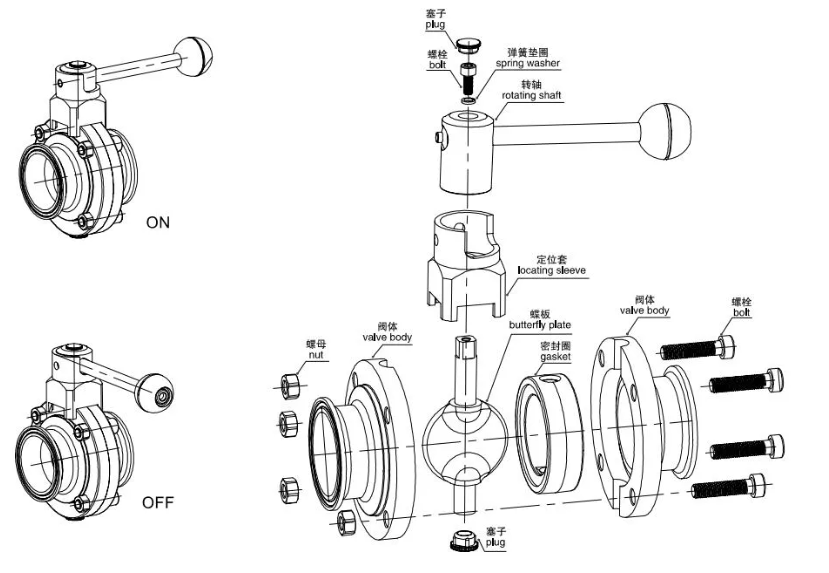

Exploded view of Butterfly Valve
About Delivery
About Application
