Sanitary Stainless Steel Clamp Butterfly Valve with Elbow Supplier

Sanitary Welded Butterfly Valve with Round Pull Handle

• Our Butterfly valve body could be offered with Weld end,Male end,female end,and Clamp end.Our butterfly valves can be installing with different type handles like 4 position pull handle,12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.

• The Butterfly valve body and disk are all made from full CNC machined,high grade level polish.

• All of the products have been 100%press tested before shipping.

• It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.

• EPDM,Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many

• applications in such as food,dairy,beverage,meat processing,chemical,and many other industries.

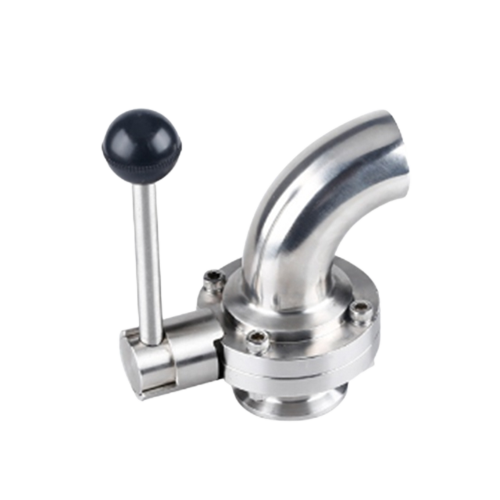

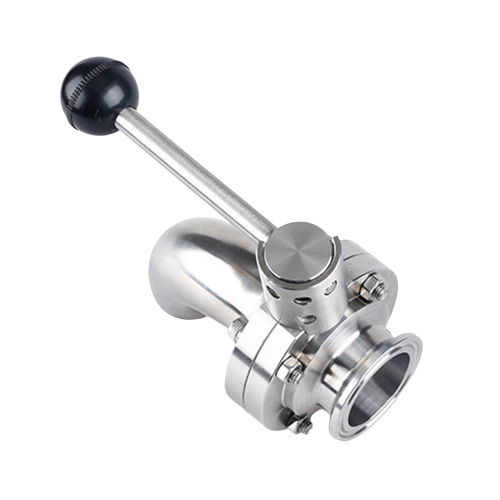

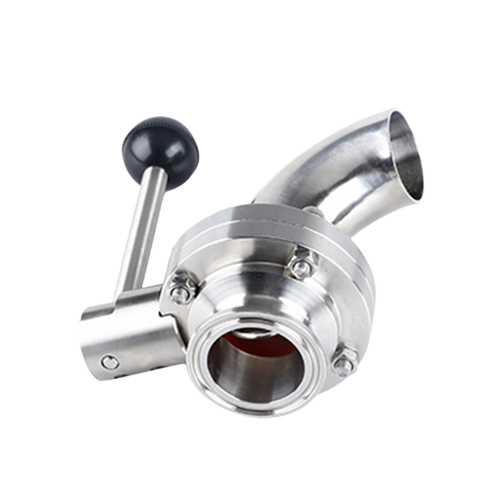

Sanitary Clamp Butterfly Valve with Elbow

• Novel design,reasonable,unique structure,light weight

• Sealing materials are resistant to aging,corrosion and long service life

• Widely used in process control occasions such as food,pharmaceuticals,cosmetics,clean steam,alcohol,

• Beverages,biochemical industrial processes

• The butterfly valve can be operated automatically through an actuator or manually with a handle.




Standard Design

• Available in sizes from DN10/1/2"to DN200 /6"

• The size of multi-position handle uo to DN100/4"

• The size of pull handle up to DN125 150 6"

• Standard Avaliable:DIN.SMS.ISO.IDF.RJT.IDF.3A

• Connection:weld,clamp,thread,single weld single thread,flange

• Handle:two-position handle,three-position handle,four-position pulling handle,multi-position plastic triggle handle and multi-position stainless steel triggle handle

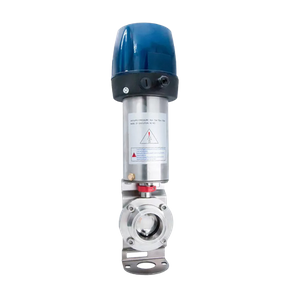

• Control:position sensor,C-TOP controller,C-TOP controller(AS-I)




Specification

Body Type

Exploded view of Butterfly Valve

About Delivery

About Application
