OEM Sanitary Stainless Steel Union Type Check Valve Manufacturer

Operating Principles

• Sanitary Stainless Steel Tri Clamp Check Valve best price

• The sanitary check valve is a universal one-way fluid valve.It is light in weight,small in size,and easy to install between flanges

• The inside of the valve is composed of two semicircular springs and a plate surface.

• The spring is fixed on the valve body with a pin to close the valve plate and the fluid pressure opens the spring.

• The deformation is very fast,which can protect the pipeline from water hammer damage.

• The check valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields.

Sanitary Stainless Steel Clamped Check Valve

• We can supply Sanitary Tri Clover Check Valve,Hygienic Welding Check Valve,Sanitary Male Check Valve,Sanitary Union Type Check Valve,Hygienic Flanged Type Check Valve.

• Check valve can prevent the fluid from flowing back and ensures that it flows in only one direction.

• It can be used to prevent the less of prime of the pump and to avoid pipe-hammering.

• It is used in the food-processing,beverage,wine-making,oil-making,cosmetics,pharmaceutical and chemical industries.

• The valve opens when the pressure of the fluid exceeds the pressure exerted by the pump spring

• When the two pressures are equalized,the valve closes.A stronger counter-pressure allows the valve to close.

Standard Design

• Various standards of valves can be provided to clients:DIN,3A,SMS,ISO/IDF,BS/RJT,ASME/BPE etc.

• The body of Check valve is divided into two parts,they are together by the clamp, and also use a special gasket for seal.A guide discs and four guide bar are used to guide the spring,which is equipped with spindle with O type seal.

• This type of check valve:weld,clamp,and male, which are suitable for all kinds of pipelineconnections.

Specification

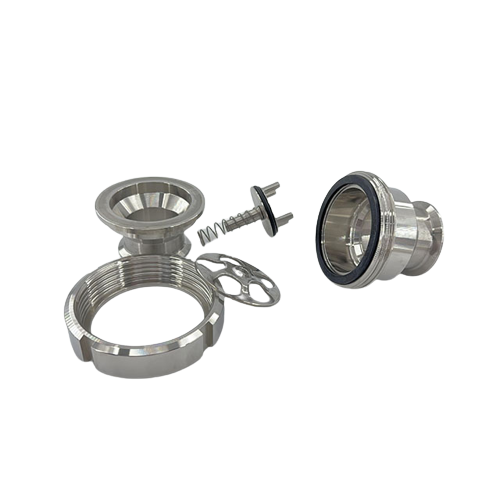

Exploded View of Sanitary Check Valve

About Delivery

About Application
