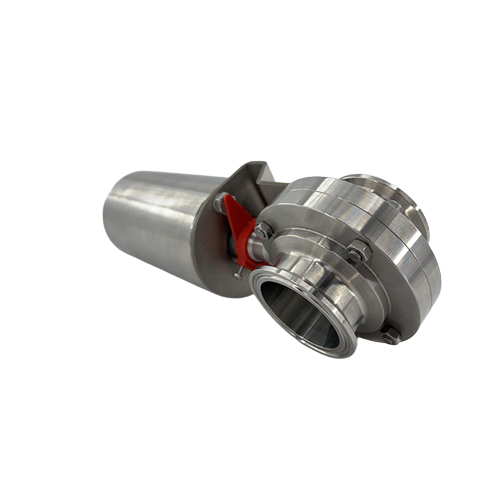

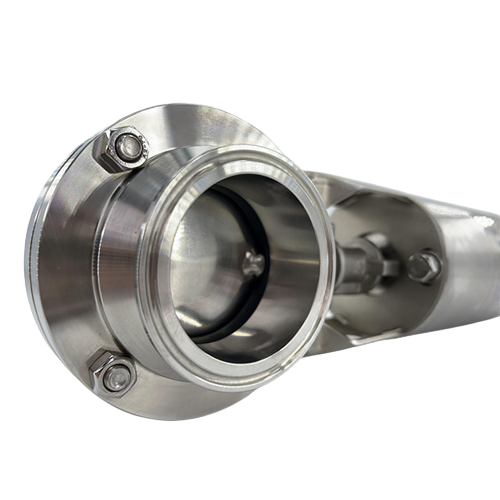

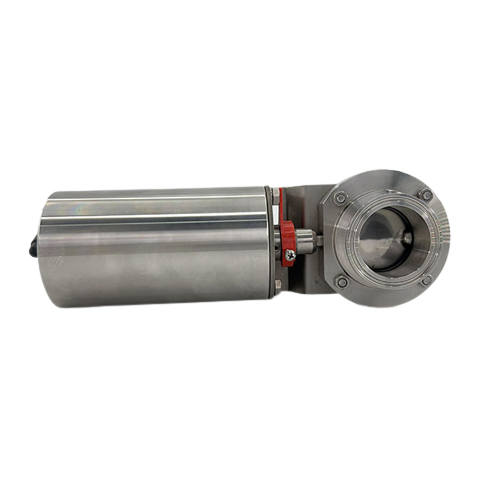

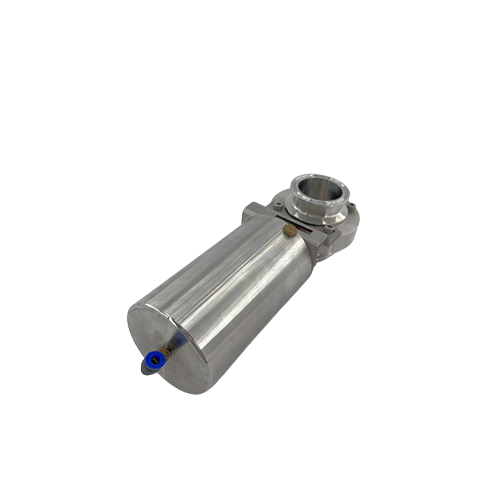

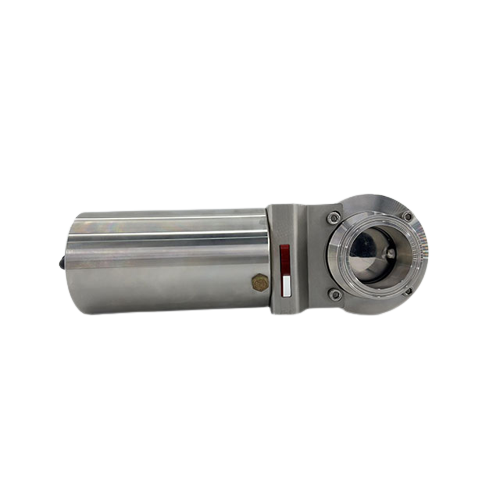

Sanitary Stainless Steel Pneumatic Butterfly Clamp Type Valves with Actuator Manufacturer

Operating Principles

• Sanitary pneumatic butterfly valve single acting Air Spring

• Pneumatic clamp butterfly valve can be automatically operated by actuator

• The handle blocks the valve in the "open" or "closed"position, certainly there are the other position available.

• The actuator push piston of axial movement into 90 degree so that it controls butterfly valve.

• The butterfly valves used in beer, beverage, dairy, fruit juice, pharmacy, bioengineering and other fields.

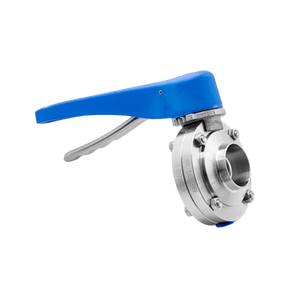

Sanitary Welded Butterfly Valve with Round Pull Handle

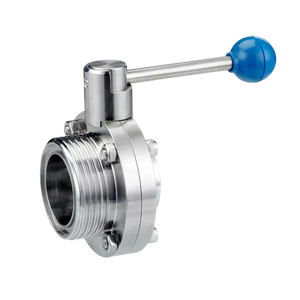

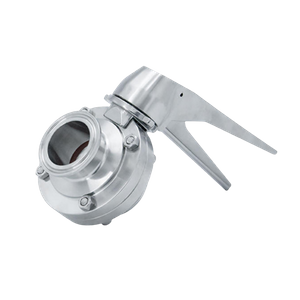

• Our Butterfly valve body could be offered with Weld end,Male end,female end,and Clamp end.Our butterfly valves can be installing with different type handles like 4 position pull handle,12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.

• The Butterfly valve body and disk are all made from full CNC machined,high grade level polish.

  All of the products have been 100%press tested before shipping.

• It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.

• EPDM,Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many

• applications in such as food,dairy,beverage,meat processing,chemical,and many other industries.

Standard Design

• Available in sizes from DN10 / 1/2" to DN200 / 8"

• Standard Avaliable: DIN, SMS, ISO, IDF, RJT, IDF, 3A

• Connection: weld, clamp, thread, single weld single thread, flange

• Actuator: pneumatic stainless steel actuator, pneumatic aluminum actuator, electric actuator

• Control: position sensor, C-TOP controller, C-TOP controller(AS-I)

Specification

Body Type

Exploded view of Butterfly Valve

About Delivery

About Application
