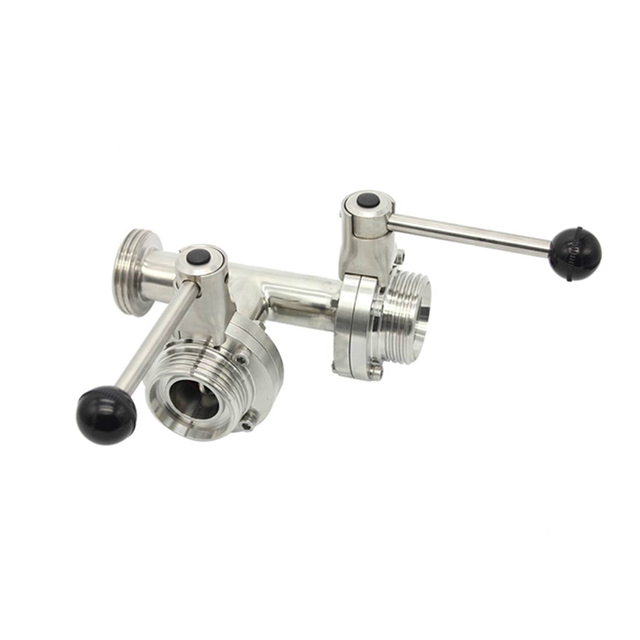

OEM Stainless Steel 3 Way Butterfly Valve Supplier

Operating Principles

• The male butterfly valves can be operated automatically through actuator or manually with the handle.

• The handle blocks the valve in the "open"or "closed"position,certainly there are the other position available

• The actuator push piston of axial movement into 90 degree so that it controls butterfly valve.

• The butterfly valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields.

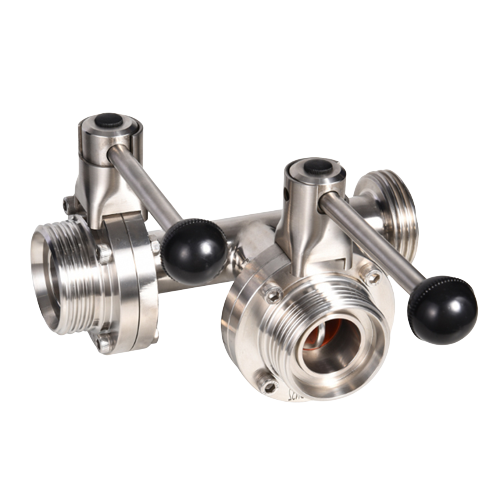

Sanitary Stainless Steel 3 Way Butterfly Valve

• We can supply Sanitary Butt-Weld Butterfly Valve,Sanitary Tri-Clamp Butterfly Valve,Hygienic Male Thread Butterfly Valve,Sanitary Pneumatic Butterfly Valve,Hygienic Electric Butterfly Valve.For the manual handle,we have Stainless Steel Pull Handle,Plastic Multi Position Gripper Handle and Stainless Steel Multi Position Handle.

• The Butterfly valve body and disk are all made from full CNC machined,high grade level polish.

• All of the products have been press tested before shipping.

• It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.

• EPDM,Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food,dairy,beverage,meat processing,chemical,and many other industries

Standard Design

• Available in sizes from DN10/1/2to DN200/8"

• The size of multi-position handle uo to DN100/4"

• The size of pull handle up to DN125 150/6"

• Standard Avaliable:DIN,SMS,ISO,IDF,RJT,IDF,3A

• Connection:weld,clamp,thread,single weld single thread,flange

• Handle:two-position handle,three-position handle,four-position pulling handle,multi-position plastic triggle handle and multi-position stainless steel triggle handle

• Control:position sensor,C-TOP controller,C-TOP controller(AS-1)

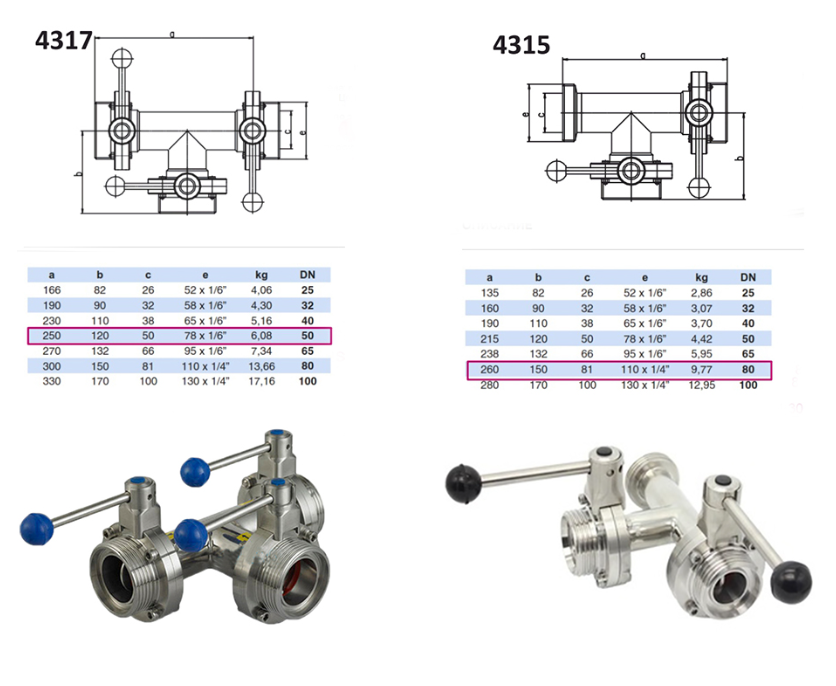

Specification

Body Type

Exploded view of Butterfly Valve

About Delivery

About Application
