Size: | |
---|---|
Material: | |
Availability: | |
Quantity: | |
FOGO
Sanitary butterfly valve
tri-clamped
ss304, ss316L
1 year
Operating Principles
The 3pc weld end butterfly valves can be operated automatically through actuator or manually with the handle.
The handle blocks the valve in the "open"or "closed"position,certainly there are the other position available.
The actuator push piston of axial movement into 90 degree so that it controls butterfly valve.
The butterfly valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields.

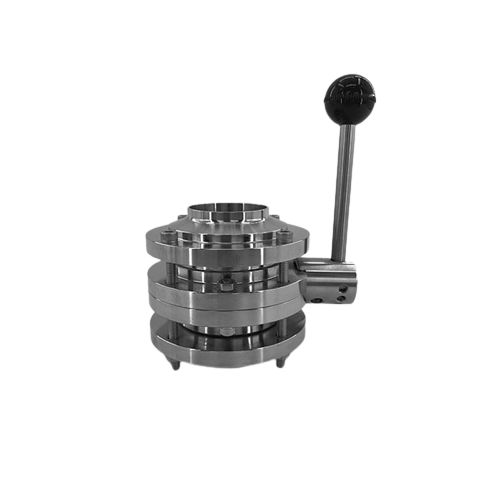

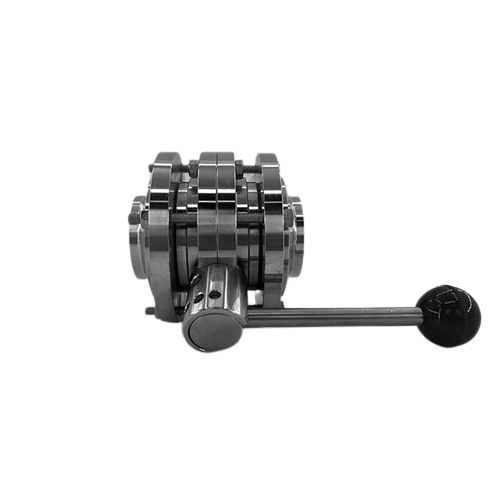

Sanitary Welded Butterfly Valve with Round Pull Handle

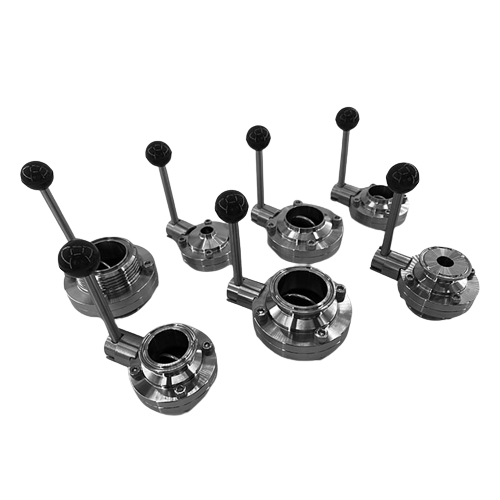

Our Butterfly valve body could be offered with Weld end,Male end,female end,and Clamp end.Our butterfly valves can be installing with different type handles like 4 position pull handle,12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.
The Butterfly valve body and disk are all made from full CNC machined,high grade level polish.
All of the products have been 100%press tested before shipping.
It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
EPDM,Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many
applications in such as food,dairy,beverage,meat processing,chemical,and many other industries.
Tri Clamp Hygenic Butterfly Valve with handle
Novel design,reasonable,unique structure,light weight
Sealing materials are resistant to aging,corrosion and long service life
Widely used in process control occasions such as food,pharmaceuticals,cosmetics,clean steam,alcohol,
Beverages,biochemical industrial processes
The butterfly valve can be operated automatically through an actuator or manually with a handle.
Specification
Item | Three Piece Sanitary Weld Butterfly Valve |
Product name | Three Piece Sanitary Weld Butterfly Valve |
Material | SS304, SS316L |
Size | DN25-DN100 |
End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
Pressure range | 0~10Bar |
Surface | Inner Ra.0.8um or specified |
Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
Customized support | OEM |
Media | Water, Oil, Gas, Air |
Place of Origin | China |
Certification | ISO 9001,CE,TUV,SGS |
Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
Body Type
Exploded view of Butterfly Valve
About Delivery
About Application
