OEM Sanitary Three-piece Manual Butterfly Valves With Gripper Handle Manufacturer

Operating Principles

• Stainless steel sanitary butterfly valves can be opened automatically through actuator or manually with handle

• The handle blocks hygienic butterfly valves in the "open "or closed postion,certainly there are the other postion available.

• The actuator push piston of axial movement into 90 degree so that it controls sanitation butterfly valves.

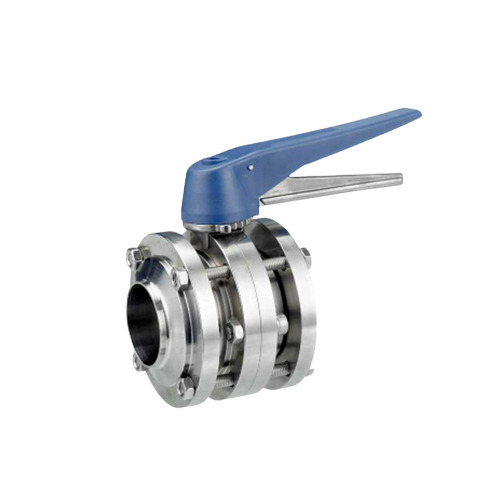

Sanitary Three-piece Manual Butterfly Valves With Gripper Handle

• We can supply Sanitary Butt-Weld Butterfly Valve,Sanitary Tri-Clamp Butterfly Valve,Hygienic Male Thread Butterfly

• Valve,Sanitary Pneumatic Butterfly Valve,Hygienic Electric Butterfly Valve.For the manual handle,we have Stainless Steel Pull Handle,Plastic Multi Position Gripper Handle and Stainless Steel Multi Position Handle.

• The Butterfly valve body and disk are all made from full CNC machined,high grade level polish.

• All of the products have been 100%press tested before shipping.

• It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.

• EPDM,Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications

• in such as food,dairy,beverage,meat processing,chemical,and many other industries.

Standard Design

• Available in sizes from DN10/1/2"to DN200/8"

• The size of multi-position handle uo to DN100 /4"

• The size of pull handle up to DN125/150 6"

• Standard Avaliable:DIN,SMS,ISO,IDF,RJT,IDF,3A

• Connection:weld,clamp,thread,single weld single thread,flange

• Handle:two-position handle,three-position handle,four-position pulling handle,multi-position plastic triggle handle and multi-position stainless steel triggle handle

• Control:position sensor,C-TOP controller,C-TOP controller(AS-I)

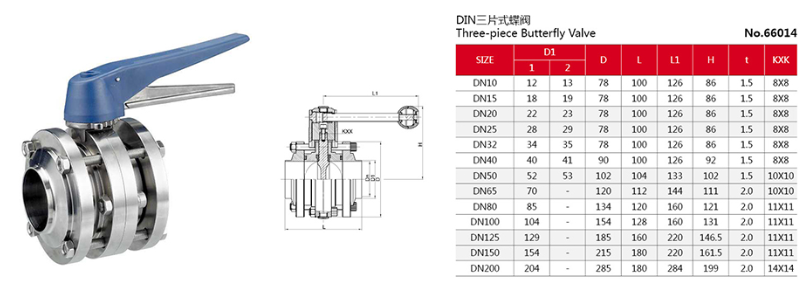

Specification

Body Type

Exploded view of Butterfly Valve

About Delivery

About Application
