OEM Stainless Steel Pneumatic Actuated 3 Piece Ball Valve Supplier

Operating Principles

• Sanitary stainless steel Tri-clamp Straight Ball Valve

• The ball valves can be operated automatically through actuator or manually with the handle.

• The handle blocks the valve in the "open"or "closed"position,certainly there are the other position available.

• The actuator push piston of axial movement into 90 degree so that it controls ball valve.

• The ball valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields.

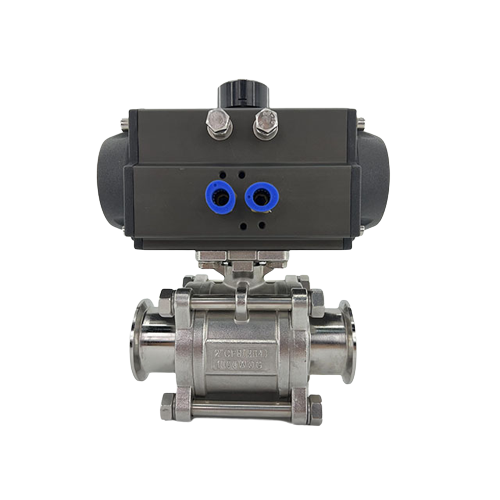

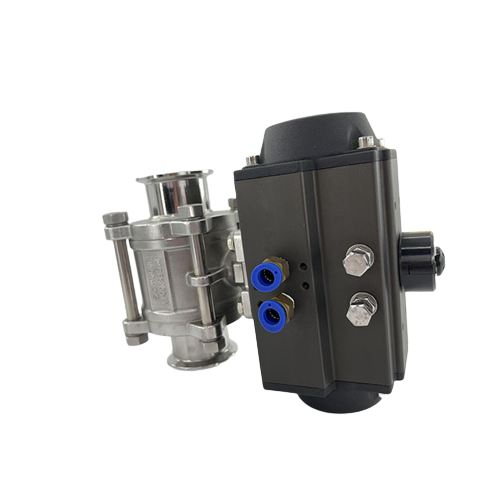

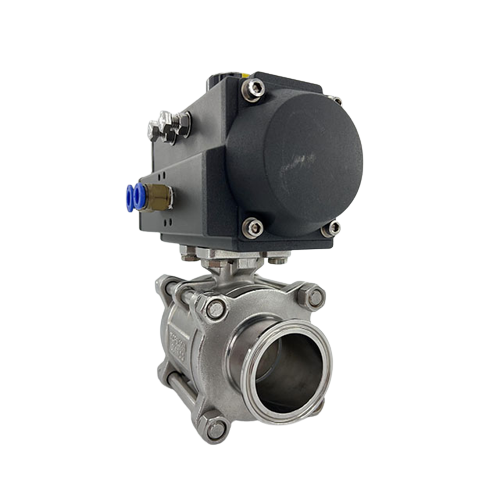

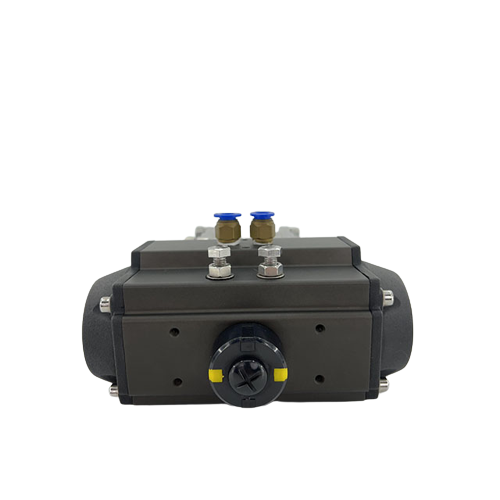

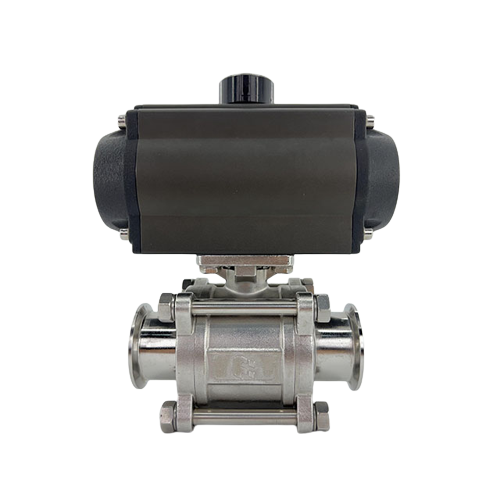

Stainless Steel Pneumatic Actuated 3 Piece Ball Valve

• We can supply Sanitary Pneumatic Butt-Weld 3 PCS Ball Valve,Sanitary Stainless Steel PneumaticThree Piece Ba Valve,Pneumatic Hygienic Male Thread 3 Piece Ball Valve.

•  3-piece sanitary ball valve with ISO direct mounting pad is designed for food biological,pharmaceutics or similar industries.The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing.Cavity filler seats will also help to clean the valve port easily.

Standard Design

• Full port design

• Balanced encapsulated construction minimizes cold flow

• Precision stainless steel balls reduce torque and friction losses while extending sat life

• Lockable handle can prevent accidental actuation

• Integral ISO 5211 mounting pad

• Sizes are available from 1/2"/DN15 to 4"/DN100

• Connection:Welding,Clamp,Male or others upon request.

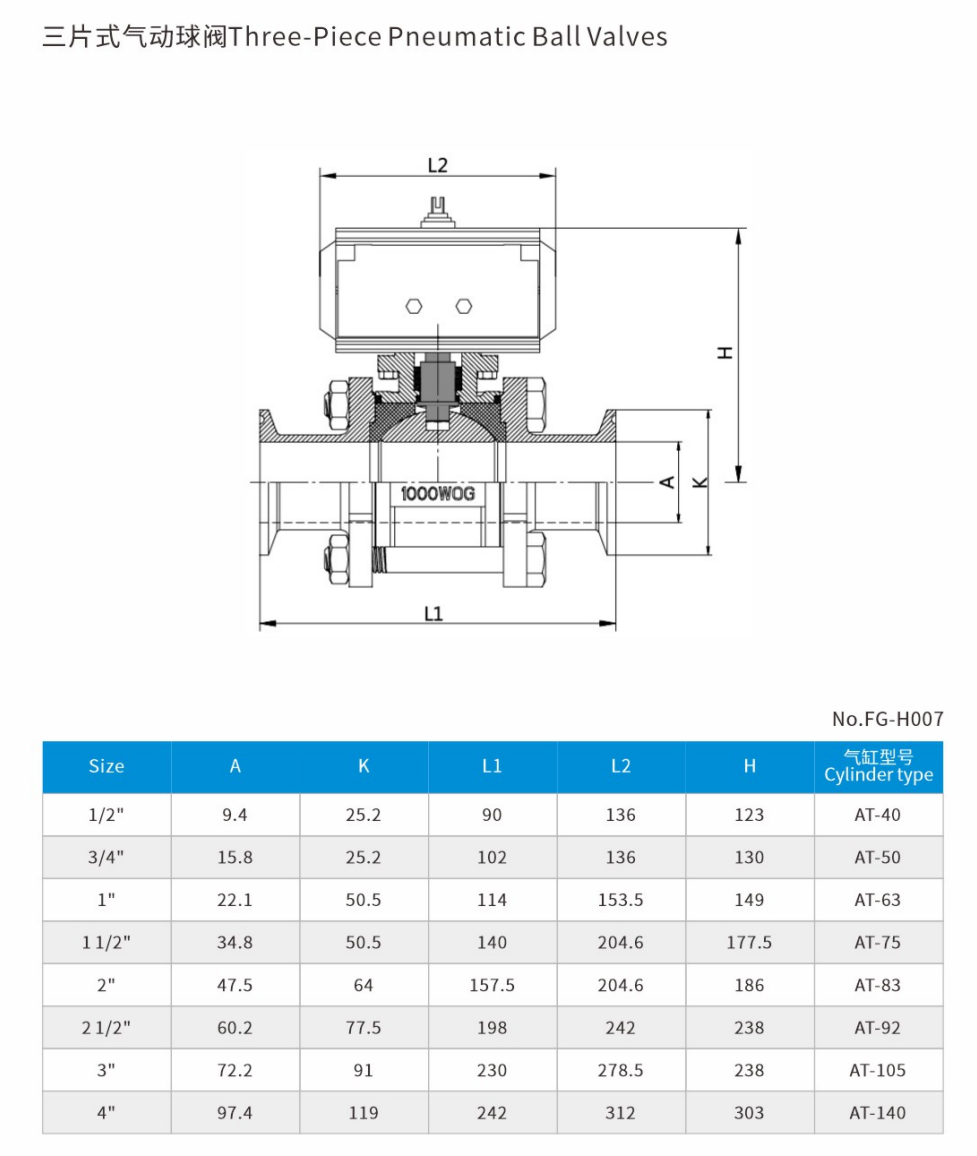

Specification
