FOGO

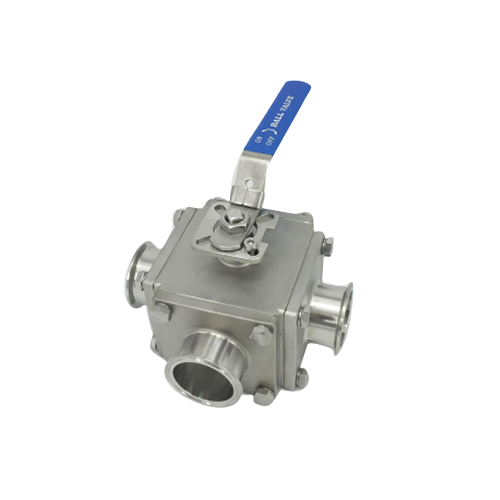

Square Three-way Ball Valve
tri-clamped
ss304, ss316L
1 year

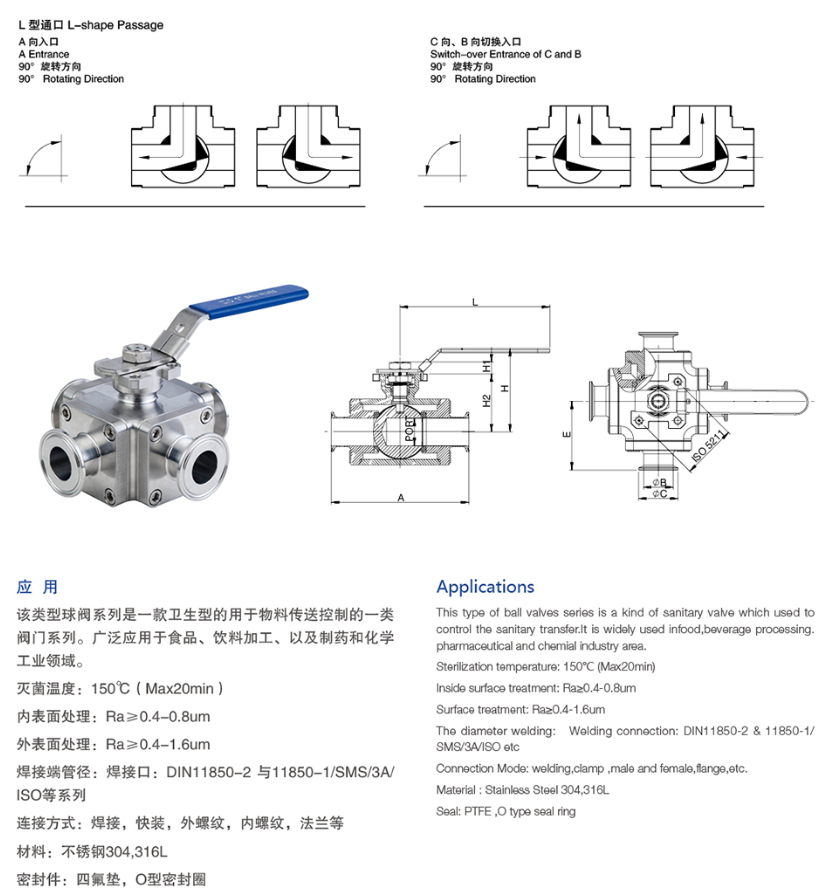

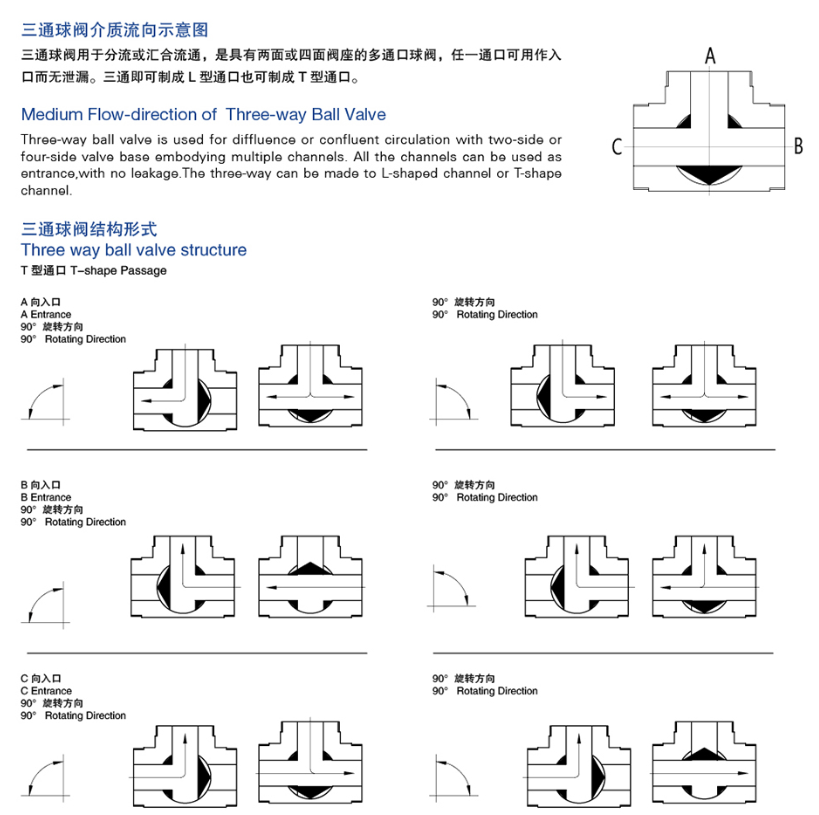

Operating Principles
Sanitary Stainless Steel Tri Clover Ball Valve
The ball valves can be operated automatically through actuator or manually with the handle.
The ball valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields
With clamped connection,this 3 way ball valve is convenient to detach and install.

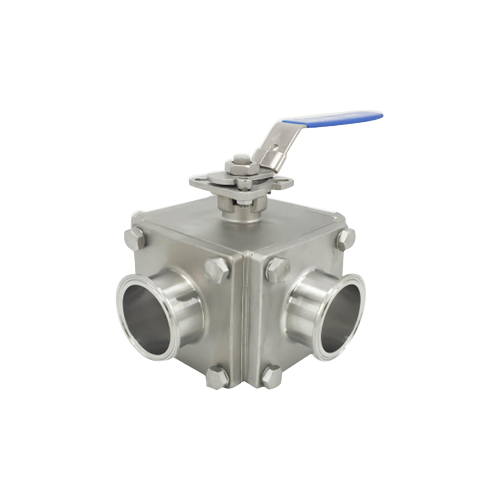

Square Three-way Ball Valve
This type of ball valves series is a kind of sanitary valve which used to control the sanitary transfer.It is widely used in food,beverage processing. pharmaceutical and chemial industry area.
Standard Design
Inside surface treatment:Raz0.4-0.8um
Surface treatment:Raz0.4-1.6um
The diameter welding:Welding connection:DIN11850-2 11850-1/
SMS/3A/ISO etc
Connection Mode:welding,clamp,male and female,flange,etc.
Material Stainless Steel 304,316L
Seal:PTFE,PPL
Specification
| Item | Square Three-way Ball Valve |
| Product name | Square Three-way Ball Valve |
| Material | SS304, SS316L |
| Size | DN25-DN100 |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Gaskets | PTFE FDA 177.1550 Whatever The Connection,It Does Not Change The Total Length Of The Valve |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
