Factory Sanitary Stainless Steel Three Piece Clamped Ball Valve OEM

Operating Principles

• Sanitary stainless steel Tri-clamp Straight Ball Valve

• The ball valves can be operated automatically through actuator or manually with the handle.

• The handle blocks the valve in the "open"or "closed"position,certainly there are the other position available.

• The actuator push piston of axial movement into 90 degree so that it controls ball valve.

• The ball valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields.

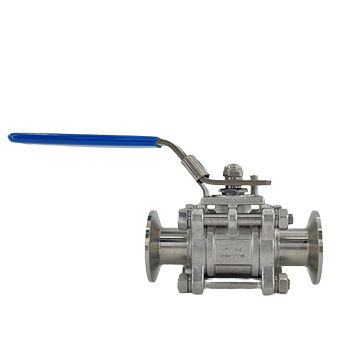

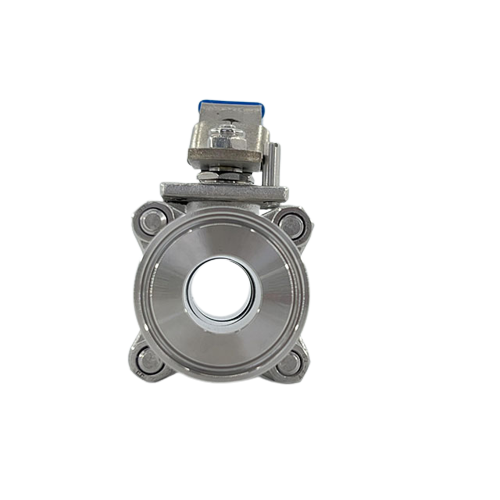

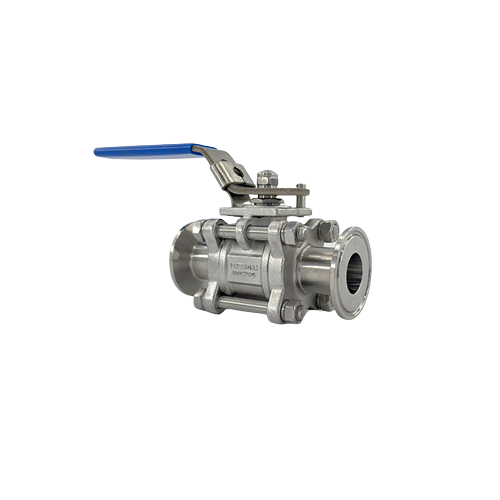

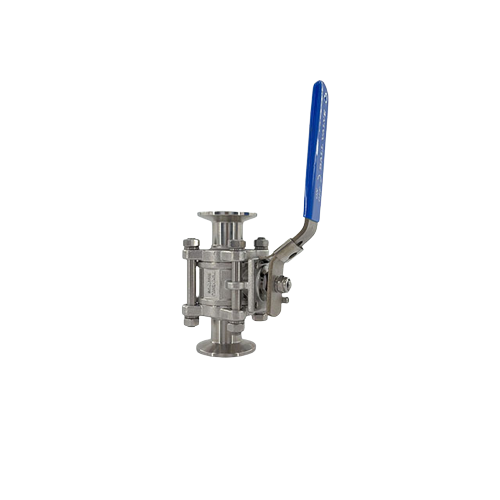

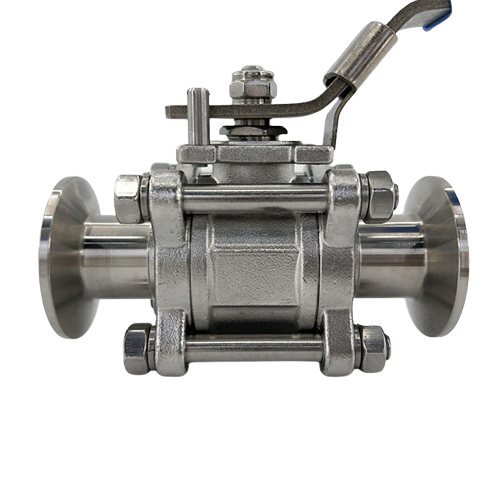

Sanitary Stainless Steel Three Piece Clamped Ball Valve

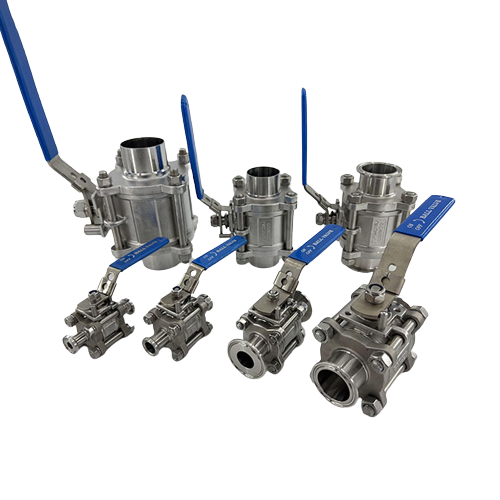

• Sanitary 3 PCS Ball Valve including Sanitary Butt-weld Three Piece Ball Valve,Hygienic Male 3 Pieces Ball Valve,Hygienic Tri-Clamp 3PC Ball Valve,Hygienic Pneumatic 3 PCS Ball Valve,Sanitary Electric Actuator 3 Pieces Ball Valve

• Sanitary 3-piece ball valve with ISO direct mounting pad is designed for food biological,pharmaceutics or similar industries.The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing.Cavity filler seats will also help to clean the valve port easily

• The options on end types can be T-Clamp,Tube weld end,Extended tube weld end.Different material of soft kits will be applicable for different working circumstance.

Standard Design

• Full port design

• Balanced encapsulated construction minimizes cold flow

• Precision stainless steel balls reduce torque and friction losses while extending sat life

• Lockable handle can prevent accidental actuation

• Integral ISO 5211 mounting pad

• Sizes are available from 1/2"/DN15 to 4"/DN100

• Connection:Welding,Clamp,Male or others upon request.

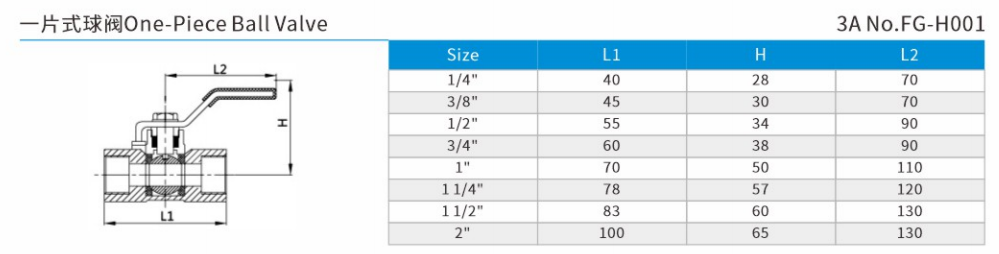

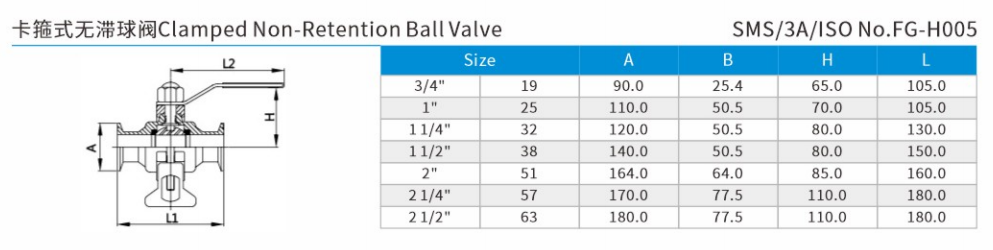

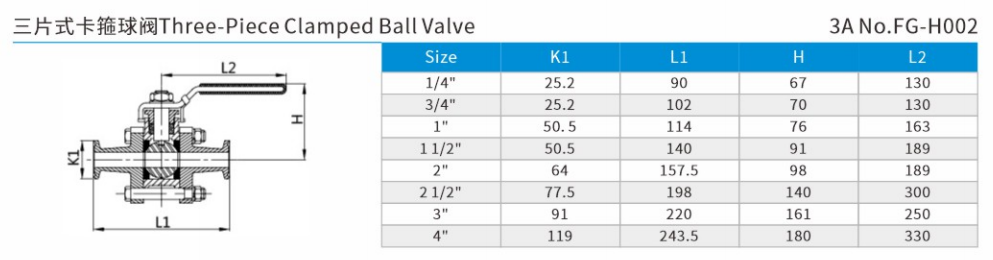

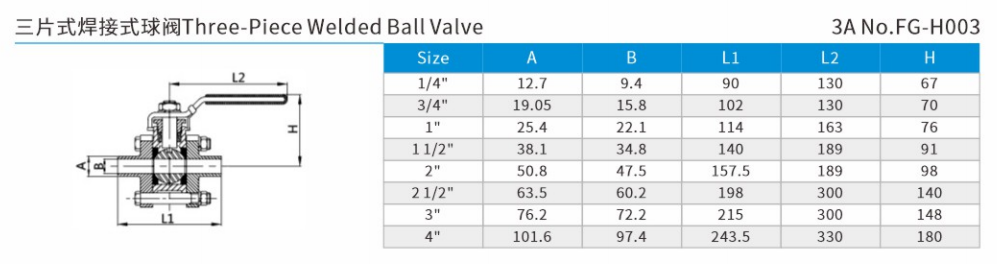

Specification

About Delivery

About Application
