OEM Sanitary Welding Butterfly Valves with Electric Actuator Supplier

Operating Principles

• Stainless steel sanitary butterfly valves can be opened automatically through actuator or manually with handle

• The handle blocks hygienic butterfly valves in the open "or closed postion,certainly there are the other postion available.

• The actuator push piston of axial movement into 90 degree so that it controls sanitation butterfly valves.

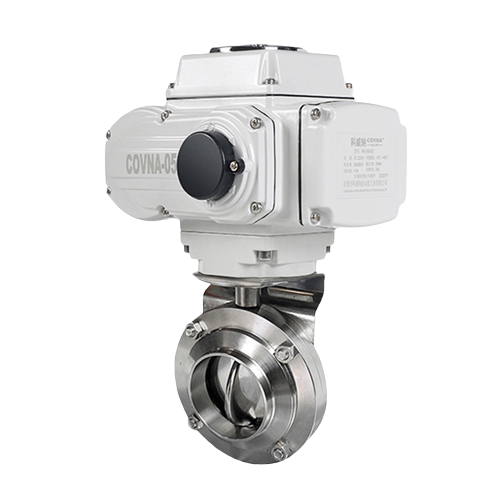

Sanitary Welding Butterfly Valves with Electric Actuator

• We manufacture Electrical Sanitary Butt-Weld Butterfly Valve,Sanitary Tri-Clamp Electric Butterfly Valve,Hygienic Male Thread Electric Butterfly Valve.

• The Butterfly valve body and disk are all made from full CNC machined,high grade level polish.

• All of the products have been 100%press tested before shipping.

• It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.

• EPDM,Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food,dairy,beverage,meat processing,chemical,and many other industries.

Standard Design

• Available in sizes from DN15   1"-6",DN25-DN150

• Standard Avaliable:DIN,SMS,ISO,IDF.RJT,IDF,3A

• Connection:weld,clamp,thread,single weld single thread,flange

• Actuator:pneumatic stainless steel actuator,pneumatic aluminum actuator,electric actuator

• Control:position sensor,C-TOP controller,C-TOP controller(AS-1)

Specification

Body Type

Exploded view of Butterfly Valve

About Delivery

About Application
