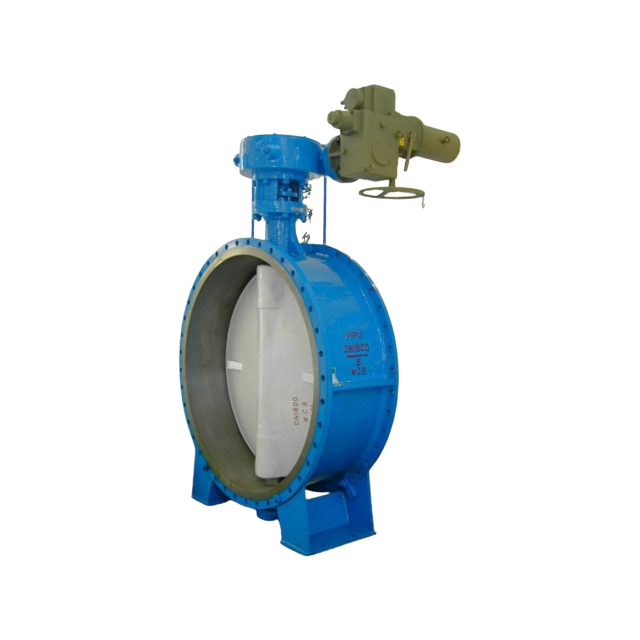

D942 Large Diameter Electric 220V 380V Eccentric Butterfly Valve with Soft Seal Manufacturers

Purpose and functions:

• The electric flange butterfly valve series is a type of automatic butterfly valve equipped with an electric actuator on the flange butterfly valve, which can achieve large-scale centralized control and long-distance control. When working, the operation can be controlled by connecting to 220VAC or 380V or 660V power supply. You can also add a control module and input a control signal (4-20mADC or 1-5VDC) for adjustment and control. You can also add a handwheel for manual control when necessary. Manual control. Select non-electric flange butterfly valve and electric flange butterfly valve according to different process requirements

• Different electric actuators: such as switch type, signal feedback type, explosion-proof type, regulating type, etc.

Features:

• The electric flange butterfly valve is an automatic butterfly valve that can be remotely controlled and has the characteristics of a flange butterfly valve;

• The power supply is the driving energy of the electric ball valve. It has a wide range of power sources and a wide range of applications;

•  It is easy to operate and can easily meet various control requirements. It can be realized by selecting different electric actuators, including signal feedback, flow adjustment, explosion-proof and other functions;

Standard Design

• Design standard: GB/T12238

• Structure length: GB/T12221

• Flange connection size: HG/T 20592

• Inspection and testing: GB/T26480

Specification

Body Type

Materials of Main parts



About Delivery

About Application
