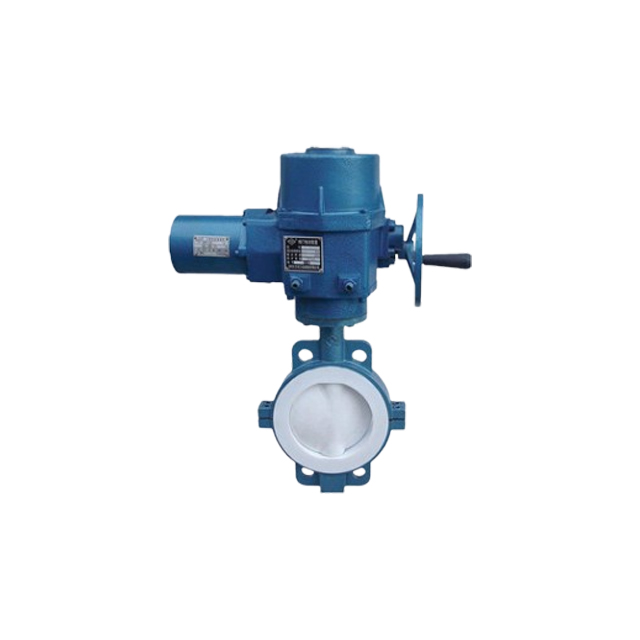

D971 Electric Motorized Actuator Cast Iron Body Disc Wafer PTFE PVDF PVC Fluorine Lined Butterfly Valve Warehouse

-Specifications: DN50-DN2000
-Temperature: less than or equal to 120℃
-Pressure:0.6mpa/1.6mpa

-Applicable media: Air, water, sewage, steam, gas, oil, etc.
-Valve stem material: medium carbon steel, stainless steel (2Cr12), 1Cr18Ni9Ti

Purpose and functions:

Soft-sealing butterfly valves are suitable for regulating flow and intercepting media in water supply, drainage, and gas pipelines with temperatures ≤120°C and nominal pressures ≤1.6MPa.

Features:

Exquisite and reasonable design, unique structure, light weight, quick opening and closing.
The operating torque is small, the operation is convenient, labor-saving and dexterous.
It can be installed at any position and is easy to maintain.
The seals can be replaced, and the sealing performance is reliable to achieve two-way sealing and zero leakage.
The sealing material has the characteristics of aging resistance, corrosion resistance and long service life.

Standard Design

Specification

Item	Electric Motorized Fluorine Lined Butterfly Valve
Product name	Electric Motorized Fluorine Lined Butterfly Valve
Material	Q235A, WCB, CF8,CF8M
Size	DN50-DN2000
End Connection	wafer
Pressure range	0.6mpa/1.6mpa
Drive mode	Turbine, Manual, Pneumatic,Electric
Standard	3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc.
Gasket	PIFE, EPDM, Buna-N, Silicone, FPM etc.
Customized support	OEM
Media	Water, Oil, Gas, Air
Place of Origin	China
Certification	ISO 9001,CE,TUV,SGS
Application	For use in harsh oil and gas fields
