D671
FOGO

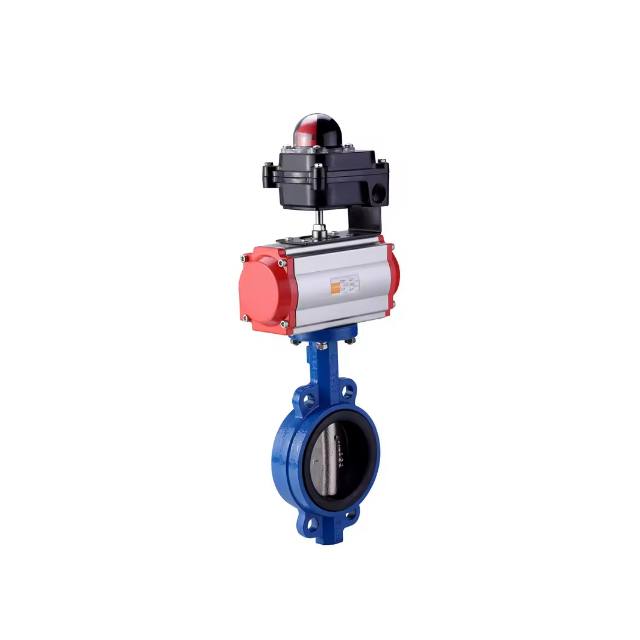

Stainless Steel Pneumatic Actuator Butterfly Valve
wafer
Q235A, SS304,ss316
1 year
Purpose and functions:
It is suitable for regulating flow and intercepting media in water supply, drainage and gas pipelines with temperature ≤120℃ and nominal pressure ≤16MPa, such as food, medicine, chemical industry, petroleum, electric power, metallurgy, urban construction, textile, papermaking, etc.
Features:
Exquisite and reasonable design, unique structure, light weight, quick opening and closing.
The operating torque is small, the operation is convenient, labor-saving and dexterous.
It can be installed at any position and is easy to maintain.
The seals can be replaced, and the sealing performance is reliable to achieve two-way sealing and zero leakage.
The sealing material has the characteristics of aging resistance, corrosion resistance and long service life.
Standard Design
Design standard: GB/T12238
Structure length: GB/T12221
Flange connection size: HG/T 20592
Inspection and testing: GB/T26480
Specification
| Item | Electric Motorized Fluorine Lined Butterfly Valve |
| Product name | Electric Motorized Fluorine Lined Butterfly Valve |
| Material | Q235A, WCB, CF8,CF8M |
| Size | DN50-DN2000 |
| End Connection | wafer |
| Pressure range | 0.6mpa/1.6mpa |
| Drive mode | Turbine, Manual, Pneumatic,Electric |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | For use in harsh oil and gas fields |
Body Type
Materials of Main parts
About Delivery
About Application
