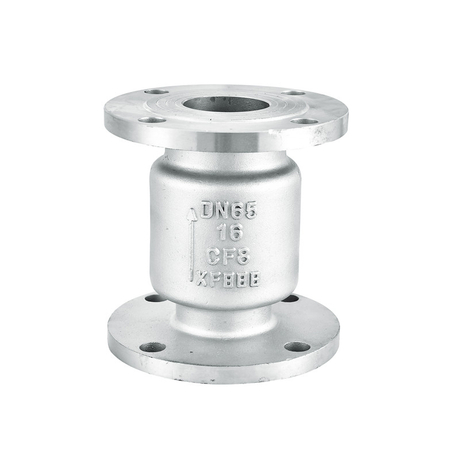

Stainless Steel Flanged Vertical Check Valve: The Vertical Guardian Against Backflow in Pipeline Systems

      In the intricate web of industrial piping networks, preventing fluid backflow is not merely a convenience but a fundamental requirement for ensuring overall system safety, protecting expensive critical equipment, and maintaining uninterrupted process stability. The stainless steel flanged vertical check valve emerges as a particularly robust and reliable solution specifically designed to meet this crucial demand. Characterized by its mandatory vertical installation and robust flanged connections, this type of check valve combines mechanical strength with exceptional functional reliability to safeguard piping systems across a vast spectrum of demanding industries.

Design and Operational Principle

      The defining feature of this valve is its installation orientation—it is designed to operate in vertical pipelines. This positioning leverages the force of gravity to assist in valve closure, enhancing its responsiveness. The flanged ends provide a strong, bolted connection that is ideal for high-pressure applications, resistant to vibration, and easier to maintain compared to threaded alternatives. Internally, the valve typically employs a spring-assisted disc or a lift-check mechanism. Under sufficient upstream pressure, the disc lifts to allow forward flow. The moment the forward flow pressure drops or ceases, the combination of the spring force and the disc's own weight ensures a rapid, positive closure. This swift action effectively blocks reverse flow and significantly mitigates the risk of water hammer, a potentially destructive pressure surge that can damage pipes, pumps, and other system components.

Key Industrial Applications

      The synergy of stainless steel construction, flanged design, and vertical operation makes this valve indispensable in numerous critical sectors:

• Chemical and Petrochemical Industries: In plants handling aggressive acids, caustic alkalis, and volatile hydrocarbons, the corrosion resistance of 316 or 304L stainless steel is paramount. These valves are installed in vertical discharge lines of pumps and reactors to prevent the dangerous backflow of mixed or reactive chemicals, ensuring process integrity and safety.

• Water and Wastewater Management: From large-scale municipal water supply networks to advanced wastewater treatment facilities, these valves are crucial. They are commonly found at the outlet of vertical pump discharges to prevent the backflow of water or treated effluent, protecting pump equipment from reverse rotation and maintaining the hygienic separation of different fluid zones.

• Power Generation Facilities: Whether in thermal, nuclear, or hydroelectric power plants, reliable cooling systems are vital. Stainless steel flanged vertical check valves are used in vertical lines of cooling water circuits, feedwater systems, and auxiliary service lines to maintain unidirectional flow, thereby preventing energy losses and protecting turbines, condensers, and pumps.

• Marine and Offshore Applications: The demanding environment of ships and offshore platforms, with constant exposure to saline water and harsh conditions, requires equipment with high corrosion resistance. These valves are employed in seawater cooling, ballast management, and firefighting systems, where their reliable operation is critical for vessel stability and safety.

• HVAC and Building Services: In large commercial or institutional buildings, these valves are used in vertical risers of chilled and hot water cycles for air conditioning and heating systems. They prevent the reverse circulation of water, which helps maintain designed temperature gradients and system efficiency.

• General Industrial Manufacturing: In any industrial setting where fluids are transported through vertical pipelines—be it in food processing, pharmaceutical manufacturing, or pulp and paper production—these valves provide a essential line of defense against flow reversal.

      In conclusion, the stainless steel flanged vertical check valve is far more than a simple passive component. It is an actively engineered safeguard, a dedicated vertical guardian that ensures the unidirectional integrity of fluid flow. Its robust construction and reliable performance make it an indispensable element in protecting infrastructure, enhancing operational safety, and ensuring process continuity across the modern industrial landscape.
