FOGO

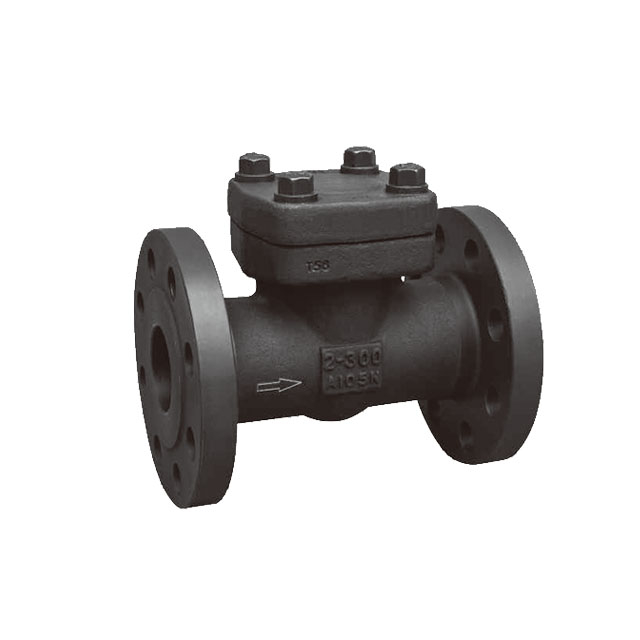

Forged steel lift check valve
Flange
A105
1 year
Standards and specifications
Designed and manufactured according to API602,ASME B16.34.
Valve structure length in accordance with ASME B16.10 regulations.
Flange end dimensions according to ASME B16.5(RF,? FM,? RJ)
Inspection and test in accordance with API598.
Structural characteristics: B·B(middle bolt) W·B(middle weld) Flow rate: full diameter (FP) reduced diameter RP.
Main material: A105N, LF2, LF3, F11, F5, F22, F304, F304L, F316, F316L, F321, F304H, F316H, F321H, F51, F53, F55, F91, F92, F347, 310S, 800H, 600, 625 special materials, etc.

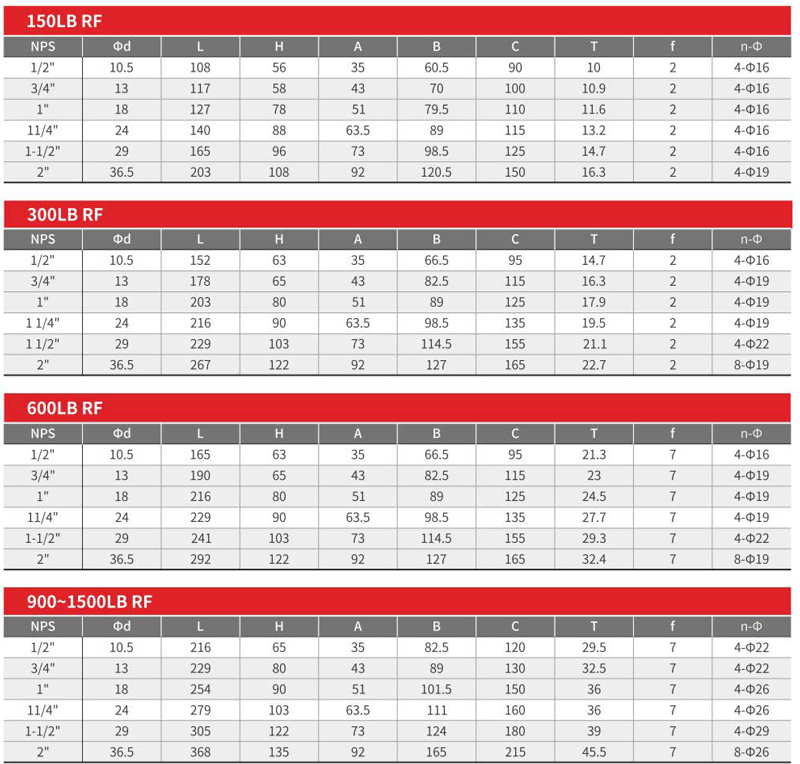

Flange check valve parameters:
About Delivery
About Application
