D3 (6/9) 71X
FOGO

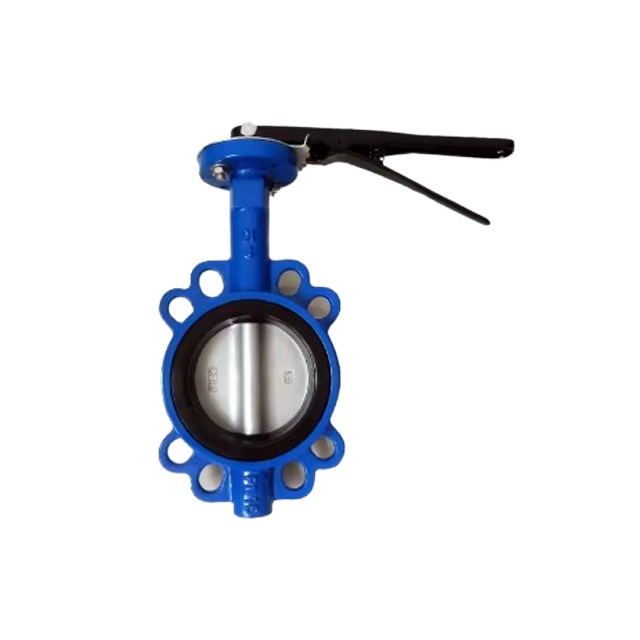

Wafer Type Centerline Butterfly Valve
Flange
Q235A, SS304,ss316
1 year
Purpose and functions:
A wafer-type centerline butterfly valve. The valve body includes an annular valve seat, an elastic lining and a butterfly plate. The butterfly plate is rotated 90° through the valve shaft and enters the gasket to control the fluid. Depending on the model and size, operating pressures up to 25 bar and medium temperatures up to 210°C are possible. Most often, these valves are used to control pure liquids, but they can also be used with other media such as gases through special selection. Due to the wide variety of materials, butterfly valves are suitable for a wide range of industries, such as chemical industry, water treatment, etc.
Features:
It has a simple structure, is compact and lightweight, and is easy to transport, install and disassemble.
90° opening and closing, fast switching. The operating torque is small, labor-saving and lightweight.
Good sealing performance, long service life and zero leakage.
Choose different parts materials, which can be applied to a variety of media.
The flow characteristics are similar to a straight line and the adjustment performance is good.
Standard Design
Design standard: GB/T12238
Structure length: GB/T12221
Flange connection size: HG/T 20592
Inspection and testing: GB/T26480
Specification
| Item | Wafer Type Centerline Butterfly Valve |
| Product name | Wafer Type Centerline Butterfly Valve |
| Material | Q235A, WCB, CF8,CF8M |
| Size | DN40 to DN1200 |
| End Connection | Flanged |
| Pressure range | 0.25mpa-2.5mpa |
| Drive mode | Turbine, Manual, Pneumatic, |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | For use in harsh oil and gas fields |
Body Type
Materials of Main parts
About Delivery
About Application
