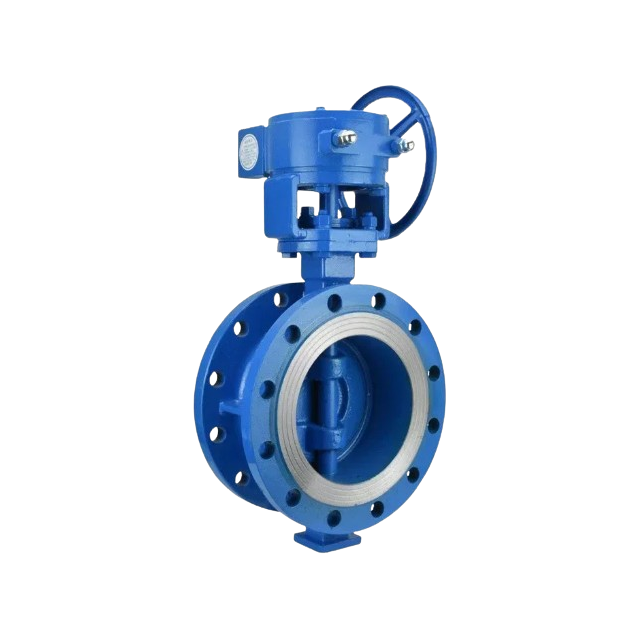

CF8M Three-eccentric Two-way Sealing Butterfly Valve
Flange
Q235A, WCB, CF8,CF8M
1 year
Purpose and functions:
Flange type triple eccentric butterfly valve has excellent two-way sealing function. It adopts a three-eccentric multi-layer metal sealing structure, has no mechanical wear, and can achieve zero leakage. It is used to adjust flow, cut off or The best device for connecting fluids.
The flange type triple eccentric butterfly valve controls the flow of the medium through the rotation of the butterfly plate. It adopts three eccentric designs, that is, the axis of the butterfly plate deviates from the axis of the pipeline, the axis of the butterfly plate deviates from the axis of the sealing ring, and the thickness of the butterfly plate is uneven. This design can effectively reduce operating torque and reduce wear on the sealing ring, thereby extending the service life of the valve.
Features:
The sealing surface of the butterfly plate is made of cobalt-based hard alloy surfacing. The sealing surface is wear-resistant and has a long service life.
The large-sized butterfly plate adopts a quilted frame structure, which has high strength, large flow area and small flow resistance.
This valve has a two-way sealing function. It is not restricted by the flow direction of the medium or affected by the spatial position during installation. It can be installed in any direction.
The driving device can be installed in multiple positions (rotated 90° or 180°), making it convenient for users to use.
This valve adopts a three-eccentric sealing structure, with almost no wear on the valve seat and butterfly plate, and has a sealing function that becomes tighter as you look.
The sealing ring is made of stainless steel, which has the dual advantages of metal hard sealing and elastic sealing. It has excellent sealing performance no matter under low or high temperature conditions, and has the characteristics of corrosion resistance and long service life.

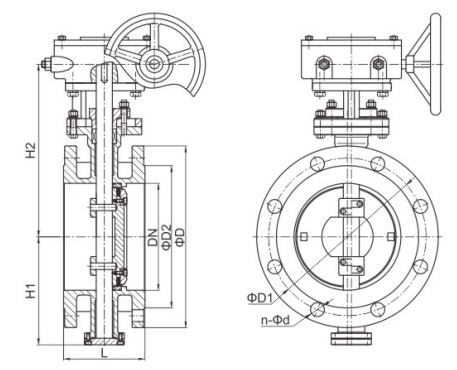

Standard Design
Design standard: GB/T12238
Structure length: GB/T12221
Flange connection size: HG/T 20592
Inspection and testing: GB/T26480

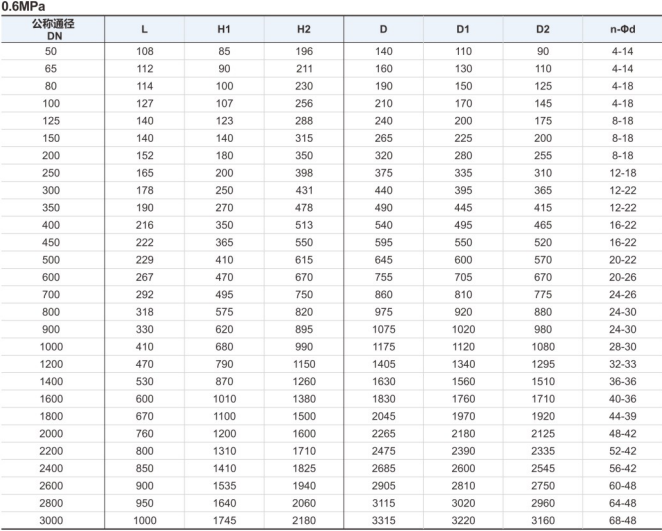

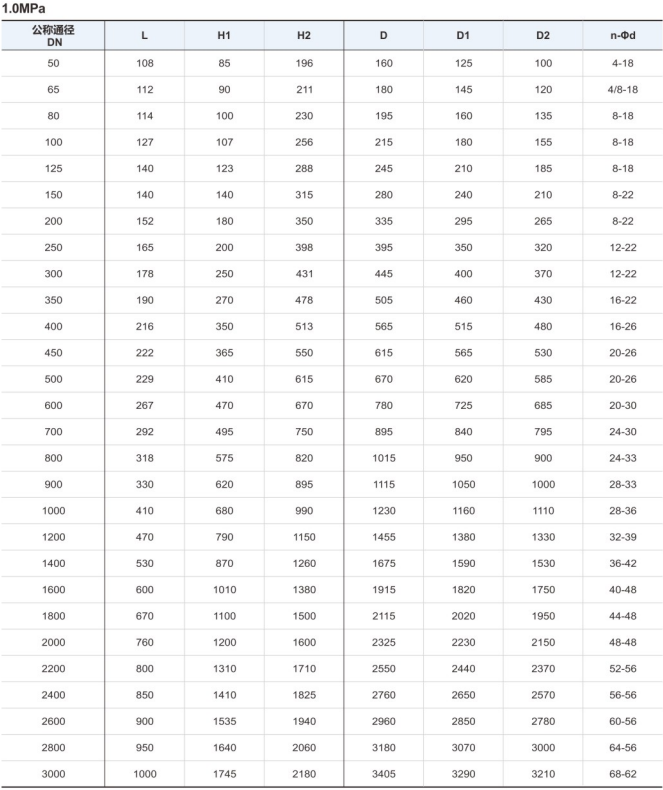

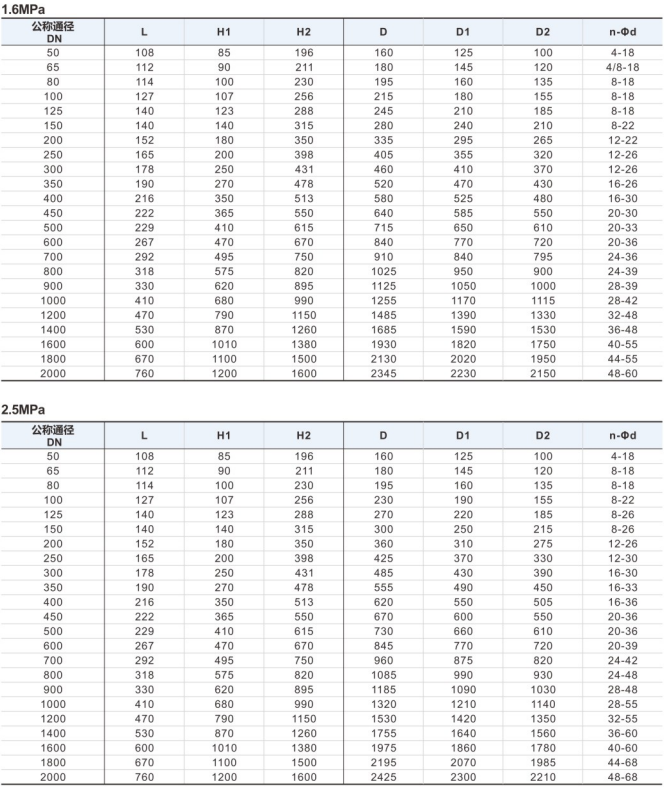

Specification
| Item | CF8M Three-eccentric Two-way Sealing Butterfly Valve |
| Product name | CF8M Three-eccentric Two-way Sealing Butterfly Valve |
| Material | Q235A, WCB, CF8,CF8M |
| Size | DN50 to DN3000 |
| End Connection | Flanged |
| Pressure range | 0.6mpa/2.5mpa |
| Drive mode | Turbine, Manual, Pneumatic, |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | For use in harsh oil and gas fields |
