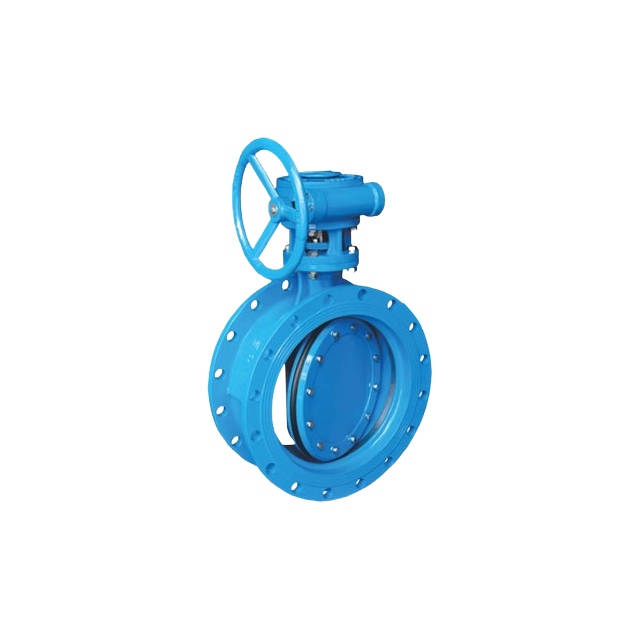

Flange Type Two Eccentric Soft Seal Butterfly Valve
Flange
Q235A, SS304,ss316
1 year
Purpose and functions:
The flange-type double eccentric soft-seal butterfly valve has a valve body, a valve cover and a valve stem. The valve stem is sleeved with a butterfly plate, and a driving device for driving the valve stem is provided above the valve body. The butterfly plate is eccentrically set, so There is an upper sleeve and a lower sleeve between the valve body and the valve stem. There is a packing layer above the upper sleeve, and the packing layer is located below the valve cover; the valve body is provided with a seal with an oblique conical structure on the inner wall. lock up. The utility model has a simple structure and reasonable design. The butterfly valve is easy to operate, saves time and effort, and the butterfly plate is set eccentrically, which can greatly eliminate unnecessary excessive extrusion and scratching between the butterfly plate and the valve body, and reduce the opening time. resistance, reducing wear, extending the service life of the butterfly valve, and improving the sealing performance of the butterfly valve.
Features:
Simple and compact structure, light weight, 90° rotation, flexible and quick opening and closing.
Adopt an eccentric structure to reduce the friction of the sealing ring and extend the service life of the valve.
The sealing structure is reasonably designed to achieve safe sealing and zero leakage, and can be applied to harsh working conditions.
Replace the raft sealing ring, O-ring, valve plate, rotating shaft and other materials, which can be applied to a variety of media and different temperatures.
The valve body has foot support, which can realize vertical or horizontal installation of the valve.
Easy to assemble and disassemble and easy to maintain.

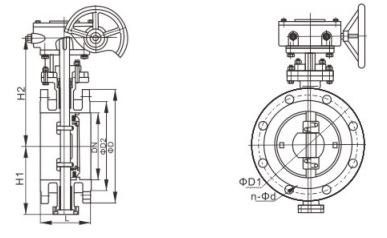

Standard Design
Design standard: GB/T12238
Structure length: GB/T12221
Flange connection size: HG/T 20592
Inspection and testing: GB/T26480

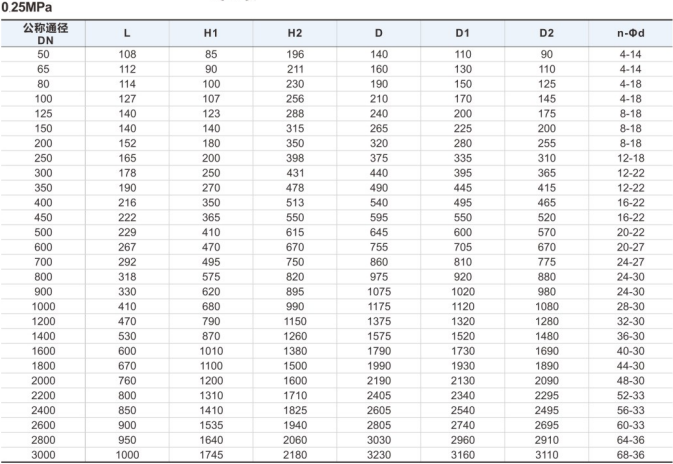

Specification
| Item | Flange Type Two Eccentric Soft Seal Butterfly Valve |
| Product name | Flange Type Two Eccentric Soft Seal Butterfly Valve |
| Material | Q235A, WCB, CF8,CF8M |
| Size | DN50 to DN3000 |
| End Connection | Flanged |
| Pressure range | 0.25mpa-2.5mpa |
| Drive mode | Turbine, Manual, Pneumatic, |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | For use in harsh oil and gas fields |
