SD(3/6/9)41(X/F/H)-(6/10/16)
FOGO

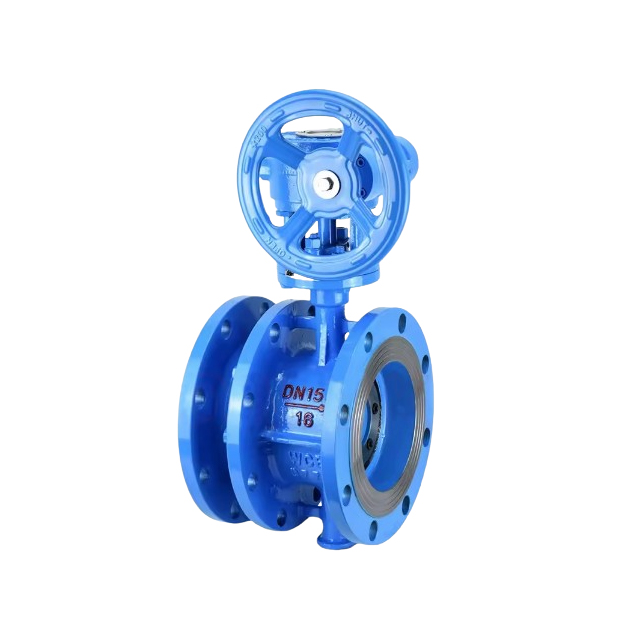

C.P.R Cast Steel Worm Gear Flange Telescopic Butterfly Valve
Flange
Ductile iron, carbon steel, stainless steel
1 year
Purpose and functions:
The flange-type telescopic butterfly valve has the function of automatically compensating for thermal expansion and contraction of pipelines to facilitate loading and unloading. It is used on industrial pipelines with temperatures below 425°C and nominal pressures below 1.6MPa in petroleum, chemical, electric power, papermaking, water supply and drainage, and municipal construction. It is a device for regulating flow and breaking off fluid.
Features:
Unique structure, flexible design, light weight, labor-saving, and quick to open and close.
The telescopic butterfly valve can not only compensate for the thermal expansion and contraction caused by the temperature difference of the pipeline, but also facilitate the installation and replacement of the maintenance valve.
The sealing part can be adjusted and replaced, and the sealing performance is reliable.
Standard Design
Design standard: GB/T12238
Flange connection size: HG/T 20592
Inspection and testing: GB/T26480
Specification
| Item | C.P.R Cast Steel Worm Gear Flange Telescopic Butterfly Valve |
| Product name | C.P.R Cast Steel Worm Gear Flange Telescopic Butterfly Valve |
| Material | Ductile iron, carbon steel, stainless steel |
| Size | DN100 to DN2000 |
| End Connection | Flanged |
| Pressure range | 0.6mpa/1.0mpa/1.6mpa |
| Drive mode | Turbine, Manual, Pneumatic, |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | For use in harsh oil and gas fields |

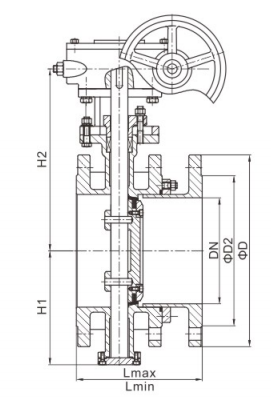

Body Type

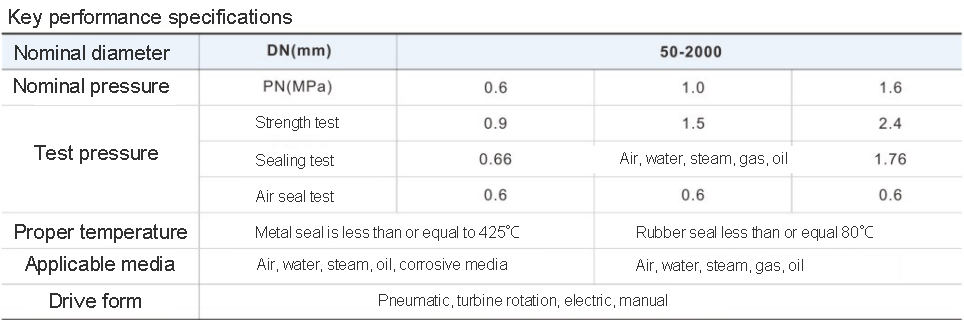

Key performance specifications

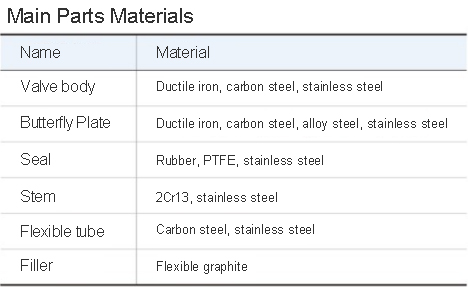

Materials of Main parts
About Delivery
About Application
