FOGO

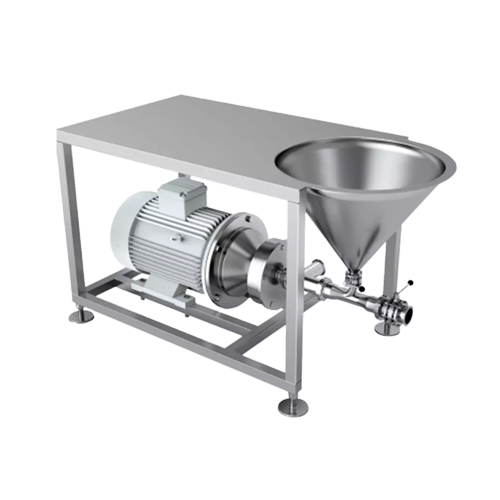

High Efficient Emulsifier Homogenizer Mixer System
Clamped
ss304, ss316L
1 year
Operating Principles
1.Connect the power supply (such as AC380V)
2.Check the small tank of the cooling water pump to ensure it has been filled with coolant (the medium can be pure water)
3.Check the valve of the powder feeding hopper to ensure it is closed
4.Connect the emulsion pump feed to the tank outlet,with the tank outlet valve closed
5.Pour powder into the feeding hopper and ensure that the valve of the feeding hopper is closed
6.Open the outlet valve of the storage tank and ensure that the emulsion pump is connected to the liquid
7.Press the emulsification pump switch on the control panel,and the green indicator will light up;Press the power pump switch again,and the green indicator light will light up (note:press the emulsion pump first and then the power pump button,otherwise
the power pump will not start)
8.Ensure smooth discharge of the batching machine,and then open the feeding hopper valve.The valve opening and closing amplitude can control the powder feeding speed.
9.Complete the work
TRL-B High Efficient Online Mixer System
TRL-B efficient online mixer system is the latest generation of solid and liquid,liquid and the liquid fast,efficient hybrid systems equipment.The system has powerful Central vacuum of power system to ensure operation of the system efficient,safe and reliable,but also the clever design of a set of precise and bite Rotor will close subsystems,making efficient online mixer with a variety of unique and mutual reunification of the Function.In the unique and compact structure of the system,two systems synergy,working together,so that on-homogeneous materials in a small space rapidly and thoroughly mixed and heterogeneous,and may even be a meticulous verification of stability to repeat Production results
Standard Design
Standards:DIN,SMS,ISO/IDF,BS/RJT,ASME/BPE
End Connections:Clamp,Union,Butt-weld,or others upon request
Specification
| Item | TRL-B High Efficient Online Mixer System |
| Product name | TRL-B High Efficient Online Mixer System |
| Material | SS304, SS316L |
| Power of In-line Mixer | 4-37kw |
| Sealing Material | EPDM,Silicone,FKM,PTFE.All material comply with FDA21CFR117.2600 |
| Rotation Speed of inline Mixer | 2900/3500/1450rpm (Homogeneous Pump) |
| Flow rate | 0.5-40m3h |
| Voltage | 220V,240V,380V,420V,440V,480V,Ect |
| Power Suction Flow Rate | 0-5m3/h |
| Max.Pressure | 10 bar (145psi) |
| Maximum Temperature | 130C/266F(30min CIP/SIP) |
| End Connection | Butt-weld, Tri-clamp, Union, Thread, Flange |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food Industry,Dairy,Homogeneous Mixed Milk Products,Biological Pharmaceutical Industry,Cosmetics Industry,Chemical industry,Homogeneous production of PVC plasticizers,Petrochemical Industry |
