FOGO

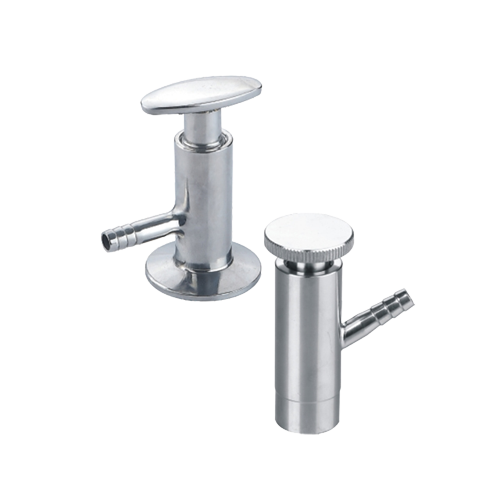

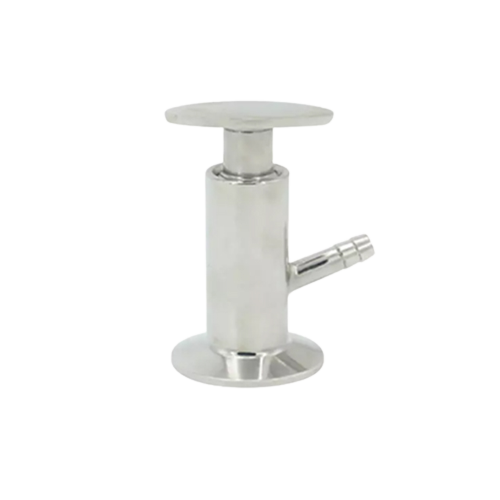

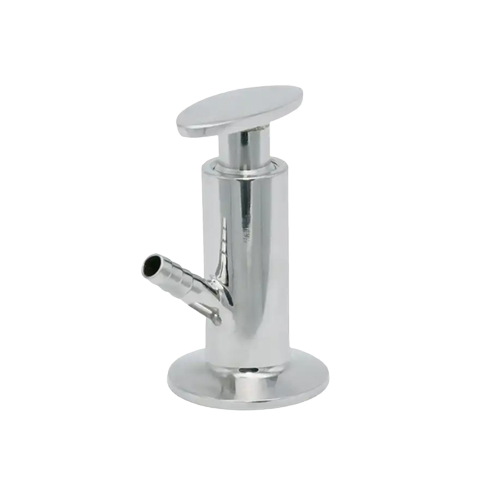

Sanitary Stainless Steel Clamped Sampling Valve
tri-clamped
ss304, ss316
1 year
Operating Principles
Sample valve offers a truly hygienic design.EPDM seats ensure positive seal and ears allow for pigtail hook up
Replaceable seat assembly and SS304 construction makes for a long term sanitary solution for tank or process sampling
Sanitary Stainless Steel Clamped Sampling Valve
Our Sanitary Sampling Valve including Stainless Steel Manual Sampling Valve,Sanitary Clamped Sample Valve, Hygienic Butt Weld Sampling Valve,Hygienic Thread Male Sampling Valve,Pneumatic Sampling Valve,Sanitary Aseptic Sample Valve.
A Sampling Valve is a type of valve used in process industries that allows taking a representative portion of a fluid gases,liquids,fluidized,solids,or slurries to test (e.g.by physical measurements,chemical analysis. microbiological examination),typically for the purposes of identification,quality control,or regulatory assessment.It is a valve used for sampling
The Sampling Valve allows the operator to extract a sample of the product from the production line or reactor and safely store it for transportation to the laboratory where it will be analysed or to the archive room where it can be retrieved for further use.
In chemical plants,a sample can be taken during the process to ensure that the output meets specifications (or that the quality is acceptable),before shipping the chemical good or before accepting the chemical product.
Standard Design
Available Size:1/4"-1
End connection:weld,triclamp or thread
Handle:round type hand
Specification
| Item | sanitary sample valve |
| Product name | sanitary sample valve |
| Material | SS304, SS316L |
| Size | 1/4"-1 1/2", |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0.2Mpa |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
About Delivery
About Application
Operating Principles
Sample valve offers a truly hygienic design.EPDM seats ensure positive seal and ears allow for pigtail hook up
Replaceable seat assembly and SS304 construction makes for a long term sanitary solution for tank or process sampling
Sanitary Stainless Steel Clamped Sampling Valve
Our Sanitary Sampling Valve including Stainless Steel Manual Sampling Valve,Sanitary Clamped Sample Valve, Hygienic Butt Weld Sampling Valve,Hygienic Thread Male Sampling Valve,Pneumatic Sampling Valve,Sanitary Aseptic Sample Valve.
A Sampling Valve is a type of valve used in process industries that allows taking a representative portion of a fluid gases,liquids,fluidized,solids,or slurries to test (e.g.by physical measurements,chemical analysis. microbiological examination),typically for the purposes of identification,quality control,or regulatory assessment.It is a valve used for sampling
The Sampling Valve allows the operator to extract a sample of the product from the production line or reactor and safely store it for transportation to the laboratory where it will be analysed or to the archive room where it can be retrieved for further use.
In chemical plants,a sample can be taken during the process to ensure that the output meets specifications (or that the quality is acceptable),before shipping the chemical good or before accepting the chemical product.
Standard Design
Available Size:1/4"-1
End connection:weld,triclamp or thread
Handle:round type hand
Specification
| Item | sanitary sample valve |
| Product name | sanitary sample valve |
| Material | SS304, SS316L |
| Size | 1/4"-1 1/2", |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0.2Mpa |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
