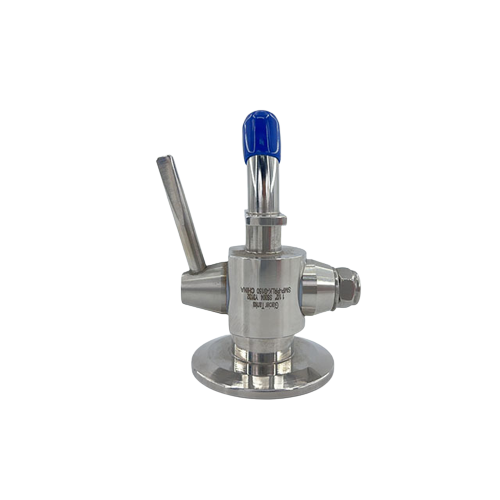

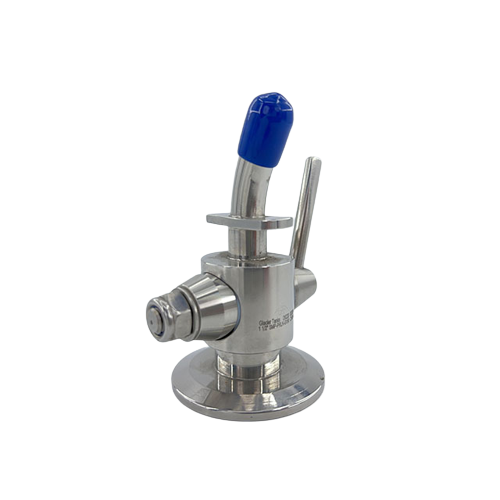

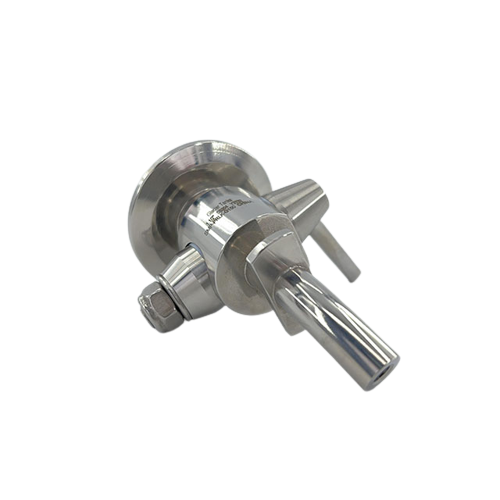

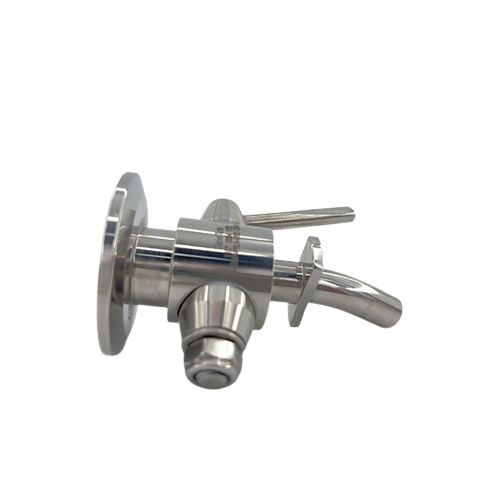

Sanitary Stainless Steel Clamped Plug Type Sampling Valve For Beer Brewery Factory

-Connection:clamp, threaded, flange, welding

-Surface treatment: smooth, non-porous, easy to clean and disinfect

-Seamless connection, strong sealing, easy to clean and disassemble

-Automation and control: can be integrated with automation systems

-Power: Options for manually, pneumatic, or electrically operated actuators provide versatility in control

Operating Principles

Sample valve offers a truly hygienic design.EPDM seats ensure positive seal and ears allow for pigtail hook up
Replaceable seat assembly and SS304 construction makes for a long term sanitary solution for tank or process sampling

Sanitary Stainless Steel Clamped Plug Type Sampling Valve For Beer Brewery

Stainless Steel Plug Type Sampling Valve,sanitary design,straight diameter,no rubber inside,taper seal,suitable for beer,beverage,container equipment sampling.

Standard Design

Available in size:BSP or NPT male thread 1/4",3/8",1/2"3/4";clamp diameter 25.4mm or 50.5mm
Standards:DIN,SMS,ISO IDF,BS RJT,ASME BPE.
End connections:thread,clamp,or others upon request
Corresponding size can be provided upon request

Specification

Item	Sanitary Stainless Steel Clamped Plug Type Sampling Valve
Product name	Sanitary Stainless Steel Clamped Plug Type Sampling Valve
Material	SS304, SS316L
Size	1/4"-1 1/2",
End Connection	Tri-clamp, Welding, Threaded, Flanged etc.
Pressure range	0.2Mpa
Standard	3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc.
Customized support	OEM
Media	Water, Oil, Gas, Air
Place of Origin	China
Certification	ISO 9001,CE,TUV,SGS
Application	Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc.
