Sanitary Stainless Steel Self-priming Pump
Clamped
ss304, ss316L
1 year
Operating Principles
Pump applies modern new technology and new concept to continuously renovate production technology of
centrifugal pump.The new generation sanitary WCP model centrifugal pump is the pride of &0 Pump.It conforms to GMP requirements with good quality.In addition,the pump performance is better,the efficiency is higher,the service life is longe so that users get more benefits.
The research,development,design and application engineer of &0 Pump have rich technological backgrounds in their espective fields.You can use their experience to solve various pump delivering problems or consult us for technological system design.With their rich knowledge and imagination,our engineers help customers enhance productivity and increase their profits.
Medicine:Transfusion,distilled water,high purity water,traditional Chinese medicine liquid containing granules(3-
6mm),leaching solution
Cosmetics:Dye,alcohol,essential oil
Dairy:Whey,cream,milk,sugar
Beverage:Alcohol,beer,wort,fermentation solution,fruit juice beverage,beverage containing granules

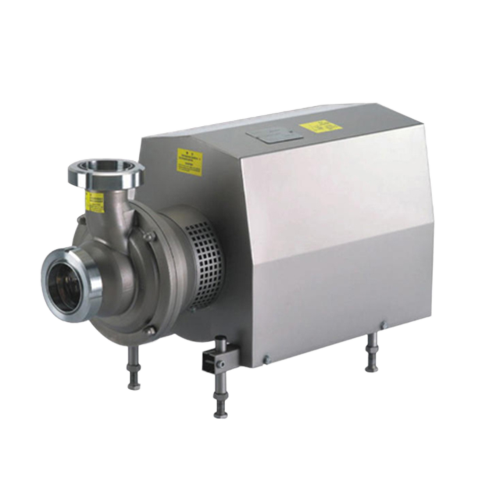

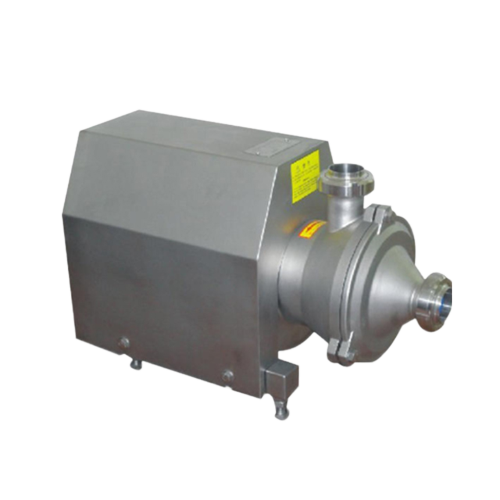

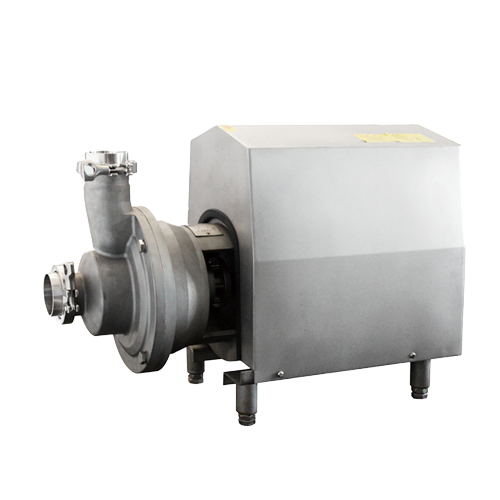

Sanitary Stainless Steel Self-priming Pump

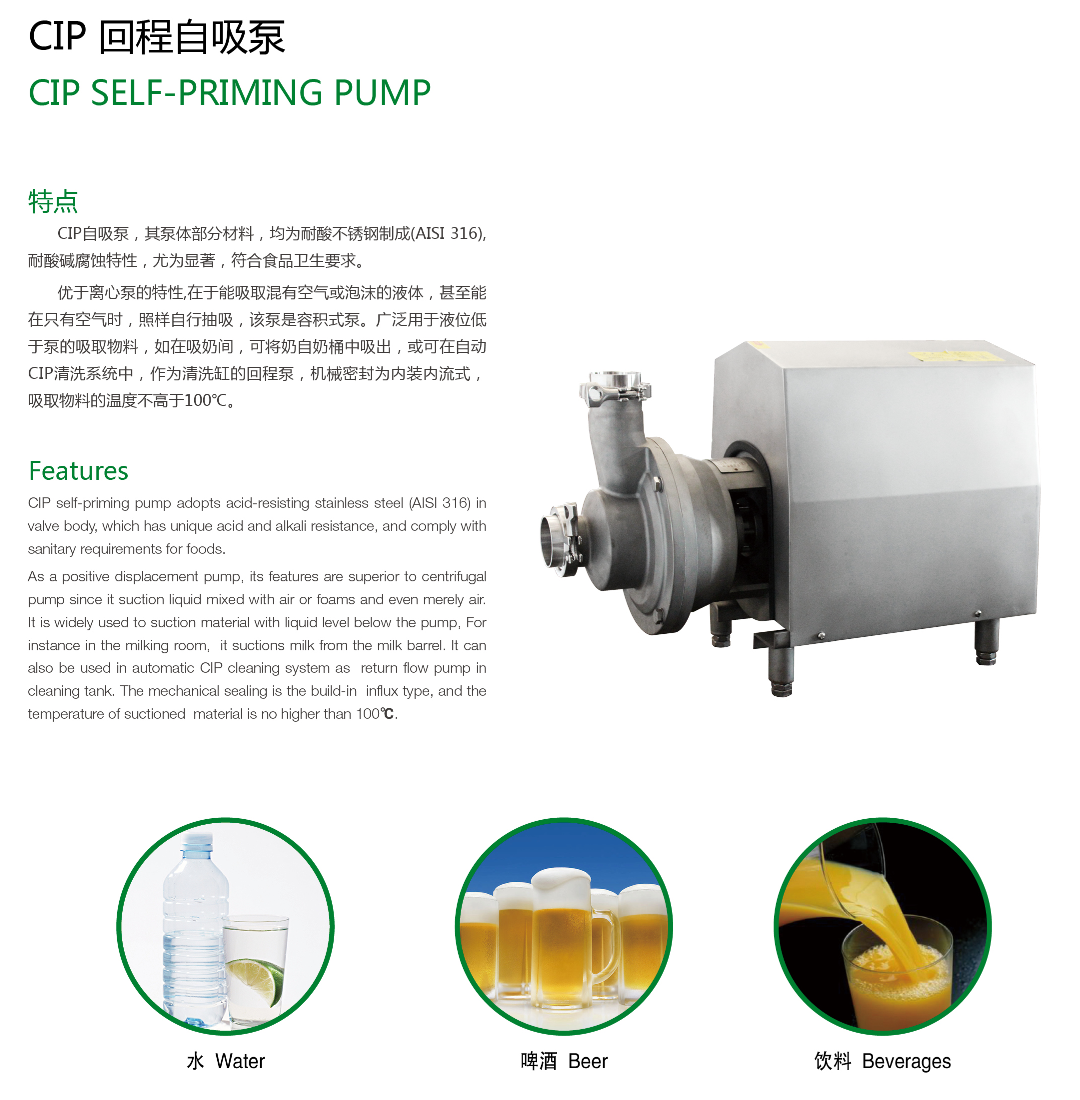

The pump is a liquid-ring pump which is specially designed for pumping liquids containing air or gas.The pump is used in food,chemical,pharmaceutical and similar industries.The pump can be used for CIP-return.Mechanical single seal with stationary seal ring of acid-resistant steel AlS1316L with sealing surface in carbon and rotating seal rings of siliconcarbide.The pump has a stainless steel shroud for protection of the motor,and the complete unit is supported on four adjustable stainless steel legs.
All product wetted parts,pump casing,casing cover and impeller are made of acid-resistant steel AIS1316L.Motor
shroud is made of stainless steel AlS1304.Seals are made of EPDM rubber.
Product wetted steel parts:Acid-resistant steel AlSI 316L.
Parts:Stainless steel AlS1304
Outside Surface:Semi bright
Inside Surface:Bright
Product wetted seals:EPDM rubber
Standard Design
Standards:DIN,SMS,ISO/IDF,BS/RJT,ASME/BPE
End Connections:Clamp,Union,Butt-weld,or others upon request

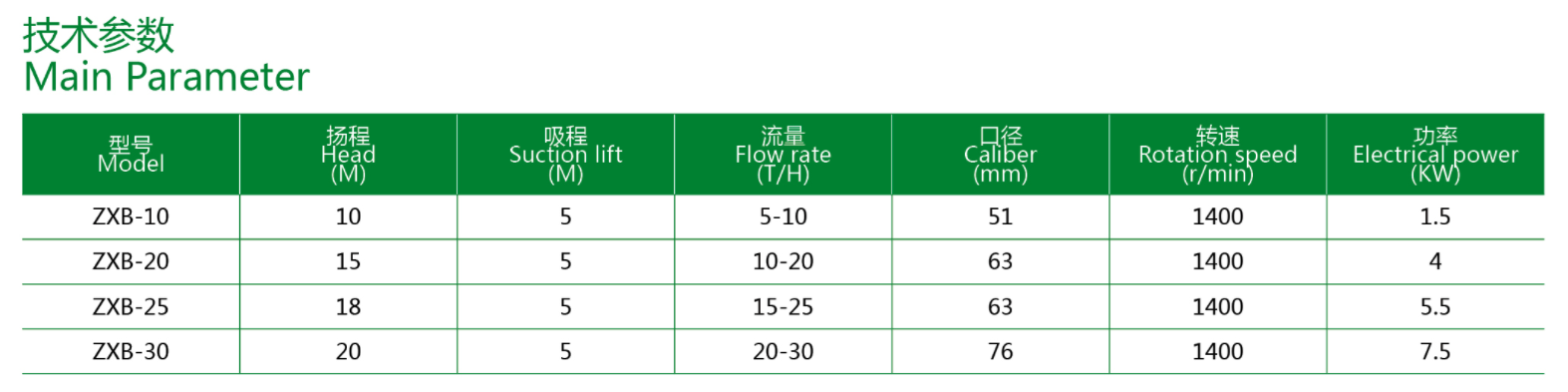

Specification
| Item | Sanitary Stainless Steel Self-priming Pump |
| Product name | Sanitary Stainless Steel Self-priming Pump |
| Material | SS304, SS316L |
| Size | 0.55-2.2kw |
| End Connection | Weld |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
About Delivery
About Application
Operating Principles
Pump applies modern new technology and new concept to continuously renovate production technology of
centrifugal pump.The new generation sanitary WCP model centrifugal pump is the pride of &0 Pump.It conforms to GMP requirements with good quality.In addition,the pump performance is better,the efficiency is higher,the service life is longe so that users get more benefits.
The research,development,design and application engineer of &0 Pump have rich technological backgrounds in their espective fields.You can use their experience to solve various pump delivering problems or consult us for technological system design.With their rich knowledge and imagination,our engineers help customers enhance productivity and increase their profits.
Medicine:Transfusion,distilled water,high purity water,traditional Chinese medicine liquid containing granules(3-
6mm),leaching solution
Cosmetics:Dye,alcohol,essential oil
Dairy:Whey,cream,milk,sugar
Beverage:Alcohol,beer,wort,fermentation solution,fruit juice beverage,beverage containing granules
Sanitary Stainless Steel Self-priming Pump
The pump is a liquid-ring pump which is specially designed for pumping liquids containing air or gas.The pump is used in food,chemical,pharmaceutical and similar industries.The pump can be used for CIP-return.Mechanical single seal with stationary seal ring of acid-resistant steel AlS1316L with sealing surface in carbon and rotating seal rings of siliconcarbide.The pump has a stainless steel shroud for protection of the motor,and the complete unit is supported on four adjustable stainless steel legs.
All product wetted parts,pump casing,casing cover and impeller are made of acid-resistant steel AIS1316L.Motor
shroud is made of stainless steel AlS1304.Seals are made of EPDM rubber.
Product wetted steel parts:Acid-resistant steel AlSI 316L.
Parts:Stainless steel AlS1304
Outside Surface:Semi bright
Inside Surface:Bright
Product wetted seals:EPDM rubber
Standard Design
Standards:DIN,SMS,ISO/IDF,BS/RJT,ASME/BPE
End Connections:Clamp,Union,Butt-weld,or others upon request
Specification
| Item | Sanitary Stainless Steel Self-priming Pump |
| Product name | Sanitary Stainless Steel Self-priming Pump |
| Material | SS304, SS316L |
| Size | 0.55-2.2kw |
| End Connection | Weld |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
