FOGO

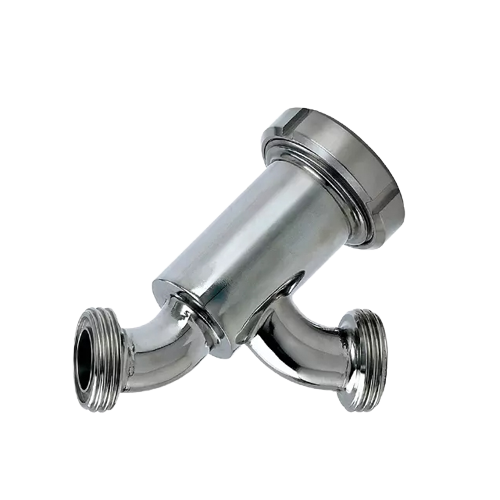

Sanitary Stainless Steel Threaded Y-Type Filter
Threaded
ss304, ss316L
1 year
Operating Principles
When with larger solid particles or impurity of media through the filter,these larger solid particles and impurities will be filtered and stay in certain specification filter inside,thus preventing the solid particles and impurities into subsequent pipes,filtered medium criterion by export outflow,achieve the requirement

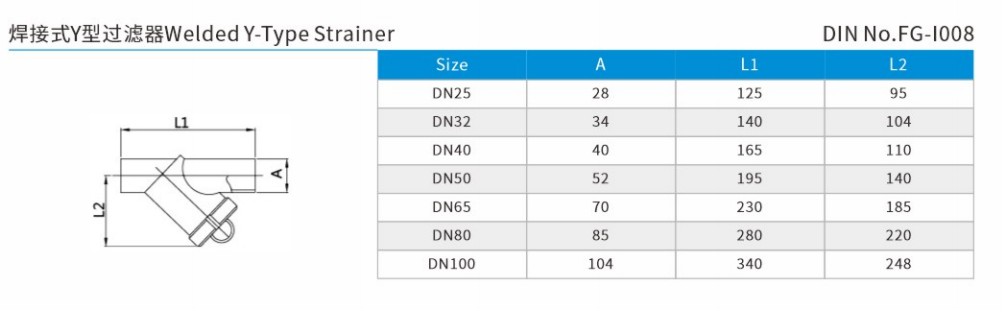

Sanitary Stainless Steel Welded Y Type Filter
Our Sanitary Stainless Steel Strainer including Sanitary Straight Strainer,Sanitary Y type Filter,Hygienic Welding Filter,Sanitary Tri Clover Strainer,Sanitary Thread Male Filter.
Filters are widely usde in the auxiliary service for food processing,cosmetic,chenicals and paharmacy industries. Due to its hygienic design,it is maunly used to filter the particulates that destroy pumps and some other equipments.
The filter consists of inlet and outlet housing,inner screen mesh to filter the particlates and impurities which can't pass the mesh.
Technical Data:
As per specification Lubrication by the cleaner itself.
Working pressure:0-10bar
MAX.working temperature: -20~+135°C
Seal: EPDM (with standard) or NBR (optional)
Inject cleaning radius:MAX.effective radius 2M

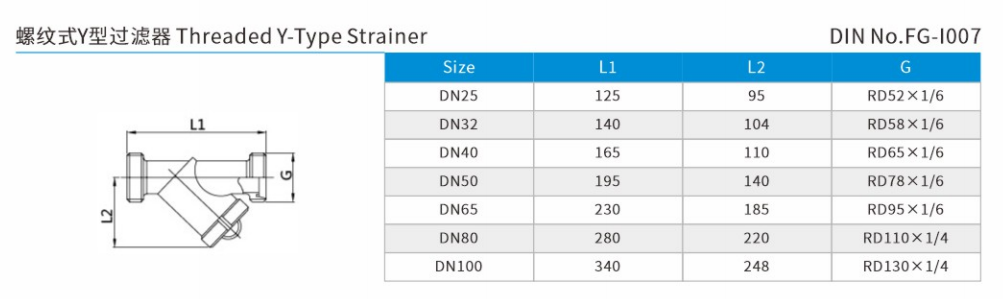

Specification
| Item | Sanitary Stainless Steel Threaded Y-Type Filter |
| Product name | Sanitary Stainless Steel Threaded Y-Type Filter |
| Material | SS304, SS316L |
| Size | 1-4",DN25-DN100 |
| End Connection | Weld, Clamp, Thread, Bolt |
| Techinics | Forged |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Filters | Metal Mesh, Perforated Plate And Wedge Wire |
| Customized support | OEM |
| Mesh | 30-165 |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
