| Quantity: | |
|---|---|
FOGO
Sanitary Cleaning Ball
Female Thread
ss304, ss316L
1 year
Operating Principles
Rotary cleaning ball:The cleaning solution make the sprayer rotary by it's motive power,then the fun jet created the whole tank and reactor with vortex. In that way,clean the remains of vessel surface effectively,reach the function of cleaning.
Fixed cleaning ball:The cleaning ball is through the sprayer small hole,create the injection all around.In that way,clean the remains of vessel surface effectively,reach the function of cleaning.

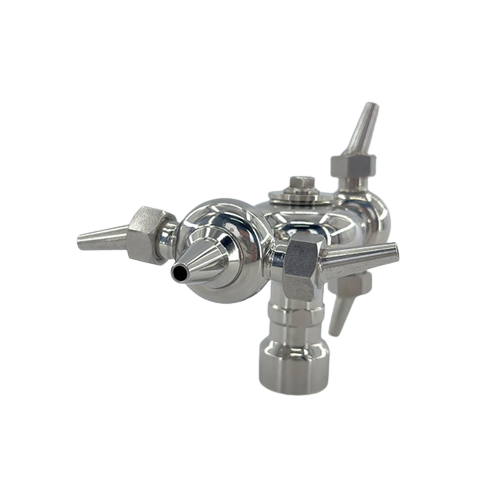

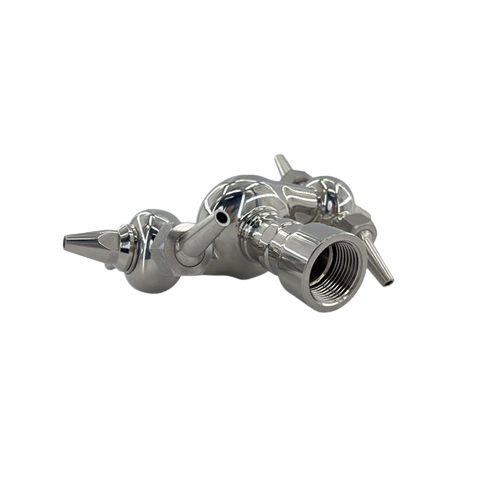

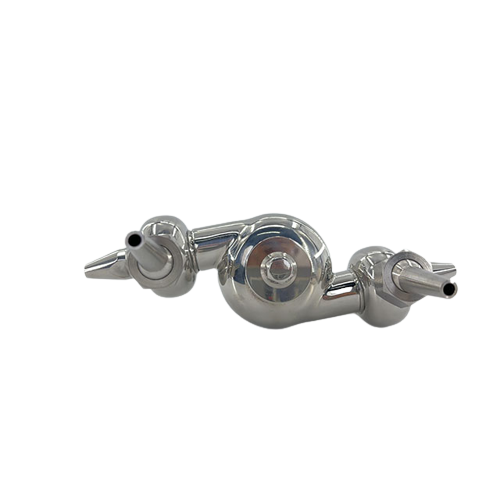

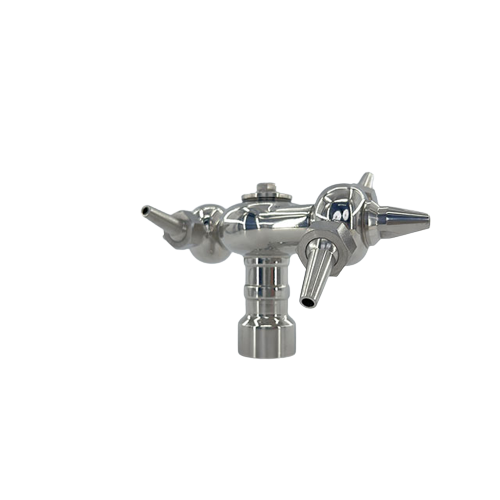

Sanitary Stainless Steel Female Thread Rotary Spray Cleaning Ball

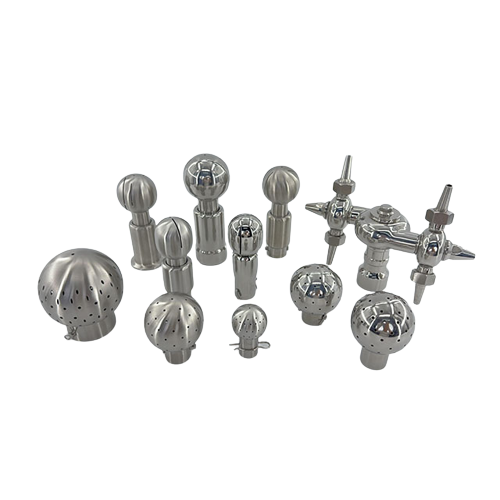

Our Hygienic Stainless Steel Cleaning Ball including Sanitary Spray Ball,Sanitary Fixed Spray Cleaning Ball, Sanitary Rotary Cleaning Ball,Stainless Steel Bolt Cleaning Ball.
Cleaner series products are mainly used to spray strongly and clean inside of tank,generally,in field of food-
processing,beverage,beer,pharmaceutical industries.
Fixed cleaning Spray hole:360 degree spray completely,180 degree spray,aperture of spray is 2.5mm.
Rotary cleaning ball:ball is elliptical and spherical.Jet orifice is flat slot shape.
Technical Data:
As per specification lubrication by the cleaner itself.
Working pressure:1-3Bar
Max.Working temperature:95degee
Max.Ambient temperature:140degree
Moist radius:Max.3M
Inject cleaning radius:Max.Effective radius 2M

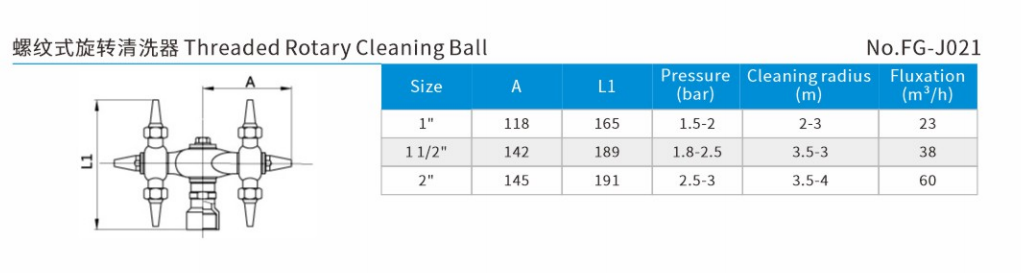

Specification
| Item | Sanitary Stainless Steel Threaded Rotary Cleaning Ball |
| Product name | Sanitary Stainless Steel Threaded Rotary Cleaning Ball |
| Material | SS304, SS316L |
| Size | 0.5"-2.5" or DN15-DN65 |
| End Connection | Weld, Clamp, Thread, Bolt |
| Surface Finishing | Mirror finish |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Cleaning Radius | 1.0-3.5m |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air, Liquid, Petroleum |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
