FOGO

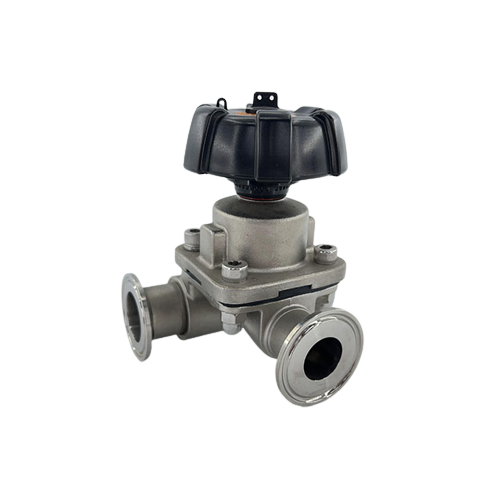

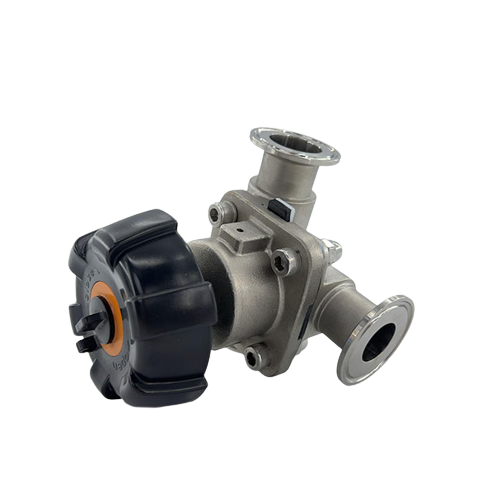

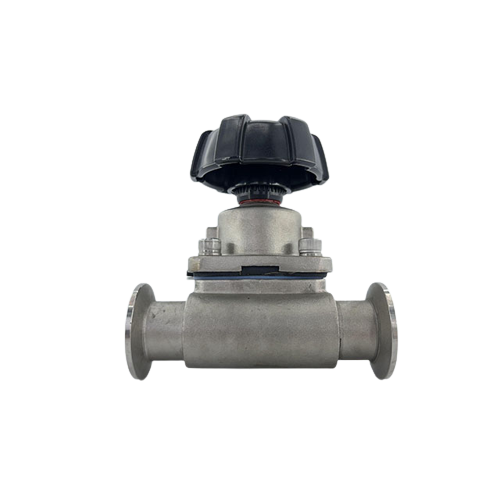

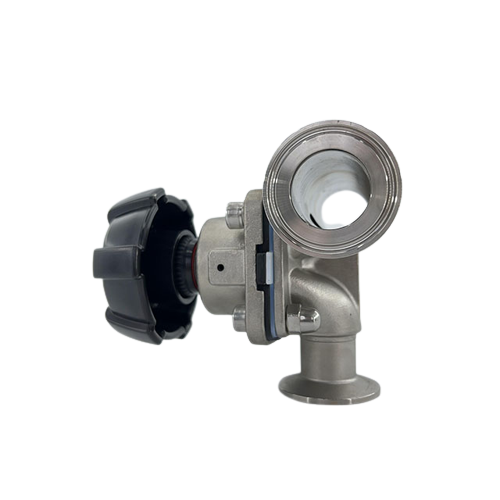

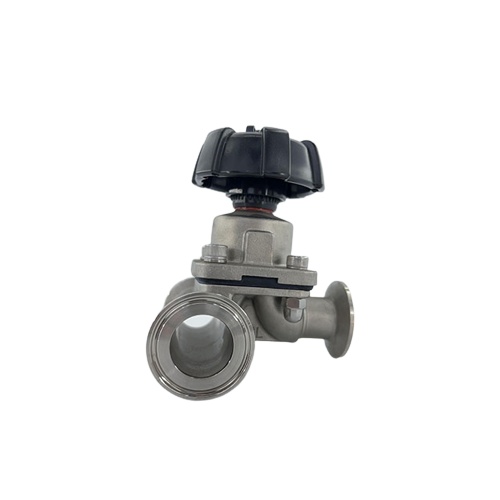

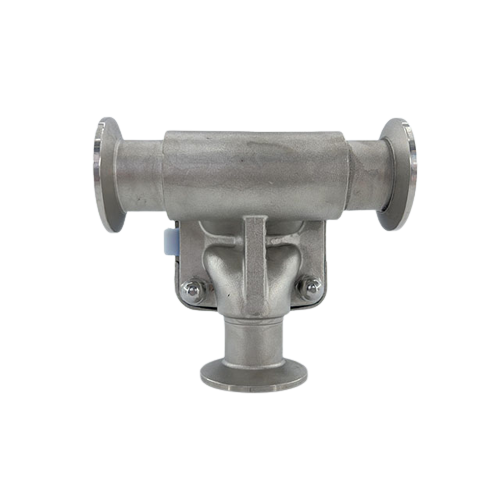

Stainless Steel Tri Clamp Manual 3 Way T Type Diaphragm Valve
Clamped
ss304, ss316
1 year
Operating Principles
The diaphragm valves can be operated automatically through actuator or manually with the handwheel.
The handwheel blocks the valve in the "open"or "closed"position,certainly there are the other position available.
The closing and opening of the actuator is realized by the pressure from the pipeline acting on the reinforced rubber diaphragm.
The diaphragm valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields.
Tri Clamp Manual 3 Way T Type Diaphragm Valve
Sanitary hygienic three way manual diaphragm valves,has three way flow channels with T shape or U shape. Flow structure design is "T"type,and it can be used for both flow division and flow direction change
Standard Design
Available in sizes from DN20 1"to DN100 4"
Standard Avaliable:DIN,SMS,ISO IDF,BS RJT,ASME BPE
Connection:weld,clamp,or others upon request
Body type:T-type tee,U type tee,Mini type,tank bottom type,etc
Specification
| Item | Tri Clamp Manual 3 Way T Type Diaphragm Valve |
| Product name | Tri Clamp Manual 3 Way T Type Diaphragm Valve |
| Material | SS304, SS316L |
| Size | DN20 1"to DN100 4" |
| End Connection | Weld, clamp |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Max pressure | 10 Bar |
| Working temperature | ASSEMBLING Diaphragm:EPDM(-40°C-150°C)PTFE/EPDM(-10°C-150C) |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
Exploded View of Hygienic U Type Three Way Diaphrgam Valve
About Delivery
About Application
