FOGO
Sanitary Sight Glass
Union Type
ss304, ss316L
1 year
Operating Principles
Sanitary sight glass made of standard stainless steel 304.316L material.The whole is mirror polish.No dead ends. Easy to clean and hygienic.It is suitable for clean pipelines in places with strict requirements for food,industry,beer and beverage,and biopharmaceutical engineering.There can be no residual breeding bacteria during use.The working principle is the same as that of ordinary sight glasses.and it can be used in chemical towers with high temperature, strong corrosion,easy poisoning,greater danger,and easy crystallization to ensure its safe production. The structure is roughly divided into three parts,mainly composed of sight glass bottom plate,sight glass,valve components and so on.

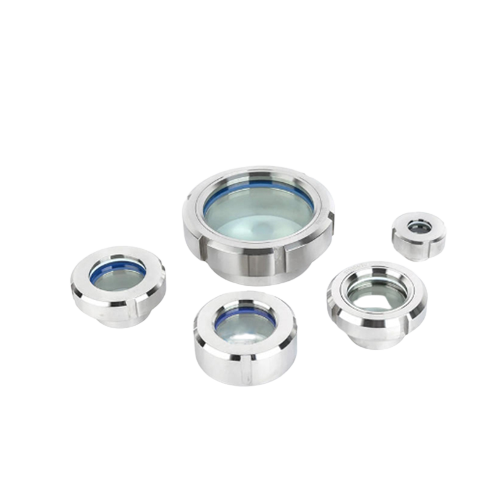

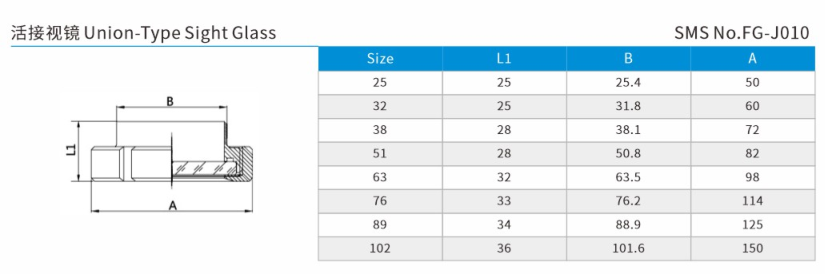

Union Type Welding Sight Glass
The sight glass is used to install the top of tank,it can observe the flow and reaction of liquid,gas and steam in the tank at any time,so as to monitor production and avoid accidents during production.
Technical Data:
As per specification Lubrication by the cleaner itself.
Working pressure:0-10bar
MAX.working temperature: -20~+135°C
Seal: EPDM (with standard) or NBR (optional)
Inject cleaning radius:MAX.effective radius 2M
Specification
| Item | Sanitary Stainless Steel Clamp Type Straight Sight Glass |
| Product name | Sanitary Stainless Steel Clamp Type Straight Sight Glass |
| Material | SS304, SS316L |
| Size | 1-4",DN25-DN100 |
| End Connection | Weld, Clamp, Thread, Bolt |
| Techinics | Forged |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Filters | Metal Mesh, Perforated Plate And Wedge Wire |
| Customized support | OEM |
| Mesh | 30-165 |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
