FOGO
Double Pin Clamp
tri-clamped
ss304, ss316L
1 year
Operating Principles

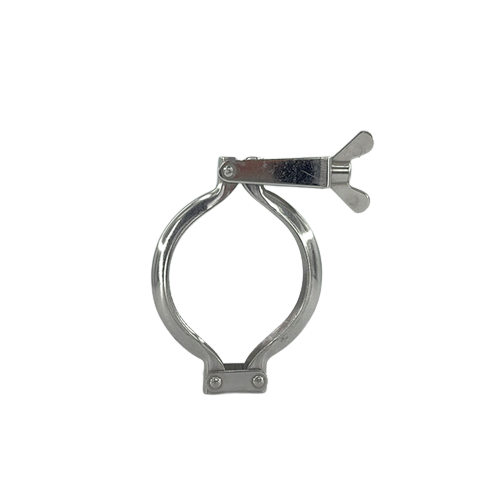

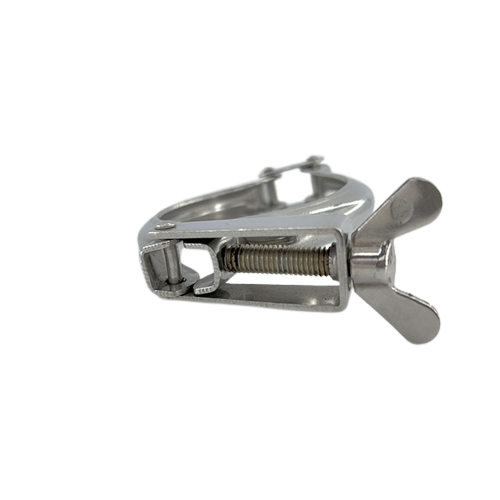

The double pin clamp with a wingnut is made from 304 stainless steel alloy (Also available in 316)
It is used to join two separate tri-clamp ends to one another.
A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection.
Do not over tighten wing-nut as this may damage the product.
The recommended amount of tension is to tighten the wing-nut until it becomes snug, then perform one more half twist for the proper amount

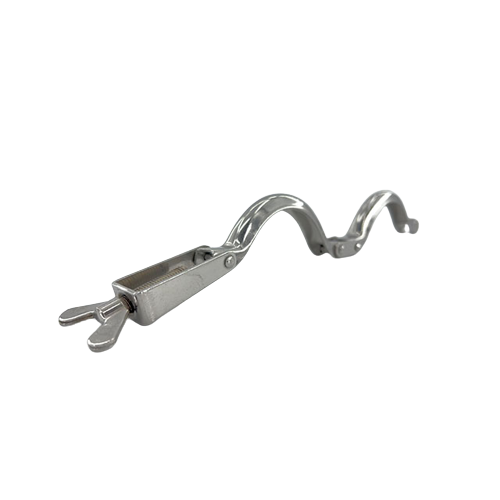

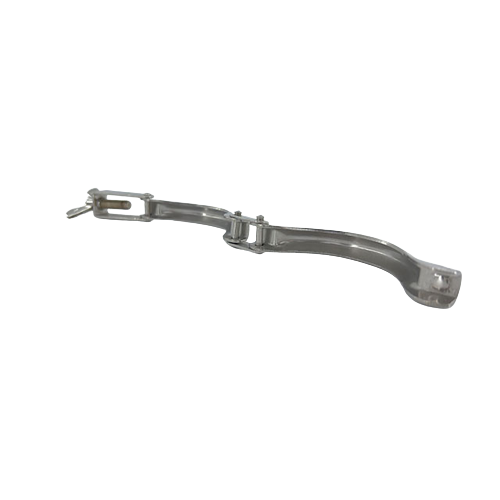

Hygienic Stainless Steel 13EU Double Pin Clamp
Sanitary tri clamp is an essential part of tri clamp fitting.Size from 1/2"to 12",All our sanitary fittings ferrule is produced
oy CNC lathe machine,having the high purity surface and meet the requirement of food,Beverage,Dairy,pharmacy etc industries.sanitary fittings ferrule standard length is 12.7mm or 21.5mm.
Standard Design
Available sizes:1/2-12"
Standards:DIN11850/DIN11852,SMS,ISO IDF.BS /AS,ASME BPE
End connections:Weld or Tri-clamp
Specification
| Item | Hygienic Stainless Steel 13EU Double Pin Clamp |
| Product name | Hygienic Stainless Steel 13EU Double Pin Clamp |
| Material | SS304, SS316L |
| Size | 1/2"to 12" |
| End Connection | Tri-clamp |
| Surface treatment | Ras0.8 |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Gasket | Food Grade Silicone,Viton,PTFE |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
About Delivery
About Application
