FOGO
Sanitary MHH Heavy Clamp
tri-clamped
ss304, ss316L
1 year
Operating Principles

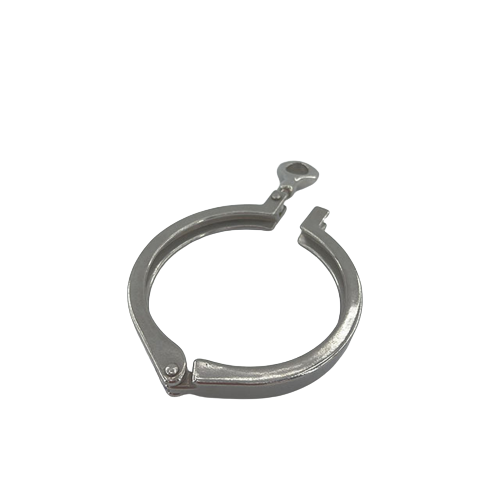

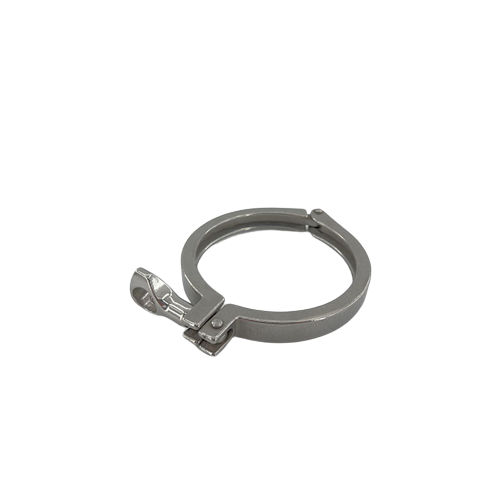

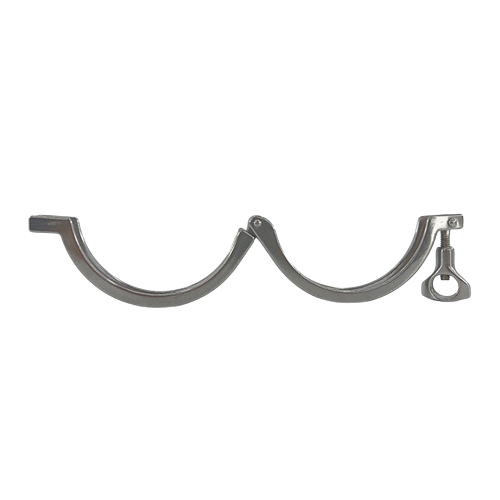

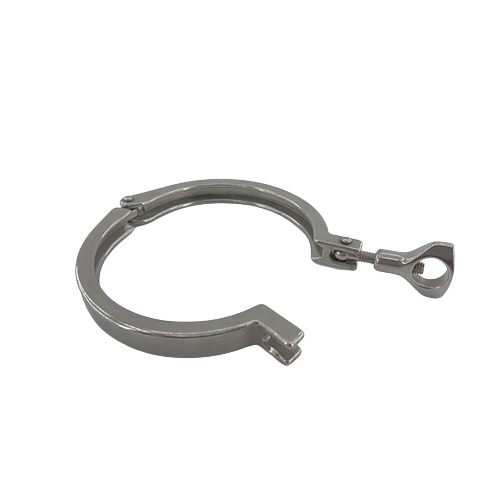

The single-pin clamp with a wingnut is made from 304 stainless steel alloy (Also available in 316).
It is used to join two separate tri-clamp ends to one another.
Sizes on this product range from 1/2 inch all the way up to 12 inches in diameter.
A tri-clamp rubber gasket should be placed between the two flange ends to ensure proper fit and secure connection.
Do not over tighten wing-nut as this may damage the product.
The recommended amount of tension is to tighten the wing-nut until it becomes snug,then perform one more half twist for the proper amount.
Sanitary MHH Heavy Clamp
Sanitary tri clamp is an essential part of tri clamp fitting.Size from 1/2"to 12".All our sanitary fittings ferrule is produced by CNC lathe machine,having the high purity surface and meet the requirement of food,Beverage,Dairy. pharmacy etc industries.sanitary fittings ferrule standard length is 12.7mm or 21.5mm.
Standard Design
Available sizes:1/2-12"
Standards:DIN11850/DIN11852,SMS,ISO IDF.BS /AS,ASME BPE
End connections:Weld or Tri-clamp
Specification
| Item | Sanitary MHH Heavy Clamp |
| Product name | Sanitary MHH Heavy Clamp |
| Material | SS304, SS316L |
| Size | 1/2"to 12" |
| End Connection | Weld or Tri-clamp |
| Pressure range | 0~10Bar |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
