Sanitary Mix-proof Mixproof Valve with Intelligent Pneumatic Outside Cleaning Manufacturer

Operating Principles

• This valve is used to proof the mix of different material in the pipeline cross. While the valve is close, the two pipe are double sealed, the liquid leaking from one pipe to the another can be eliminated. While the seal is damaged, the leakages will be drained by the draining chamber. The supplier of lotion of the isolation chamber is connected by a unique CIP and also the isolation chamber cleaning is indifferent to the valve position.

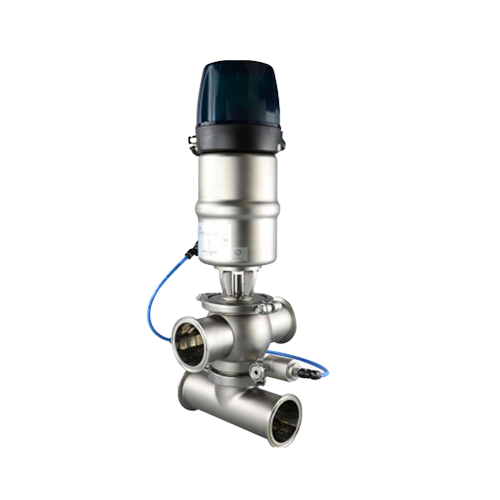

Sanitary Mix-proof Mixproof Valve with Intelligent Pneumatic Outside Cleaning

• This valve is normally in a normally closed (NC) state and is equipped with two small pneumatic valves. Normally, it is in a normally open (NO) state and only needs to supply compressed air to the pneumatic head to synchronously close the two small valves. The main valve core is equipped with two independent seals, forming a leak detection and cleaning chamber between the two seals. Leaking products can flow out from the small valve outlets on both sides and the seals can be replaced in a timely manner. When performing CIP cleaning, the fluid flow direction is facing the square core of the valve core, which can comprehensively clean the main valve core (with a taper on the main valve core) and make the external CIP valve insensitive to water hammer effect. It can replace the double seat anti mixing valve as a valve array.




Standard Design

• Available in sizes from DN15   1/2" to 4"

• Standard Avaliable:DIN,SMS,ISO,IDF.RJT,IDF,3A

• Connection:weld,clamp,thread,single weld single thread,flange

• Actuator:pneumatic stainless steel actuator,pneumatic aluminum actuator,electric actuator

• Control:position sensor,C-TOP controller,C-TOP controller(AS-1)

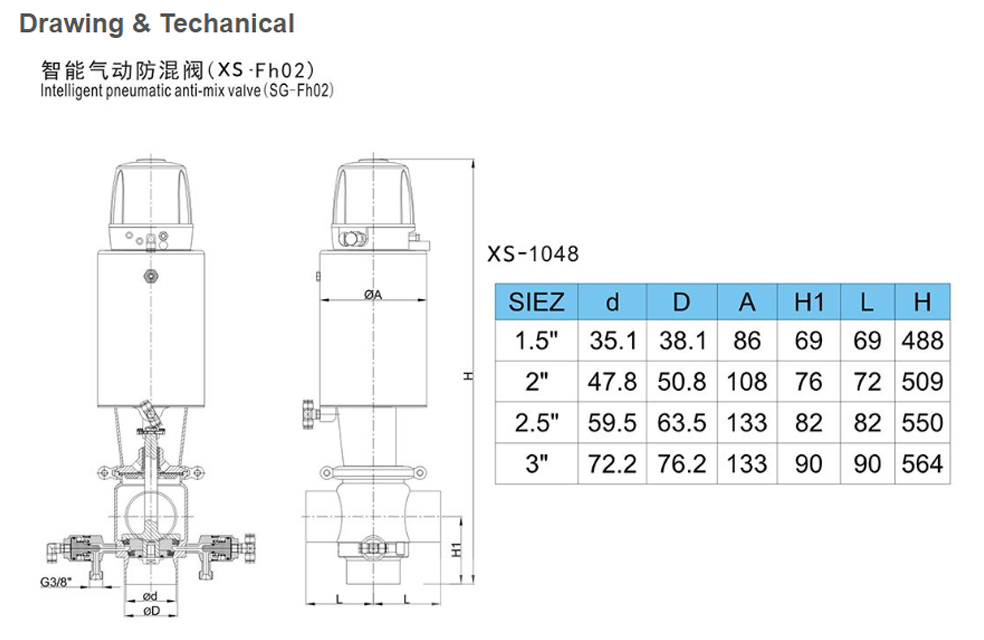

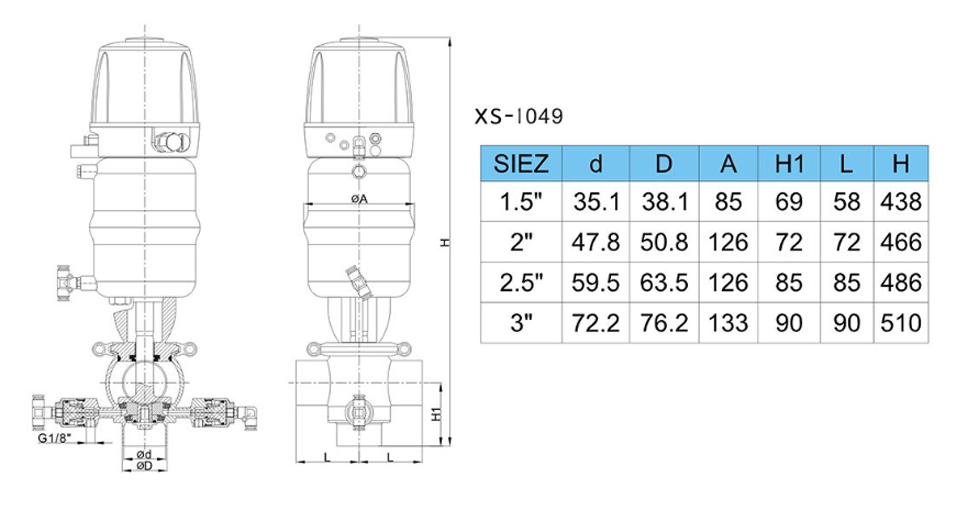

Specification

About Delivery

About Application
