FOGO

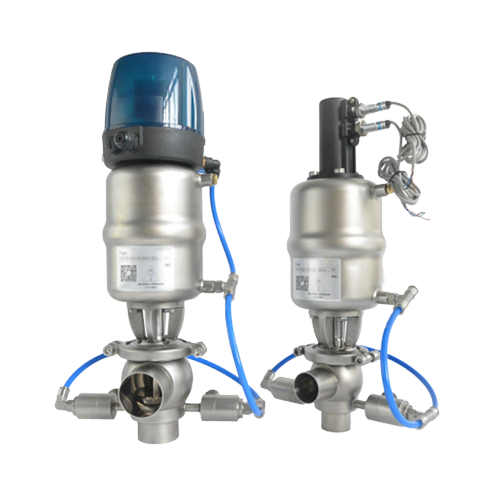

Single Seat Double Seal Two Ways Outside Cleaning Saniatry Mix-proof Mixproof Valve
Welding
ss304, ss316L
1 year
Operating Principles
This valve is used to proof the mix of different material in the pipeline cross. While the valve is close, the two pipe are double sealed, the liquid leaking from one pipe to the another can be eliminated. While the seal is damaged, the leakages will be drained by the draining chamber. The supplier of lotion of the isolation chamber is connected by a unique CIP and also the isolation chamber cleaning is indifferent to the valve position.
Single Seat Double Seal Two Ways Outside Cleaning Saniatry Mix-proof Mixproof Valve
Sanitary Mixproof valves are major let the medium reach the purpose of reversing or end stop, because the good sealability and cleanability, they are extensively use to are widely used in food, pharmaceutical, cosmetics, clean steam, alcohol, beverage, biochemical industrial process control occasions.
The series of valve have two types valve, that is the FH01 series Mix-oroof valve characteristics and FH02 Series double seals Mix-proof valve characteristics, the FH01 use to proof th mix of different material in the pipeline cross. While the valve is close, the two pipe are double sealed, the liquid leaking from one pipe to the another can be eliminated, While the seal is damaged, the leakages will be drained by the draining chamber. The supplier of lotion if the isolation chamber is connected by a unique CIP and also the isolation chamber cleaning is indifferent to the valve position. FH02 use as the mix-proof separation in the pipe systerm by adoption one valve disc with two seals tech. This valve is the economic choic among the duoble seat valve. The chamber between the valve disc seals is connected with two drain valve, by which we can detect the seal leakage and clean he chamber.
Standard Design
Available in sizes from DN15 1/2" to 4"
Standard Avaliable:DIN,SMS,ISO,IDF.RJT,IDF,3A
Connection:weld,clamp,thread,single weld single thread,flange
Actuator:pneumatic stainless steel actuator,pneumatic aluminum actuator,electric actuator
Control:position sensor,C-TOP controller,C-TOP controller(AS-1)
Specification
| Item | Single Seat Double Seal Two Ways Outside Cleaning Saniatry Mix-proof Mixproof Valve |
| Product name | Single Seat Double Seal Two Ways Outside Cleaning Saniatry Mix-proof Mixproof Valve |
| Material | SS304, SS316L |
| Size | 1/2" to 4" |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Surface | Inner Ra.0.8um or specified |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
About Delivery
About Application
Operating Principles
This valve is used to proof the mix of different material in the pipeline cross. While the valve is close, the two pipe are double sealed, the liquid leaking from one pipe to the another can be eliminated. While the seal is damaged, the leakages will be drained by the draining chamber. The supplier of lotion of the isolation chamber is connected by a unique CIP and also the isolation chamber cleaning is indifferent to the valve position.
Single Seat Double Seal Two Ways Outside Cleaning Saniatry Mix-proof Mixproof Valve
Sanitary Mixproof valves are major let the medium reach the purpose of reversing or end stop, because the good sealability and cleanability, they are extensively use to are widely used in food, pharmaceutical, cosmetics, clean steam, alcohol, beverage, biochemical industrial process control occasions.
The series of valve have two types valve, that is the FH01 series Mix-oroof valve characteristics and FH02 Series double seals Mix-proof valve characteristics, the FH01 use to proof th mix of different material in the pipeline cross. While the valve is close, the two pipe are double sealed, the liquid leaking from one pipe to the another can be eliminated, While the seal is damaged, the leakages will be drained by the draining chamber. The supplier of lotion if the isolation chamber is connected by a unique CIP and also the isolation chamber cleaning is indifferent to the valve position. FH02 use as the mix-proof separation in the pipe systerm by adoption one valve disc with two seals tech. This valve is the economic choic among the duoble seat valve. The chamber between the valve disc seals is connected with two drain valve, by which we can detect the seal leakage and clean he chamber.
Standard Design
Available in sizes from DN15 1/2" to 4"
Standard Avaliable:DIN,SMS,ISO,IDF.RJT,IDF,3A
Connection:weld,clamp,thread,single weld single thread,flange
Actuator:pneumatic stainless steel actuator,pneumatic aluminum actuator,electric actuator
Control:position sensor,C-TOP controller,C-TOP controller(AS-1)
Specification
| Item | Single Seat Double Seal Two Ways Outside Cleaning Saniatry Mix-proof Mixproof Valve |
| Product name | Single Seat Double Seal Two Ways Outside Cleaning Saniatry Mix-proof Mixproof Valve |
| Material | SS304, SS316L |
| Size | 1/2" to 4" |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Surface | Inner Ra.0.8um or specified |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
