FOGO

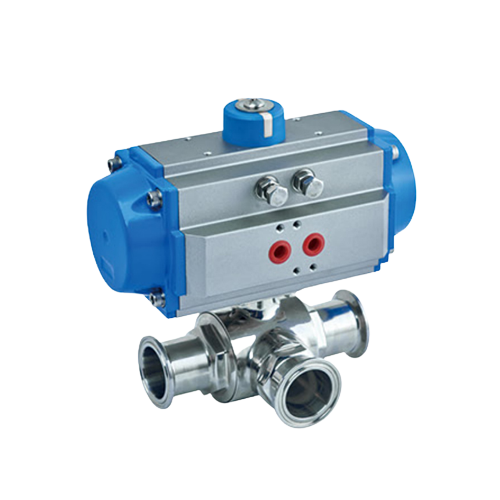

Sanitary Pneumatic Three-way Ball Valve
tri-clamped
ss304, ss316L
1 year
Operating Principles
The ball valves can be operated automatically through actuator or manually with the handle.
The handle blocks the valve in the "open"or "closed"position,certainly there are the other position available.
The actuator push piston of axial movement into 90 degree so that it controls ball valve.
The ball valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields.
Sanitary Pneumatic Three-way Ball Valve
We manufacture Pneumatic Sanitary T Port Ball Valve,Hygienic Pneumatic L Port Ball Valve,Pneumatic Sanitary
Encapsulated Three Ways Ball Valve,Sanitary Butt-weld 3 Way Ball Valve,Hygienic Male Thread Three Ways Pneumatic Bal Valve,Hygienic Tri-Clamp 3 Ways Ball Valve.
Standard Design
Free of maintenances
Compact and portable
Small operating torque
Available in sizes from DN10 1/2"to DN100/4"
Standard Avaliable:DIN,SMS,RJT,3A.FIL
Connection:weld,clamp,thread,flange
Type of valves:One way ball valve,three-piece ball valve,Three-way ball valve
Type of cores:T type,L type,direct type
Actuator:pneumatic stainless steel actuator,electric actuator
Specification
| Item | Sanitary Pneumatic Three-way Ball Valve |
| Product name | Sanitary Pneumatic Three-way Ball Valve |
| Material | SS304, SS316L |
| Size | 1"-4",DN25-DN100 |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Gaskets | PTFE FDA 177.1550 Whatever The Connection,It Does Not Change The Total Length Of The Valve |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
About Delivery
About Application
