FOGO
Sanitary Stainless Steel Clamped Three Pieces Tank Bottom Ball Valve
tri-clamped
ss304, ss316
1 year
Operating Principles
Sanitary stainless steel Tri-clamp Straight Ball Valve
The ball valves can be operated automatically through actuator or manually with the handle.
The handle blocks the valve in the "open"or "closed"position,certainly there are the other position available.
The actuator push piston of axial movement into 90 degree so that it controls ball valve.
The ball valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields.

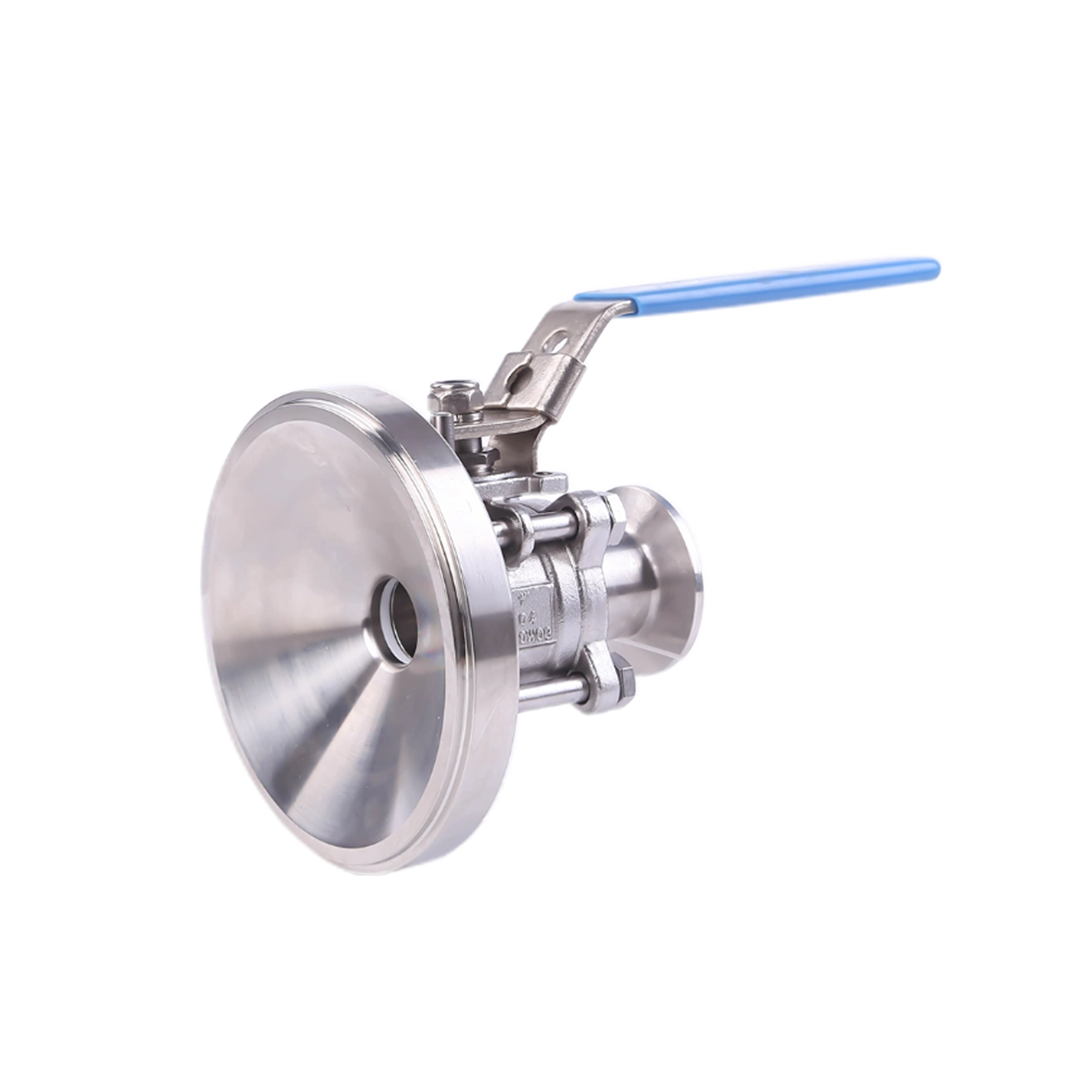

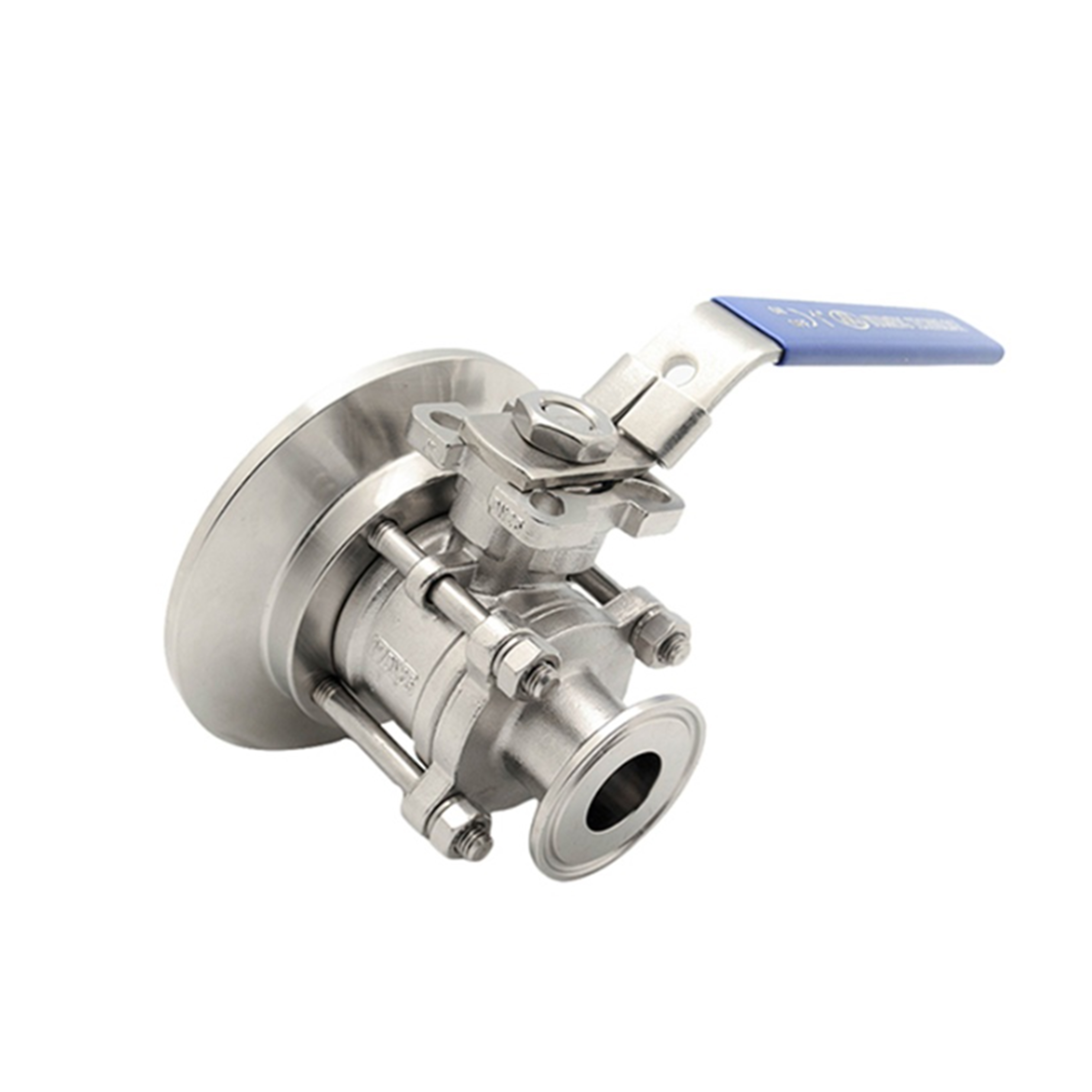

Sanitary Stainless Steel Clamped Three Pieces Tank Bottom Ball Valve
Three pieces tank bottom ball valve with a special tank bottom flange connection,be welded on the tank botom.The design of contour and sadius have effective gravity discharge function.Also smooth taper hole and the sphere closest to the bottom,which prevents the medium from staying at the entrance of the valve,making sure to drain smoothly.
The three pieces tank bottom ball valve is very suitable for application in high clean technology system,such as biological pharmacy,food and beverage,dairy products,chemical and other fields.
Small fluid resistance,resistance equal to the same length section of pipe
Simple structure,small volume,light weight
Easy to operate,open and close rapidly,from fully open to fully closed only 90 degree rotation,convenient remote control.
Easy maintenance,simple structure,convenient to disassembly and replace the seal.
The tank bottom ball valve is sealed with PTFE,at fully open or fully closed sphere and the sealing surface of the valve seat are isolated with the medium.When medium trasiting,these will not cause erosion of the sealing surface.
Standard Design
Free of maintenances
Compact and portable
Small operating torque
Available in sizes from DN10/1/2 to DN100 /4"
Standard Avaliable:DIN,SMS,RJT,3A,FIL
Connection:weld,clamp,thread,flange
Type of valves:One way ball valve,three-piece ball valve,Three-way ball valve
Type of cores:T type,L type,direct type
Actuator:pneumatic stainless steel actuator,electric actuator

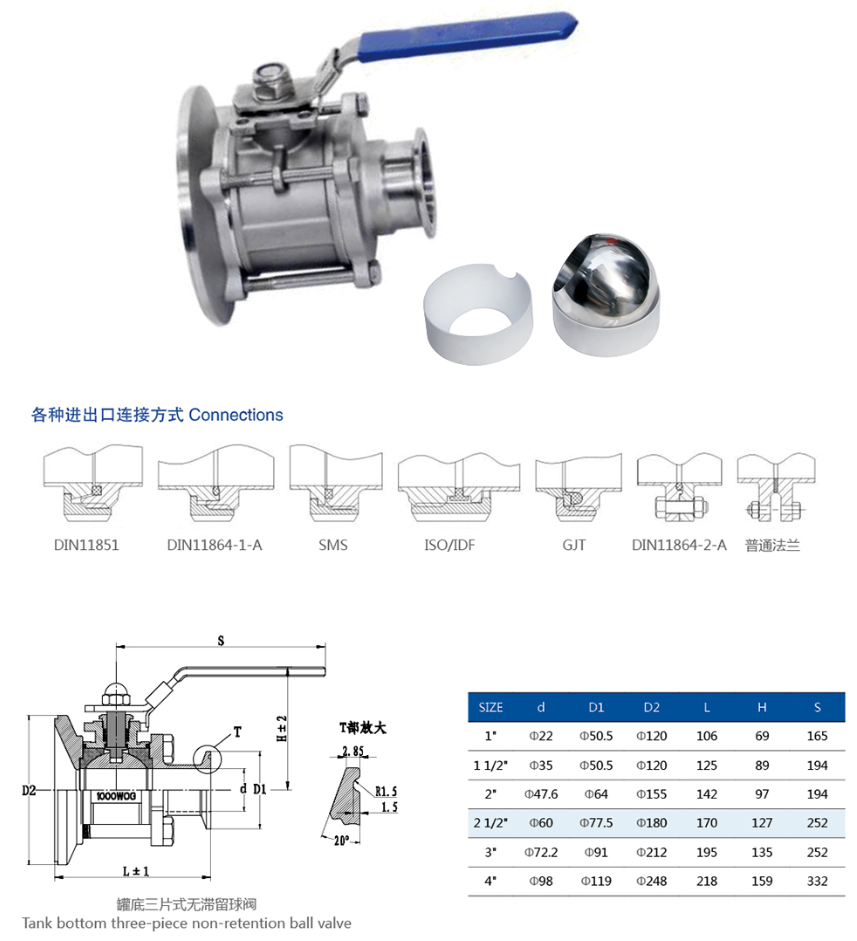

Specification
| Item | Stainless Steel Clamped Three Pieces Tank Bottom Ball Valve |
| Product name | Stainless Steel Clamped Three Pieces Tank Bottom Ball Valve |
| Material | SS304, SS316L |
| Size | 1/2"-4",DN10-DN100 |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Gaskets | PTFE FDA 177.1550 Whatever The Connection,It Does Not Change The Total Length Of The Valve |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
