FOGO

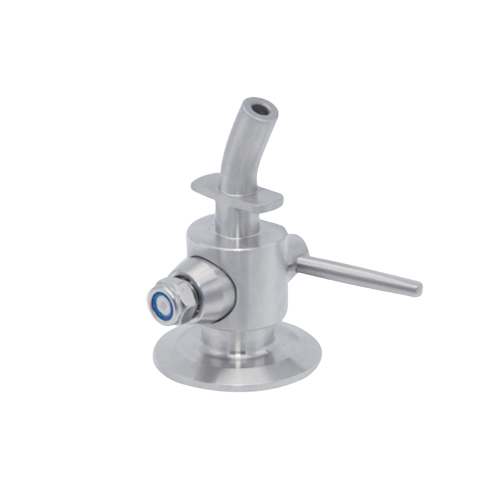

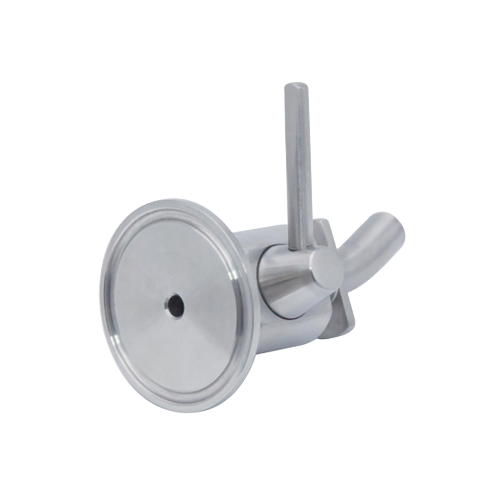

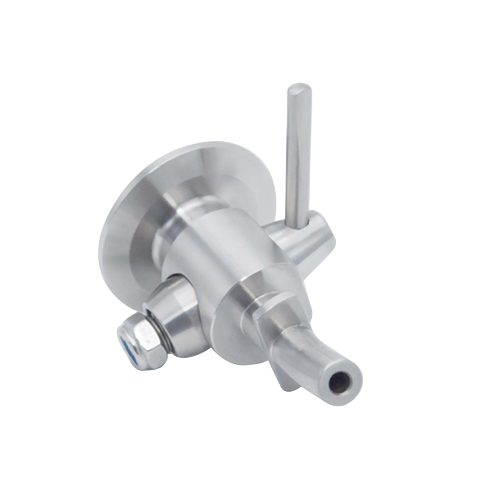

Sanitary Stainless Steel Tri-clamp Perlick Style Sampling Cock Valve
tri-clamped
ss304, ss316
1 year
Operating Principles
It's mainly applied to extract sample from tank or pipeline.it also can be assembled at the bottom of the tank or pipeline to frain away the remains.Perlick style sampling cock valve is worked in beer,beverage and other application.
Sanitary Hygienic Tri-clamp Perlick Style Sampling Cock Valve

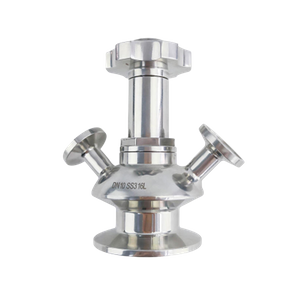

Stainless Steel Aseptic Sterilize Clamped Sampling ValvesWe manufacture Sanitary Tri Clover Aseptic Sample Valve,Hygienic Welded Sampling Valve,Sanitary Pneumatic Aseptic Sampling Valve,Manual Aseptic Sample Valve.
A Sampling Valve is a type of valve used in process industries that allows taking a representative portion of a fluid gases,liquids,fluidized,solids,or slurries to test (e.g.by physical measurements,chemical analysis, microbiological examination),typically for the purposes of identification,quality control,or regulatory assessment.It is a valve used for sampling
The Sampling Valve allows the operator to extract a sample of the product from the production line or reactor and safely store it for transportation to the laboratory where it will be analysed or to the archive room where it can be retrieved for further use.
In chemical plants,a sample can be taken during the process to ensure that the output meets specifications (or that the quality is acceptable),before shipping the chemical good or before accepting the chemical product.
Standard Design
Available in size:BSP or NPT male thread 1/4",3/8",1/2"3/4";clamp diameter 25.4mm or 50.5mm
Standards:DIN,SMS,ISO IDF,BS RJT,ASME BPE.
End connections:thread,clamp,or others upon request
Corresponding size can be provided upon request

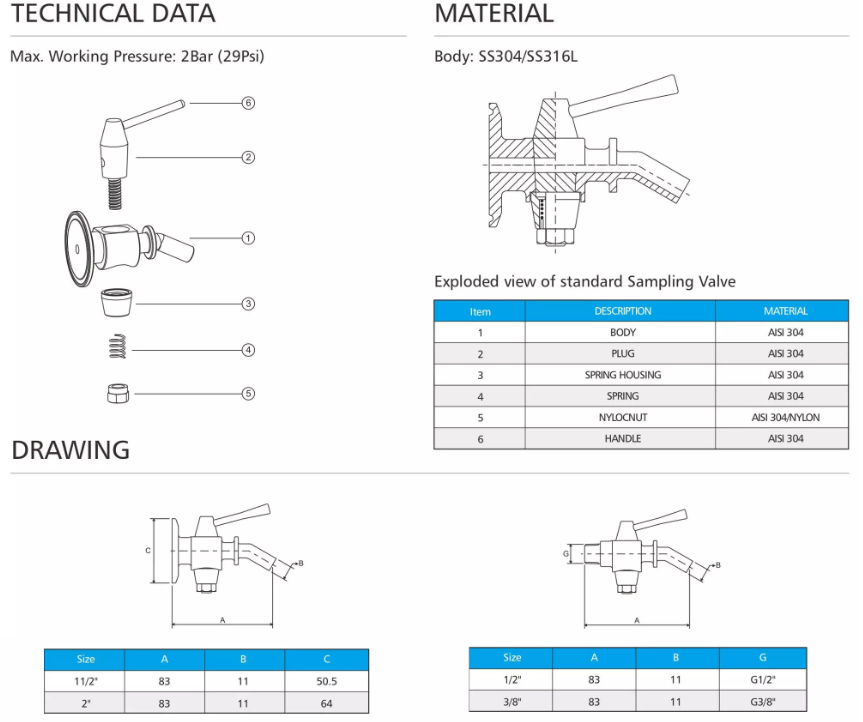

Specification
| Item | Sanitary Hygienic Tri-clamp Perlick Style Sampling Cock Valve |
| Product name | Sanitary Hygienic Tri-clamp Perlick Style Sampling Cock Valve |
| Material | SS304, SS316L |
| Size | 1/4"-1 1/2", |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0.2Mpa |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
About Delivery
About Application
Operating Principles
It's mainly applied to extract sample from tank or pipeline.it also can be assembled at the bottom of the tank or pipeline to frain away the remains.Perlick style sampling cock valve is worked in beer,beverage and other application.
Sanitary Hygienic Tri-clamp Perlick Style Sampling Cock Valve
Stainless Steel Aseptic Sterilize Clamped Sampling ValvesWe manufacture Sanitary Tri Clover Aseptic Sample Valve,Hygienic Welded Sampling Valve,Sanitary Pneumatic Aseptic Sampling Valve,Manual Aseptic Sample Valve.
A Sampling Valve is a type of valve used in process industries that allows taking a representative portion of a fluid gases,liquids,fluidized,solids,or slurries to test (e.g.by physical measurements,chemical analysis, microbiological examination),typically for the purposes of identification,quality control,or regulatory assessment.It is a valve used for sampling
The Sampling Valve allows the operator to extract a sample of the product from the production line or reactor and safely store it for transportation to the laboratory where it will be analysed or to the archive room where it can be retrieved for further use.
In chemical plants,a sample can be taken during the process to ensure that the output meets specifications (or that the quality is acceptable),before shipping the chemical good or before accepting the chemical product.
Standard Design
Available in size:BSP or NPT male thread 1/4",3/8",1/2"3/4";clamp diameter 25.4mm or 50.5mm
Standards:DIN,SMS,ISO IDF,BS RJT,ASME BPE.
End connections:thread,clamp,or others upon request
Corresponding size can be provided upon request
Specification
| Item | Sanitary Hygienic Tri-clamp Perlick Style Sampling Cock Valve |
| Product name | Sanitary Hygienic Tri-clamp Perlick Style Sampling Cock Valve |
| Material | SS304, SS316L |
| Size | 1/4"-1 1/2", |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0.2Mpa |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
