FOGO
Stainless Steel Flange Cover
Welded
ss304, ss316L
1 year
Operating Principles
Plate flanges are most commonly used for joining pipes together, but they can also be used for connecting different parts of a system or even for sealing off sections where necessary.
For example, plate flanges may be used to join two metal pipes together or to connect two sections of pipe with each other. Furthermore, plate flanges can also be used to seal off an area between two pieces of metal that need to remain separate from one another.
Additionally, they can be used to join two plastic pipes together or even two sections of an air conditioning unit or heater.

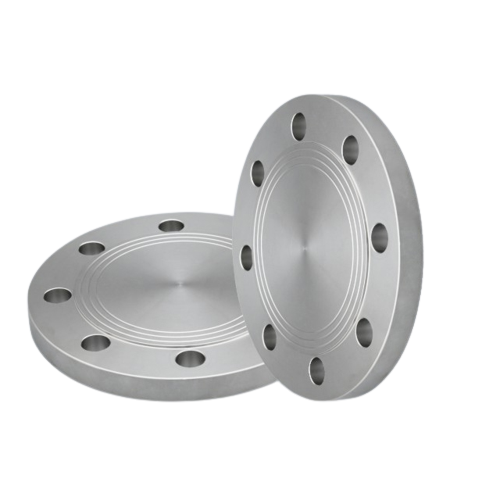

Stainless Steel Flange Cover
It is a flange without a hole in the middle,which is used to seal the pipe plug.

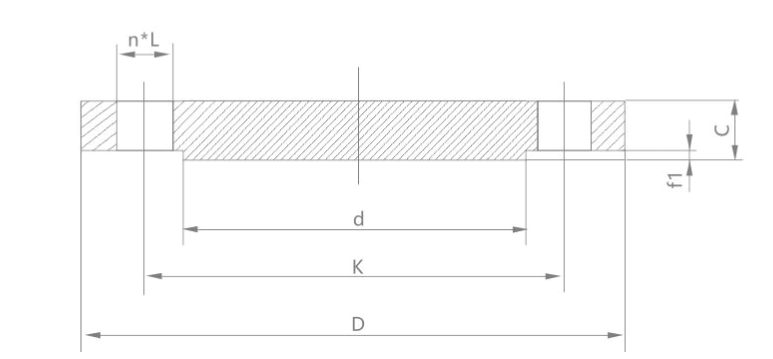

Standard Design
Standard:ANSI B16.5,DlN2573,27,2631,DlN2576,27,2632.
BS4504111RFPN16
Size:DN10-DN800
Pressure:NPO.6-32MP2.150lb-1500lb
Forming Type:Forged.
Specification
| Item | Stainless Steel Flange Cover |
| Product name | Stainless Steel Flange Cover |
| Material | SS304, SS316L |
| Size | DN10-DN800 |
| End Connection | Tri-clamp,Welding, Thread |
| Surface treatment | Ras0.8 |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Gasket | Food Grade Silicone,Viton,PTFE |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
About Delivery
About Application
Operating Principles
Plate flanges are most commonly used for joining pipes together, but they can also be used for connecting different parts of a system or even for sealing off sections where necessary.
For example, plate flanges may be used to join two metal pipes together or to connect two sections of pipe with each other. Furthermore, plate flanges can also be used to seal off an area between two pieces of metal that need to remain separate from one another.
Additionally, they can be used to join two plastic pipes together or even two sections of an air conditioning unit or heater.
Stainless Steel Flange Cover
It is a flange without a hole in the middle,which is used to seal the pipe plug.
Standard Design
Standard:ANSI B16.5,DlN2573,27,2631,DlN2576,27,2632.
BS4504111RFPN16
Size:DN10-DN800
Pressure:NPO.6-32MP2.150lb-1500lb
Forming Type:Forged.
Specification
| Item | Stainless Steel Flange Cover |
| Product name | Stainless Steel Flange Cover |
| Material | SS304, SS316L |
| Size | DN10-DN800 |
| End Connection | Tri-clamp,Welding, Thread |
| Surface treatment | Ras0.8 |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Gasket | Food Grade Silicone,Viton,PTFE |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
About Delivery
About Application
