Welded Flange with Neck Warehouse

-Connection:clamp

-Surface treatment: smooth, non-porous, easy to clean and disinfect

-Seamless connection, strong sealing, easy to clean and disassemble

Operating Principles

Plate flanges are most commonly used for joining pipes together, but they can also be used for connecting different parts of a system or even for sealing off sections where necessary.
For example, plate flanges may be used to join two metal pipes together or to connect two sections of pipe with each other. Furthermore, plate flanges can also be used to seal off an area between two pieces of metal that need to remain separate from one another.
Additionally, they can be used to join two plastic pipes together or even two sections of an air conditioning unit or heater.

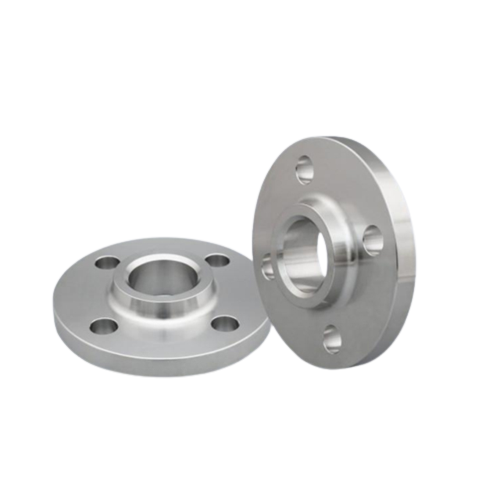

Welded Flange with Neck

The flat welded flange with a neck is also a flat welded flange, because it has a short neck,which improves the strength of the flange and improves the bearng strength of the flange.So it can be used on highe pressure pipes.

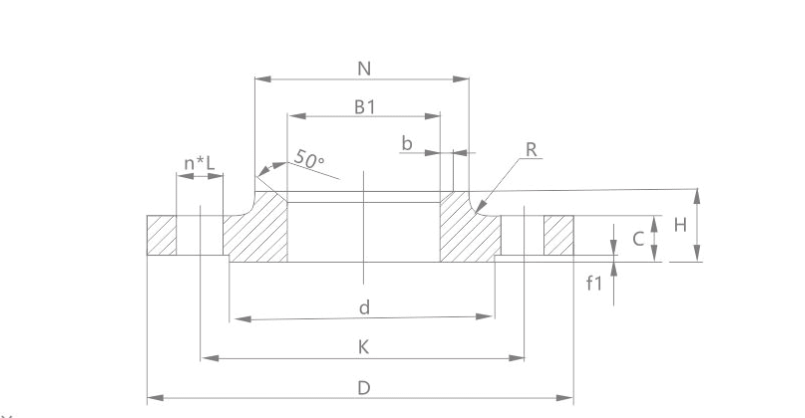

Standard Design

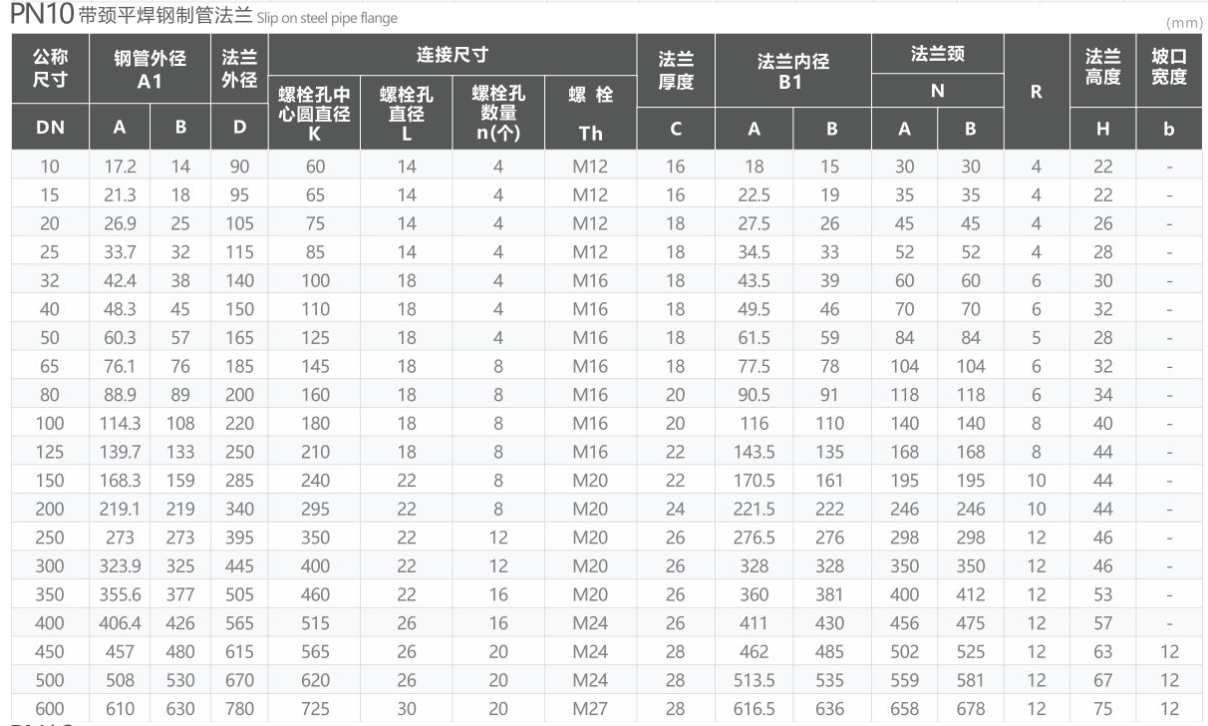

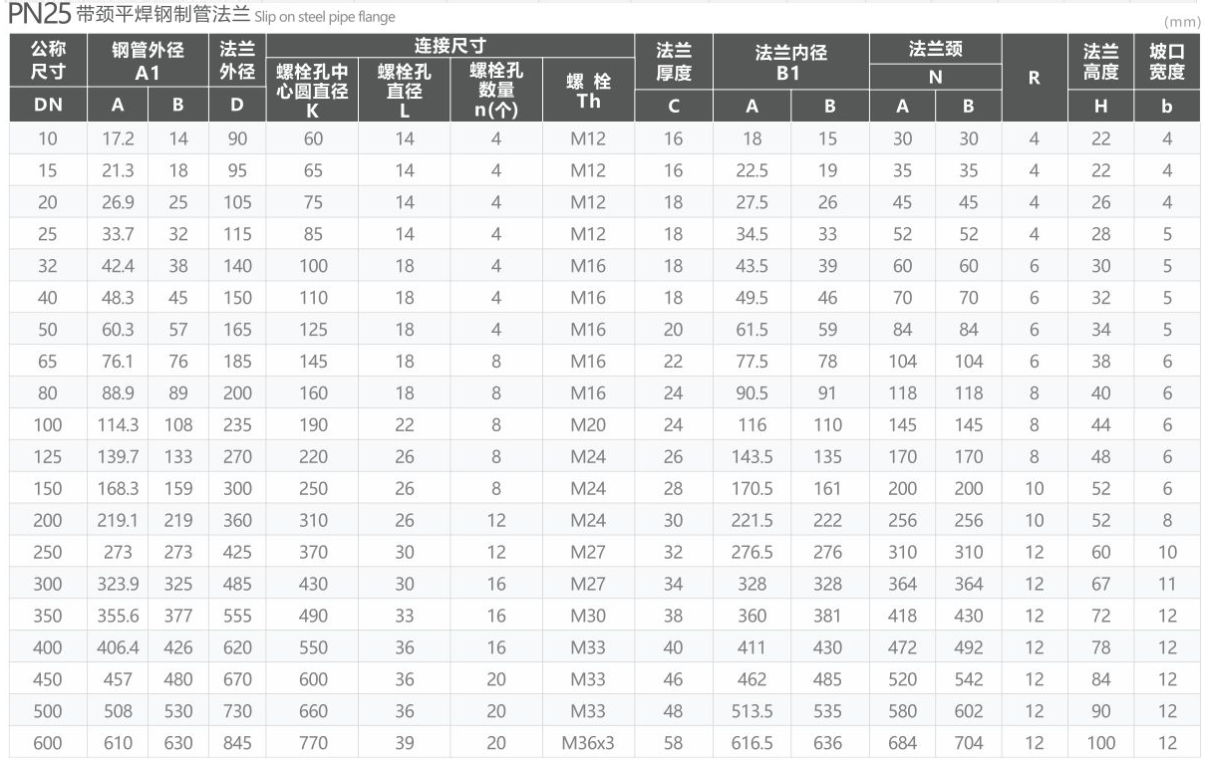

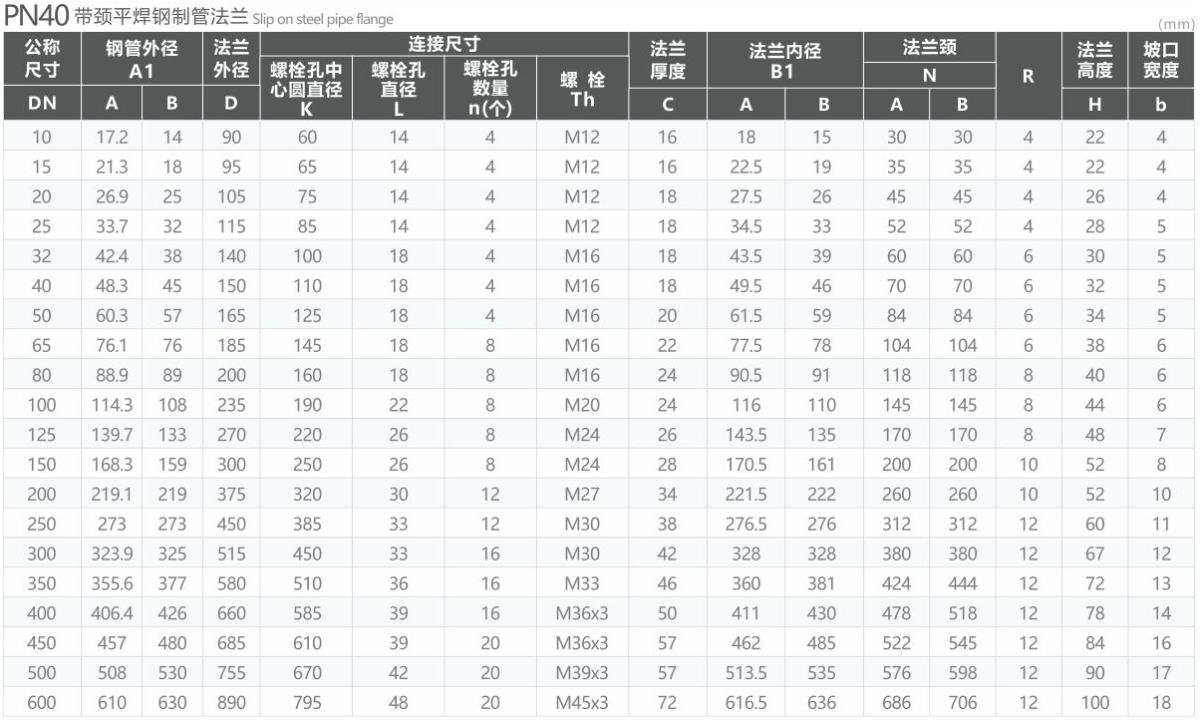

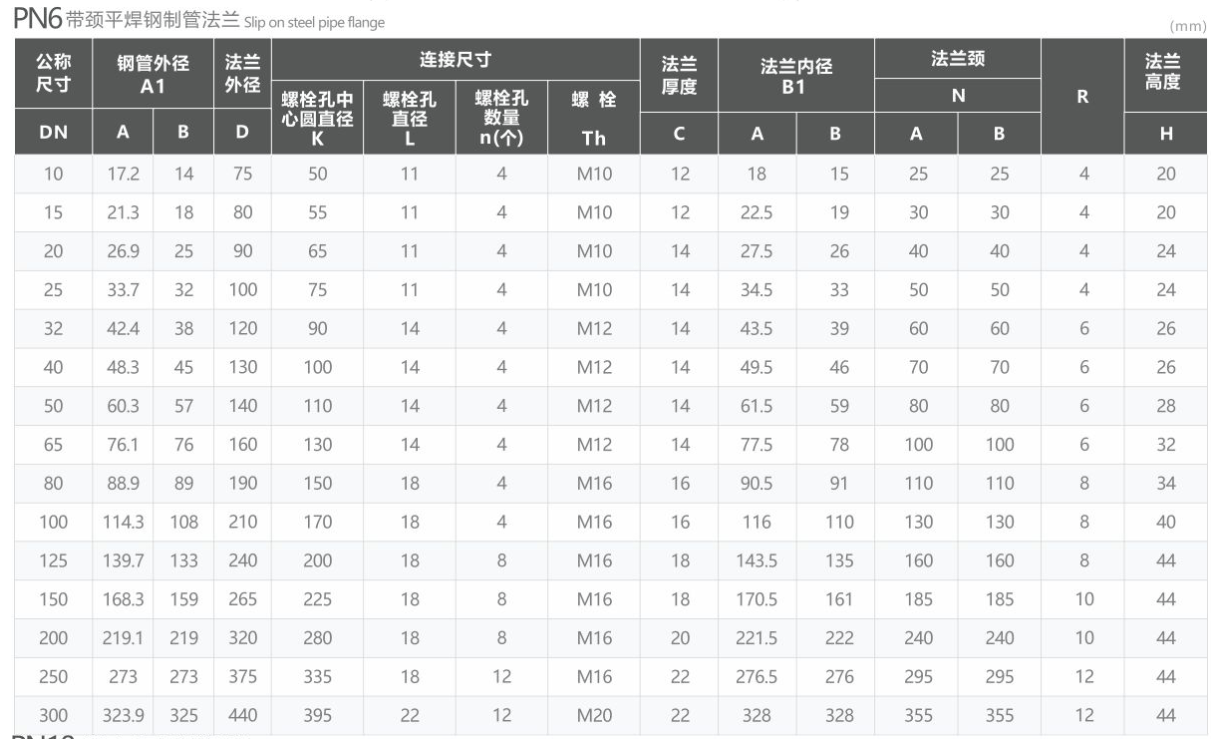

Specification

Item	Welded Flange with Neck
Product name	Welded Flange with Neck
Material	SS304, SS316L
Size	DN10-DN800
End Connection	Tri-clamp,Welding, Thread
Surface treatment	Ras0.8
Standard	3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc.
Customized support	OEM
Gasket	Food Grade Silicone,Viton,PTFE
Place of Origin	China
Certification	ISO 9001,CE,TUV,SGS
Application	Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc.
