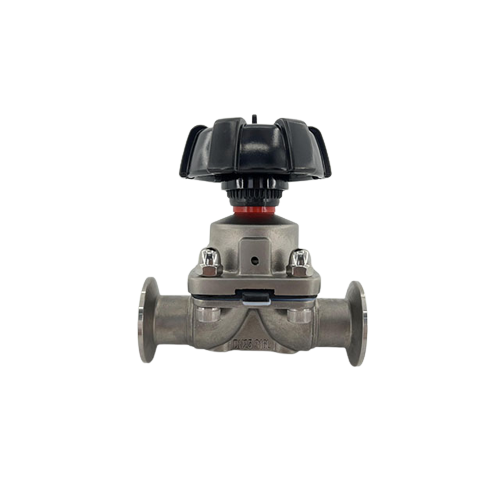

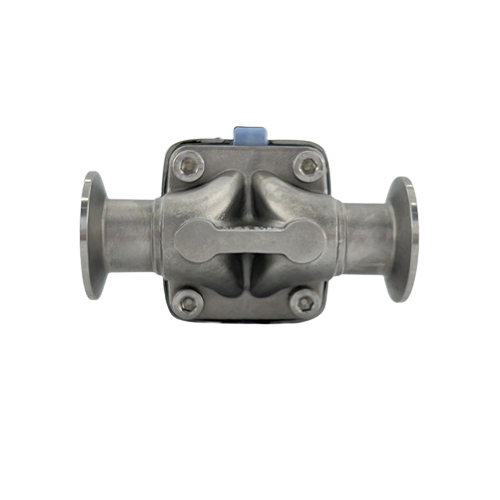

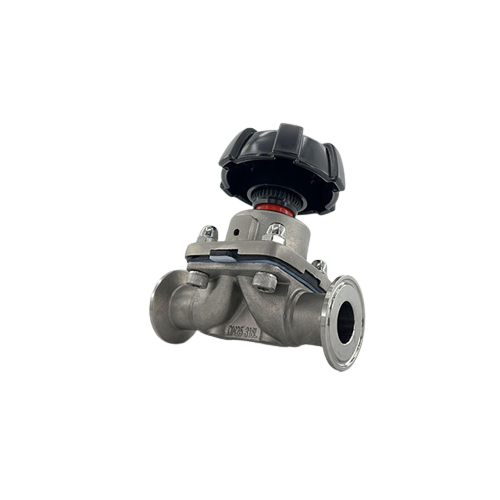

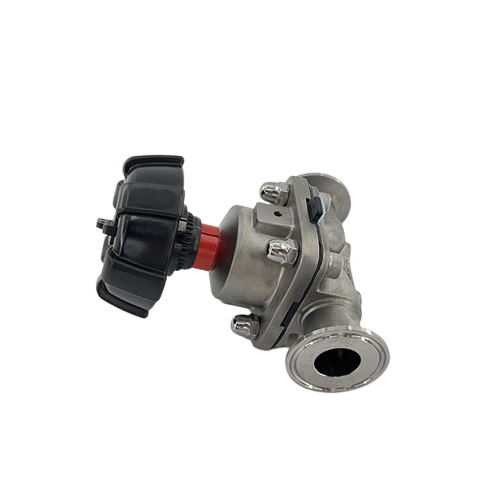

Vendor Sanitary Clamped Connection Diaphragm Valve Manufacturer

Operating Principles

• The diaphragm valves can be operated automatically through actuator or manually with the handwheel.

• The handwheel blocks the valve in the "open"or "closed"position,certainly there are the other position available.

• The closing and opening of the actuator is realized by the pressure from the pipeline acting on the reinforced rubber diaphragm.

• The diaphragm valves used in beer,beverage,dairy,fruit juice,pharmacy,bioengineering and other fields.

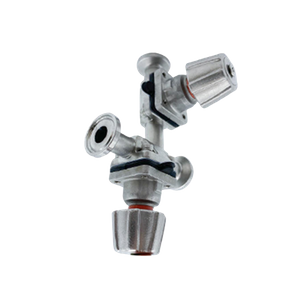

Hygienic U Type Three Way Diaphrgam Valve

• Our Sanitary Pharmacy Diaphragm Valve including Sanitary Welding Diaphragm Valve,Hygienic Clamped DiaphragmValve,Sanitary Manual Diaphragm Valve,Hygienic Pneumatic Diaphragm Valve,Sanitary 3 Way Diaphragm Valve.

• Diaphragm valves,manually or pneumatically operated,and specifically designed for use on hygienic and aseptic processes in the pharmaceutical industries.The valve is excellent for flow control as well as for open/close duties. The diaphragm valves are better in feature of flow in comparison with other valves.It is easier to clean up and better to process the substance with particles.The phenomenon of air pocket is rare during application of flow control.

• With CNC precision machining,ensure the sealing surface and fir the diaphragm valve chamber solitary degrees., reducing the diaphragm.

• Valve chamber surface finish can be mechanical or electrolytic polishing according to customer requirements. polishing face smooth reach 0.25um.

Standard Design

• Available in sizes from DN20 1"to DN100 4"

• Standard Avaliable:DIN,SMS,ISO IDF,BS RJT,ASME BPE

• Connection:weld,clamp,or others upon request

• Body type:T-type tee,U type tee,Mini type,tank bottom type,etc

Specification

Exploded View of Hygienic U Type Three Way Diaphrgam Valve

About Delivery

About Application
