FOGO

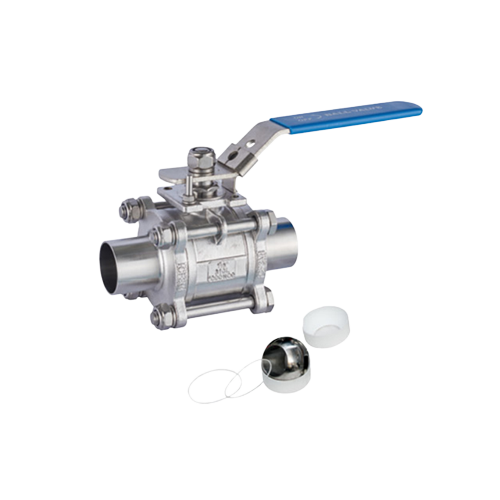

Sanitary Three-piece All-Inclusive Ball Valve
tri-clamped
ss304, ss316
1 year
Operating Principles
This kind of valve can be operated through actuator(electric pneumatic)
Actuator or manually with the hand is to revolve the axial movement unto 90degree:So than it the valve can open or close.The actuatorhave three type
Multi-position handle can use to 15 degree adjustment of valve there is 12seat to lock open or close,In that way,the valve can control the flow
Pulling handle can use to the 4 multi-function to lock open or close.In that way,the valve can control the flow.
Sanitary Three-piece All-Inclusive Ball Valve
The three-piece all-inclusive ball valve is a hygienic ball valve that is easy to install,disassemble and clean.It is used for gas,liquid and other materials.The valve range includes food,beverage and chemical industries.Full-bore and all-inclusive seals and valve design minimize fluid resistance and residue, making this valve the best choice for handling vacuum equipment or viscous fluids.
Standard Design
DIN,3A,SMS,ISO/IDF,RS/RJT,ASME/BPE,ETC

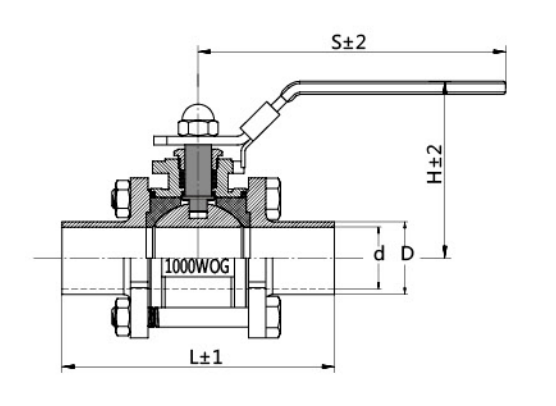

I he parts of valve usually include:Valve body which divided into two parts,the ball with through cavity,valve stem and control
sets(handle/actuator)etc.
Connection:Weld,clap,weld/clamp,etc.
Specification
| Item | Sanitary Stainless Steel Three Piece Clamped Ball Valve |
| Product name | Sanitary Stainless Steel Three Piece Clamped Ball Valve |
| Material | SS304, SS316L |
| Size | 3/4"-4" |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Gaskets | PTFE FDA 177.1550 Whatever The Connection,It Does Not Change The Total Length Of The Valve |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
