FOGO

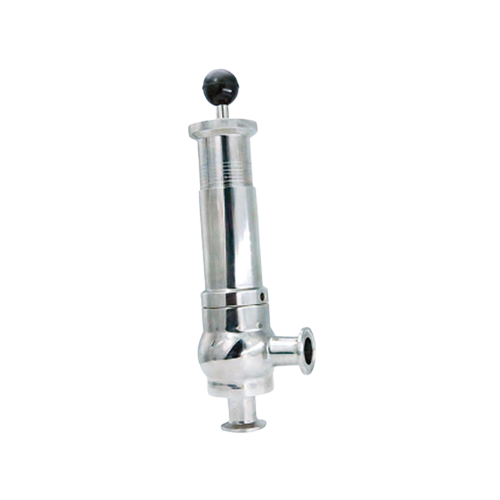

Adjustable Clamp Safety Valve
tri-clamped
ss304, ss316L
1 year
Operating Principles
Our products are widely applied to dairy,food,beer,beverage,chemical industrial of equipment,and cosmetic industries
All technical aspects have reached the international leading levels and are in conformance with GMP requirements.
Adjustable Clamp Safety Valve

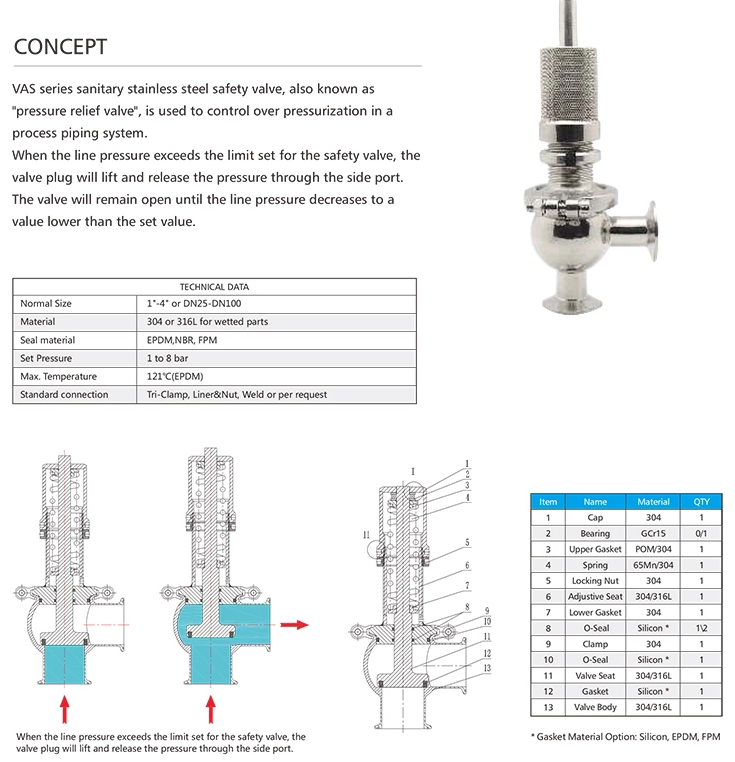

Under normal operating conditions,the valve remains closed.The specific pressure is set by adjusting the spring with the pressure nut.
When the pressure in the pipes is above the sprcific pressure,the valve becomes open automatically to make the liquid pass over in order to reduce the pressure in the pipes.
The Valve can be with handle in order to realize partial open.When the handle remains open on the operation spot,the detergent can flow though the flow valves.
Standard Design
Various standards of valves can be provided:DIN.3A.SMS.ASME.BPE.
The series of stainless steel hygienic flow division valves have two types valves,including of cut-off type and reversing types.The cut-off type can be made of two or three pipeline connector.The reversing type can be made of three to five pipeline connector.Their varety fully satisfied the demands of market.
Specification
| Item | Adjustable Clamp Safety Valve |
| Product name | Adjustable Clamp Safety Valve |
| Material | SS304, SS316L |
| Size | 1/2"-4",DN15-DN100 |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Surface | Inner Ra.0.8um or specified |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
