FOGO
Clamp Fixed Pressure Reduce Breather
tri-clamped
ss304, ss316L
1 year
Operating Principles
Our products are widely applied to dairy,food,beer,beverage,chemical industrial of equipment,and cosmetic industries
All technical aspects have reached the international leading levels and are in conformance with GMP requirements.

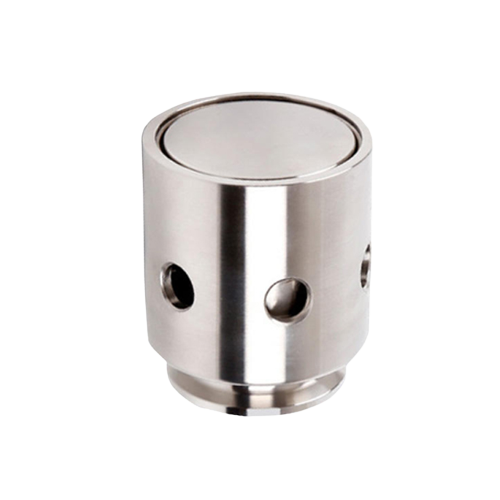

Clamp Fixed Pressure Reduce Breather
The valve is used in pressure vessel piping systems.Breathing valve has two functions,when the pressure is higher than the set pressure (standard 1 BAR)can exhaust,whereas closed,while vacuum piping system(standard 0.2 BAR)when the valve opens automatically,to ensure the safety of the equipment and related instrumentation protection,at the same time can also meet the demand in all kinds of production process,the valve in stainless steel material,health design, content with all sorts of food processing,beer,beverage and pharmaceutical and other industries
Standard Design
Various standards of valves can be provided:DIN.3A.SMS.ASME.BPE.
The series of stainless steel hygienic flow division valves have two types valves,including of cut-off type and reversing types.The cut-off type can be made of two or three pipeline connector.The reversing type can be made of three to five pipeline connector.Their varety fully satisfied the demands of market.
Specification
| Item | Tank Union Type Fixed Breather |
| Product name | Tank Union Type Fixed Breather |
| Material | SS304, SS316L |
| Size | 1/2"-4",DN15-DN100 |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Surface | Inner Ra.0.8um or specified |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
About Delivery
About Application
Operating Principles
Our products are widely applied to dairy,food,beer,beverage,chemical industrial of equipment,and cosmetic industries
All technical aspects have reached the international leading levels and are in conformance with GMP requirements.
Clamp Fixed Pressure Reduce Breather
The valve is used in pressure vessel piping systems.Breathing valve has two functions,when the pressure is higher than the set pressure (standard 1 BAR)can exhaust,whereas closed,while vacuum piping system(standard 0.2 BAR)when the valve opens automatically,to ensure the safety of the equipment and related instrumentation protection,at the same time can also meet the demand in all kinds of production process,the valve in stainless steel material,health design, content with all sorts of food processing,beer,beverage and pharmaceutical and other industries
Standard Design
Various standards of valves can be provided:DIN.3A.SMS.ASME.BPE.
The series of stainless steel hygienic flow division valves have two types valves,including of cut-off type and reversing types.The cut-off type can be made of two or three pipeline connector.The reversing type can be made of three to five pipeline connector.Their varety fully satisfied the demands of market.
Specification
| Item | Tank Union Type Fixed Breather |
| Product name | Tank Union Type Fixed Breather |
| Material | SS304, SS316L |
| Size | 1/2"-4",DN15-DN100 |
| End Connection | Tri-clamp, Welding, Threaded, Flanged etc. |
| Pressure range | 0~10Bar |
| Surface | Inner Ra.0.8um or specified |
| Standard | 3A, DIN, SMS, BS/RJT, ISO/IDF, ASME/BPE etc. |
| Gasket | PIFE, EPDM, Buna-N, Silicone, FPM etc. |
| Customized support | OEM |
| Media | Water, Oil, Gas, Air |
| Place of Origin | China |
| Certification | ISO 9001,CE,TUV,SGS |
| Application | Food, Beverage, Brewery, Diary, Pharmaceutical, Fine chemical, Cosmetic etc. |
