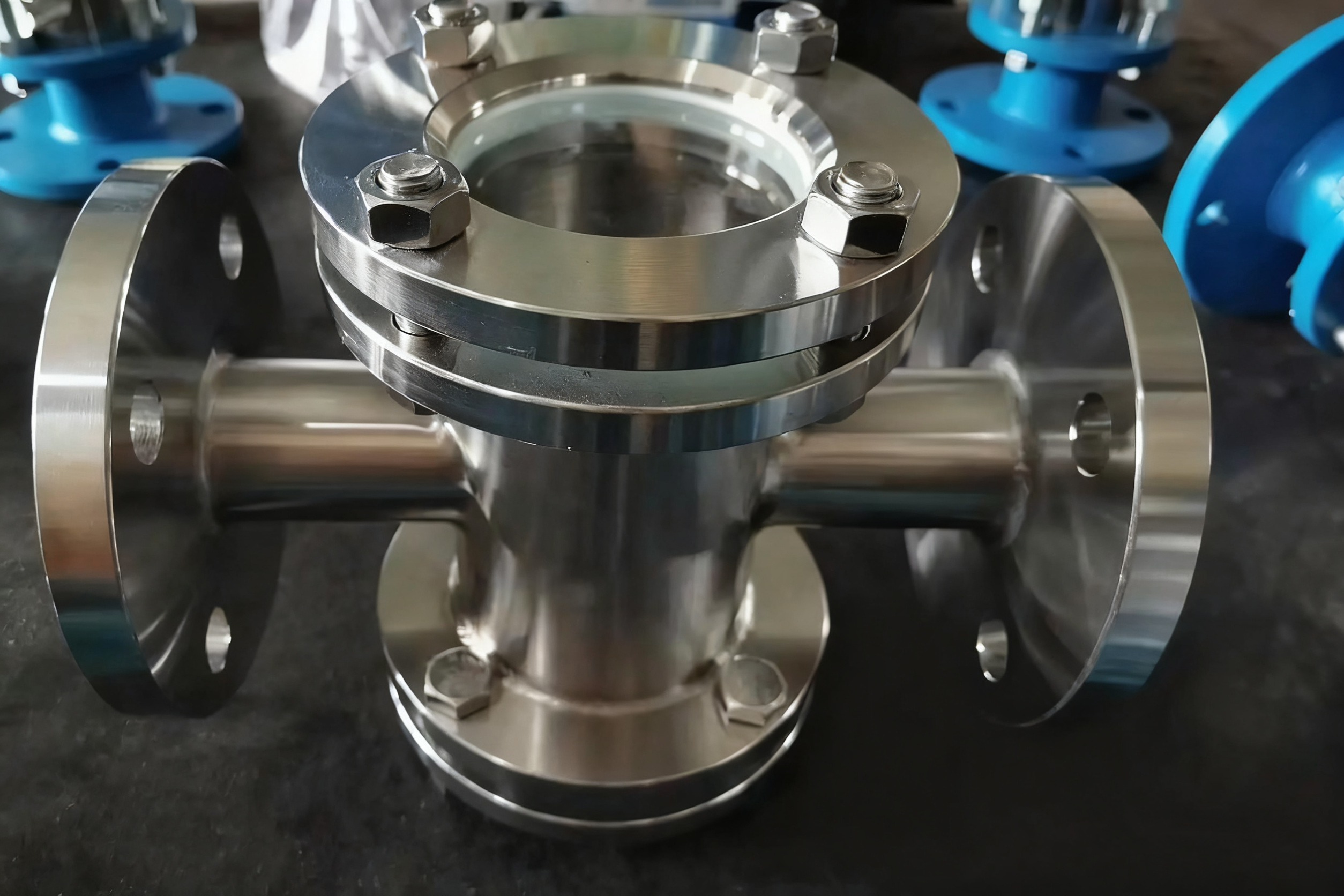

Stainless steel flange sight glasses are essential observation devices installed in piping systems to allow visual monitoring of process fluids without interrupting flow. These components combine durability and functionality, making them indispensable across various industries where process visibility is critical for quality control and operational safety.
Flange sight glasses are typically categorized based on their construction and functional features:
Standard Flange Sight Glasses
Basic models with clear glass viewing windows
Pressure ratings: ANSI 150# to 300#
Temperature range: -40°C to 200°C
Sizes: DN15 to DN300 (½" to 12")
High-Pressure Models
Reinforced design with thicker glass and heavier flanges
Pressure ratings: ANSI 600# to 900#
Temperature range: -60°C to 400°C
Typically feature double-glass construction for safety

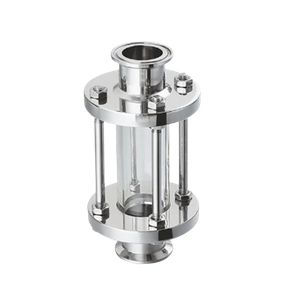

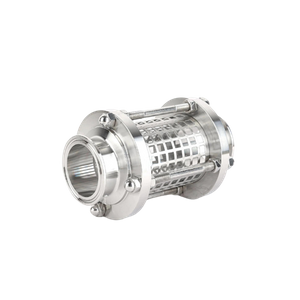

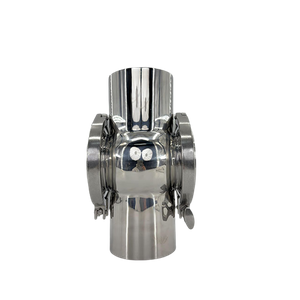

Sanitary Design Models
Polished surfaces (Ra ≤ 0.8 μm)
CIP/SIP compatible
Quick-clamp design for easy cleaning
Meets 3-A and FDA standards

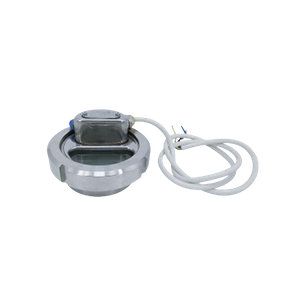

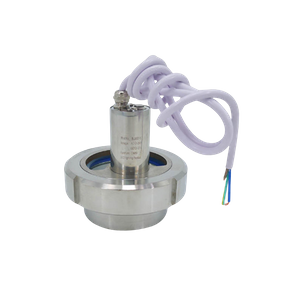

Illuminated Types
Integrated LED lighting systems
Explosion-proof options available
Continuous or intermittent operation
Chemical Processing Industry
In chemical plants, flange sight glasses provide critical visual confirmation of:
Fluid color and clarity changes
Presence of particulates or contaminants
Flow patterns and liquid levels
Catalyst activity in reactors
They are installed in reaction vessels, transfer lines, and storage systems handling acids, solvents, and aggressive chemicals. The stainless steel construction ensures corrosion resistance while the tempered glass windows withstand thermal shock and chemical attack.
Pharmaceutical and Biotechnology
Sanitary sight glasses serve vital functions in:
Fermentation process monitoring
Filling line observation
CIP verification
Sterile process validation
These applications require polished surfaces, crevice-free design, and validation documentation. The quick-clamp versions facilitate frequent disassembly for cleaning and inspection.
Food and Beverage Production
In food processing, sight glasses enable:
Product color and consistency checks
Cleaning process verification
Flow confirmation in pasteurization systems
Quality control in filling operations
Sanitary models with LED illumination are particularly valuable in low-light processing environments where visual inspection is crucial for quality assurance.
Oil and Gas Applications
High-pressure sight glasses are employed in:
Refinery process streams
Natural gas pipelines
Lubrication systems
Fuel processing units
These applications require robust construction, pressure resistance, and reliable performance in hazardous environments. Double-glass designs with safety rupture indicators provide extra protection in critical services.
Power Generation
In power plants, sight glasses monitor:
Boiler feedwater quality
Turbine lube oil condition
Cooling water flow
Chemical treatment systems
The ability to withstand thermal cycling and pressure fluctuations makes them suitable for both conventional and nuclear power applications.
Water and Wastewater Treatment
Standard sight glasses are used for:
Clarifier operation monitoring
Chemical dosing verification
Filtration process observation
Effluent quality checks
These applications benefit from the corrosion resistance of stainless steel in chlorinated and chemically treated water environments.
Choosing the appropriate sight glass requires evaluation of:
Process pressure and temperature requirements
Chemical compatibility of glass and elastomers
Sanitation requirements
Lighting conditions in installation area
Maintenance and cleaning frequency
Safety and regulatory requirements
Proper selection ensures reliable performance and longevity while providing the essential visual access needed for process monitoring and control across these diverse industrial applications.
