Stainless Steel Gate Valve Uses & Applications in Industrial Systems

      Stainless steel gate valves are fundamental components in fluid control systems, valued for their reliable shut-off capability, minimal pressure drop, and robust construction. Their design features a flat gate that moves perpendicular to the flow path, creating a tight seal when closed and offering unobstructed flow when fully open. The use of stainless steel (typically grades 304 or 316) ensures exceptional corrosion resistance, making these valves suitable for handling everything from ultrapure water to aggressive chemicals across diverse industries.

1. Water and Wastewater Treatment

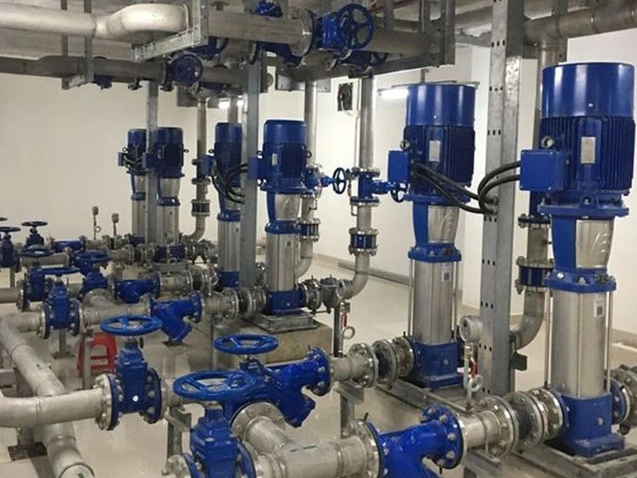

      In municipal water systems, stainless steel gate valves are installed in distribution networks, pumping stations, and filtration plants. Their full-bore design minimizes pressure loss in large-diameter pipelines, making them ideal for main isolation and flow control. The corrosion resistance of SS316 allows them to handle chlorinated water, wastewater containing organic acids, and alkaline treatment chemicals. They are also used in desalination plants, where they resist saltwater corrosion while providing precise flow control in high-pressure reverse osmosis systems.

2. Oil and Gas Industry

      Gate valves serve critical functions in upstream, midstream, and downstream operations. In oil production, they control crude oil flow at wellheads and gathering stations. Pipeline applications include block valve installations for section isolation, compressor station regulation, and tank farm management. Their pressure-rated designs (ANSI Class 150 to 2500) ensure reliability in high-pressure transmission systems, while stainless steel construction provides resistance to hydrogen sulfide (H₂S) and carbon dioxide (CO₂) in sour gas environments. Specialty designs with emergency sealing features are used in fire-safe applications.

3. Chemical and Petrochemical Processing

      Chemical plants rely on stainless steel gate valves to handle aggressive acids, solvents, and caustic solutions. They are installed in reactor feed lines, transfer systems, and storage tank outlets. The valves' wedge design ensures leak-tight closure even after prolonged exposure to high temperatures and corrosive media. For high-purity applications, low-carbon SS316L valves prevent carbide precipitation in welding zones. Flexible wedge designs accommodate thermal expansion in processes operating between -50°C to 400°C, while bellows-sealed stems prevent fugitive emissions in hazardous environments.

4. Power Generation

      Thermal and nuclear power plants utilize gate valves in boiler feedwater systems, steam isolation services, and cooling water circuits. Their ability to handle high-pressure saturated steam makes them suitable for main steam isolation applications. In nuclear facilities, valves meeting ASME Section III requirements provide reliable performance in safety-related systems. Cryogenic gate valves with extended bonnets are used in LNG regasification terminals, handling temperatures as low as -196°C while maintaining structural integrity.

5. Marine and Offshore Applications

      The marine industry depends on stainless steel gate valves for seawater cooling systems, ballast water control, firefighting systems, and fuel oil transfer operations. ASTM A351 CF8M (316 equivalent) material provides pitting resistance in chloride-rich environments, while flanged connections ensure leak-tight performance in high-vibration conditions. Specialty coatings and cathodic protection compatibility enhance longevity in offshore platforms and shipboard applications.

6. Food and Pharmaceutical Industries

      Sanitary gate valves with polished interiors (Ra ≤ 0.8 μm) and crevice-free designs serve in hygienic processing lines. While less common than ball valves, they are used in large-diameter utility lines for steam and water distribution where full-bore flow is essential. They meet FDA and 3-A sanitary standards, with material certifications ensuring compliance with pharmacopeia requirements for pure steam and WFI (Water for Injection) systems.

7. General Industrial Applications

      Manufacturing facilities use stainless steel gate valves in compressed air systems, industrial water lines, and process cooling applications. Their robust construction handles frequent cycling in demanding service conditions, while maintenance-friendly designs allow for easy repair and component replacement. The valves' ability to handle a wide range of temperatures and pressures makes them versatile solutions for various plant utility services.

Conclusion

      Stainless steel gate valves remain indispensable in industrial fluid systems due to their reliable sealing, pressure-temperature versatility, and corrosion resistance. Their simple design provides proven performance in critical isolation applications where leak-tight shutoff is required. Proper selection based on application requirements—considering factors such as pressure class, temperature rating, material compatibility, and operation frequency—ensures optimal performance and service life. As industries evolve toward more demanding processes and stricter environmental standards, stainless steel gate valves continue to adapt through material advancements and design refinements, maintaining their position as essential components in fluid handling systems worldwide.
