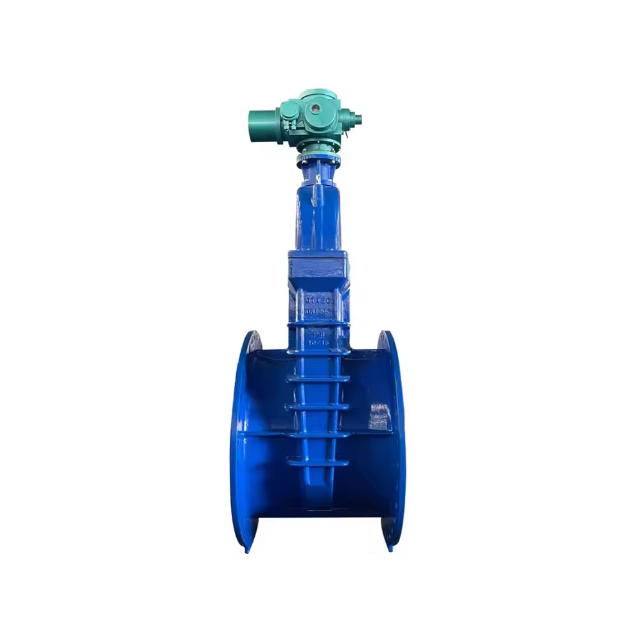

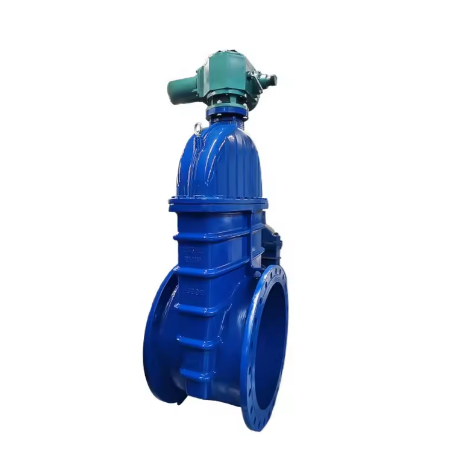

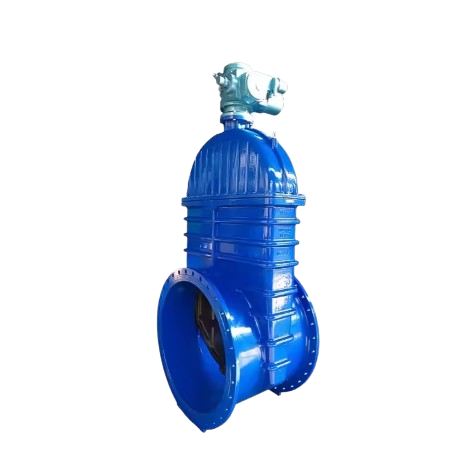

Z945X-16C Customization Hot Sale High Quality Resilient Seat Gate Valve Resilient Seated Gate Valve With Electric Actuator

Purpose and Functions:

• The large-diameter soft-sealed gate valve is made of high-quality ductile iron or carbon steel. It has the characteristics of high strength, light weight, and precise geometric dimensions. The gate plates have interchangeable functions. With the addition of a spiral bevel gear labor-saving mechanism, one person can easily It can open and close freely, and can also be equipped with opening and closing indicator columns, electric or pneumatic actuators according to user requirements. Sealed, excellent anti-rust function, safe and reliable, long service life.

• Can be installed vertically or horizontally, widely used in water systems, sewage treatment systems, municipal construction and mining, metallurgy, power plants and other industries







Design Standards:

• Design and manufacturing: CJ/T 216 ANSI C515

• Structural length: GB/T 12221 ASME B16.10

• Pressure test standard: CJ/T 216 API 598

• Side flange size: GB/T 17241.6 ASME B16.1

Valve Characteristics：

• The flat-bottomed valve seat prevents dirt from accumulating and makes the elastic seat softly seal the gate valve;

• The valve disc is entirely covered with nitrile rubber;

• The internal parts of the valve are made of stainless steel and copper alloy materials, which can be used in sewage systems to adapt to harsh working environments;

• Small size, light weight, easy to install and maintain;

• The valve stem is sealed with three O-rings, which greatly reduces the friction resistance during switching.

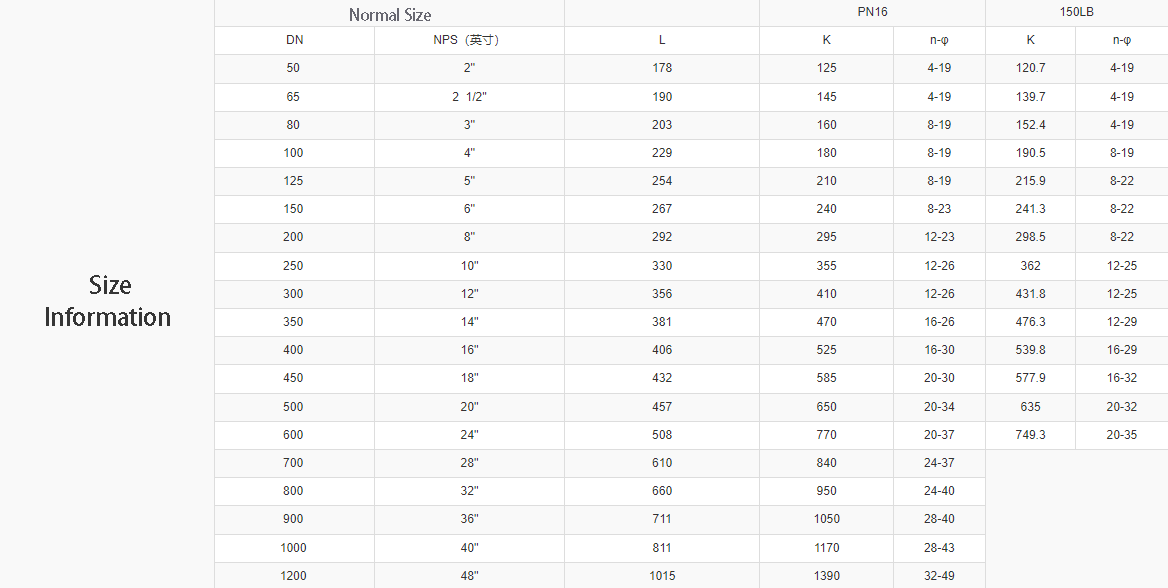

Specification

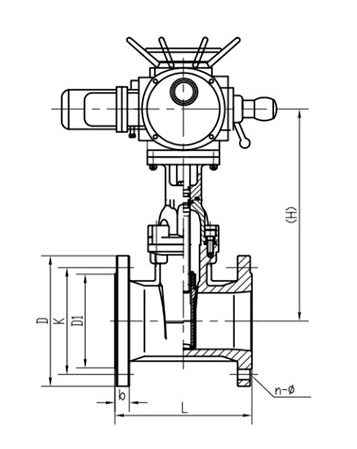

Body Type:

Main Componet information

About Delivery

About Application
